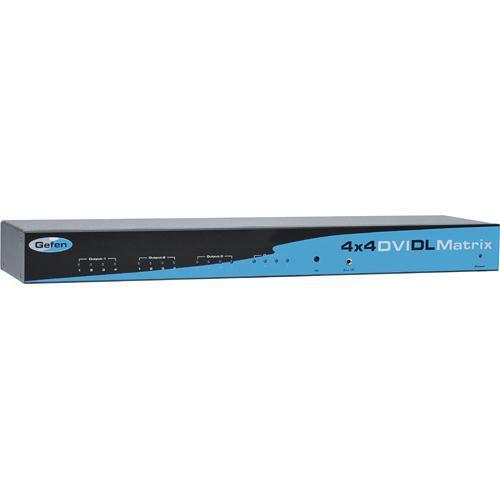

User Manual for Gefen 4x4 DVI Dual-Link Matrix Click to enlarge the picture
Contents of the user manual for the Gefen 4x4 DVI Dual-Link Matrix
- Product category: Routers & Switchers Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Routers & Switchers
 |
User manual for the Gefen 4x4 DVI Dual-Link Matrix contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description The 4x4 DVI Dual-Link Matrix from Gefen allows you to route any cross-platform dual-link DVI source to any of (4) output devices. Any input can be routed to any or all of its (4) outputs. This unit can be controlled via front-panel pushbuttons or an included IR remote control. It supports resolutions up to 3840 x 1200 and DDWG standards for DVI monitors. Furthermore, it can be used in a desktop configuration or mounted in your rack using the included rack ears. - 4x4 Matrix Dual-Link DVI Distribution
- Use this device to route any of (4) dual-link DVI input signals to any of (4) dual-link DVI outputs.
- Control

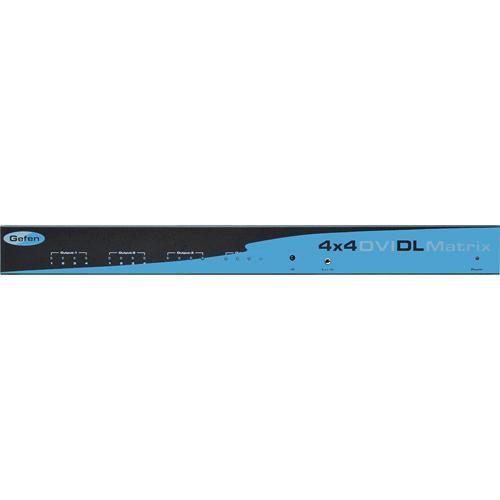

- This unit can be controlled with its front-panel pushbuttons or IR remote control.
- Resolution
- Resolutions up to 3840 x 1200 supported.
- Standalone or Rackmount
- It can be used as a desktop solution or placed in a rack with the included rack ears.
UPC: 845344053240 In the Box Gefen 4x4 DVI Dual-Link Matrix 4x4 DVI Dual Link Matrix RMT-16IR 5VDC Power Supply 4 x 6' Dual-Link DVI Cables Rack Ears User's Manual Two-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen 4x4 DVI Dual-Link Matrix in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

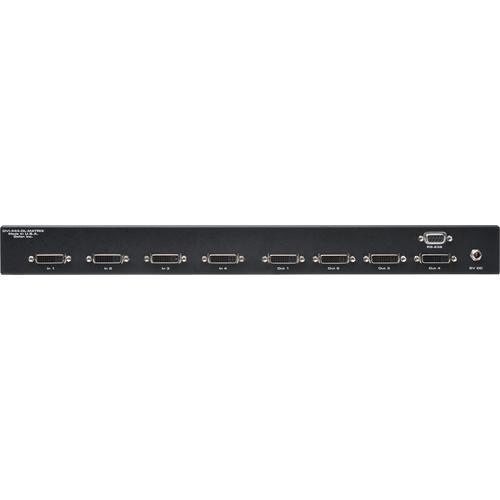

Technical parametersGefen EXT-DVI-444DL Specs | Input | (4) DVI-I 29 -in female (digital only) | | Output | (4) DVI-I 29 -in female (digital only) | | Resolution | Up to 3840 x 2400 | | Input Signal | Input Video Signal: 1.2Vp-p
Input DDC Signal: 5Vp-p (TTL) | | Frequency Range | Horizontal Frequency Range: 15 to 70KHz
Vertical Frequency Range: 30 to 170Hz | | Bandwidth | 2 x 165MHz | | Power | 5VDC, 30W maximum | | Dimensions (HxWxD) | 1.75 x 17 x 5.86" | | Weight | 10 lbs | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 18.0 x 6.0 x 4.6" |
