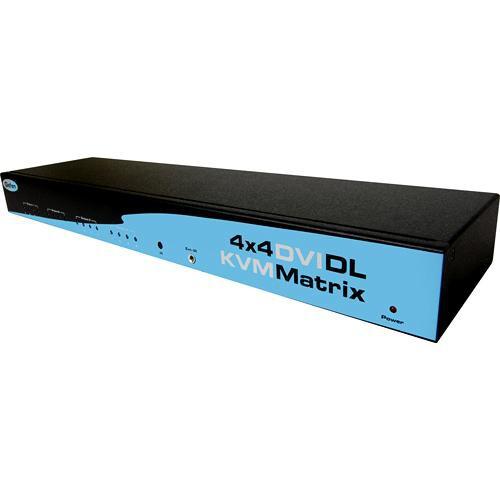

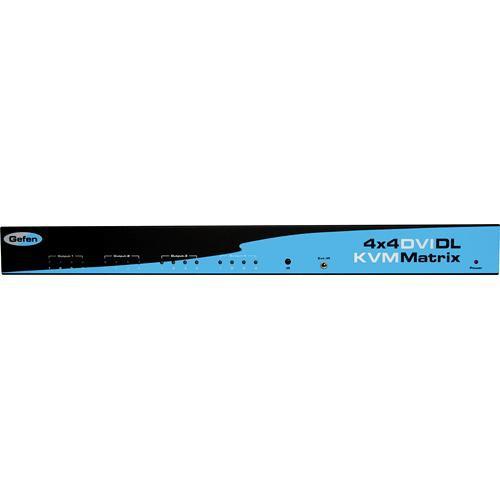

User Manual for Gefen 4x4 DVI KVM Dual-Link Switcher Click to enlarge the picture
Contents of the user manual for the Gefen 4x4 DVI KVM Dual-Link Switcher
- Product category: KVM Switches Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen KVM Switches
 |
User manual for the Gefen 4x4 DVI KVM Dual-Link Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The 4x4 DVI KVM Dual-Link Switcher from Gefen allows you to route any of (4) cross-platform DVI dual-link computers to any of (4) DVI dual-link displays. This solution allows you to set up workstations that can access any of multiple computers by remote control. The workstations can be set up locally or may be placed at great distances from the switcher by using separately available extenders. When used with computers, USB and audio matrix control signals follow the DVI dual-link input for optimal control. This device maintains resolution with no signal loss. It supports resolutions up to 3840 x 2400 and DDWG standards for DVI monitors. This unit can be managed via an included IR remote control. Furthermore, it can be used as a standalone device or mounted in a rack using the included rack ears. - DVI KVM
- Use this device to route (4) cross-platform DVI dual-link computers to any of (4) DVI dual-link displays.
- Resolution
- Resolutions up to 3840 x 2400 are supported.
- Standards
- It supports DDWG standards for DVI monitors.
- Standalone or Rackmount
- This unit can be used in a desktop or placed in a rack.
UPC: 845344026701 In the Box Gefen 4x4 DVI KVM Dual-Link Switcher 4x4 DVI KVM DL Switcher RMT-16IR 5V Power Supply 4 x 6' DVI Dual-Link Cables 4 x 6' USB Cables 2 x Rack Ears Two-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen 4x4 DVI KVM Dual-Link Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

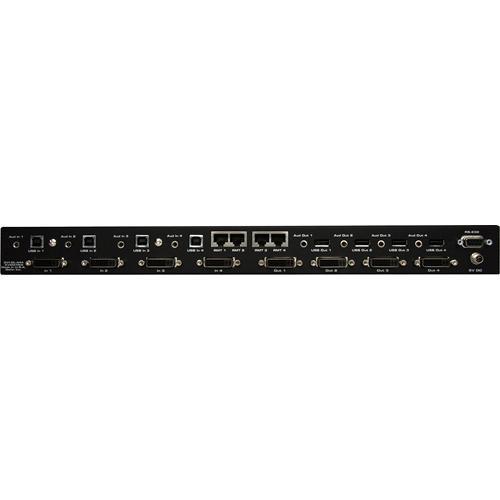

Technical parametersGefen EXT-DVIKVM-444DL Specs | | | CPU Connections | 4 x DVI-I, Female
4 x 3.5 mm
4 x USB 2.0 Type-B | | Console Connections | 4 x DVI-I, Female
4 x 3.5 mm Audio
4 x USB 2.0 Type-A | | Control Connections | 4 x RJ45
1 x DB-9 (RS232) | | Supported Resolutions | 3840 x 2400 | | | | DC Input Power | 5 VDC at 8 A | | | | Rack Form Factor | 1 RU | | Dimensions | 1.8 x 17.1 x 4.2" / 4.6 x 43.4 x 10.7 cm | | Weight | 9 lb / 4.1 kg | | | | Package Weight | 8.52 lb | | Box Dimensions (LxWxH) | 24.5 x 13.5 x 4.0" |
