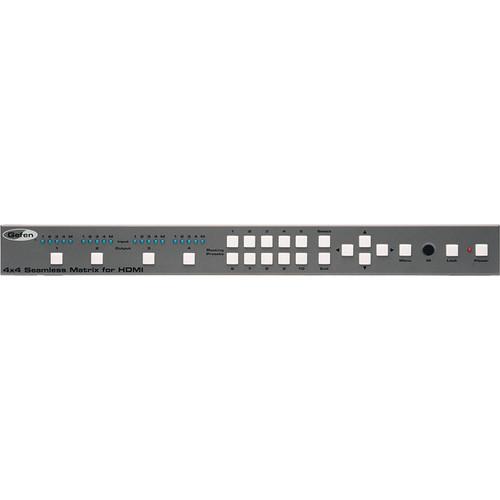

Product description The 4x4 Seamless Matrix for HDMI from Gefen allows you to display content from up to four HDMI sources on four HDTV displays. Each of the sources can be individually scaled, and seamless switching ensures no frame loss during picture transitions. The matrix is HDCP-compliant and supports resolutions up to 1080p Full HD and 1920x1200 WUXGA. The Gefen Seamless Matrix for HDMI is a ideal for small and large commercial venues that require content from four sources displayed on four displays instantly and without any loss of picture.
Ten preset buttons allow the user to store and recall custom-configured routing presets. All ten presets, source selection, power on, lock, and menu navigation control buttons are accessible via the front panel and the handheld IR remote control, as well as RS-232 and IP (web server interface, Telnet, and UDP). An intuitive on-screen Graphical User Interface simplifies system configuration. The 4x4 Seamless Matrix for HDMI includes four 6' (1.8 m) locking HDMI cables, one 6' (1.8 m) DB-9 cable, an IR extender module, IR remote control, 12 VDC locking power supply, and a set of rack ears for mounting the 1RU unit. -
- Seamless matrix scales each of its four inputs, and routes them to any or all of the four outputs without frame loss
- Input and output resolutions up to 1080p Full HD and 1920x1200 (WUXGA)
- HDCP compliant
- Seamless switching ensures no switching delay and no picture loss during transitions
- Ten user-configurable routing presets can be accessed via front panel push-buttons
- Controllable via front panel controls, IR, IP (web server interface, Telnet, and UDP), and RS-232
- Easy to use on-screen Graphical User Interface (GUI)
- Handheld IR remote control and IR Extender input on back panel
- Field-upgradable firmware via web server interface
- USB port (reserved for future product enhancements)
- Locking power supply connector
- 1U height rack-mountable enclosure, rack ears included
UPC: 845344063553 In the Box Gefen 4x4 Seamless Matrix for HDMI 6' Locking HDMI Cables DB-9 Serial Cable (M-F, 6') svsxwbba IR Extender Module IR Remote Control 12 VDC Locking Power Supply Set of Rack Ears Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen 4x4 Seamless Matrix for HDMI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-HD-SL-444 Specs | Video Input Connectors | 4 x HDMI Type A, 19-pin, female, locking | | Video Output Connectors | 4 x HDMI Type A, 19-pin, female, locking | | RS-232 Connector | 1 x DB-9, female | | IP Connector | 1 x DB-9, female | | USB Connector | 1 x Mini-B | | IR Extender Connector | 1 x 3.5mm stereo mini-phone jack (for use with Gefen IR Extender Module) | | Buttons | User-configurable routing presets selector buttons:
10 x tact-type, blue backlight
Input/Window selector buttons:
4 x tact-type, blue backlight
Menu button:
1 x tact-type, blue backlight
Menu navigation buttons:
6 x tact-type
On/Standby button:
1 x tact-type, blue backlight | | Indicator Lights | Input indicators:
20 x LEDs, 5 per window, blue
Standby indicator:
1 x LED, red | | Power Supply | 12 VDC, locking | | Power Consumption | 24 W (maximum) | | Dimensions (W x H x D) | 16.9 x 1.7 x 7.9" (43.0 x 4.2 x 20.0 cm) | | Weight | 7.0 lb (3.2 kg) | | | | Package Weight | 9.45 lb | | Box Dimensions (LxWxH) | 19.843 x 12.205 x 4.803" |
