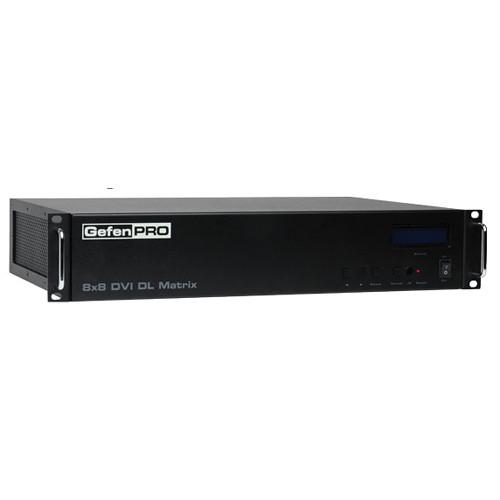

Product description The 8x8 GefenPRO DVI KVM Dual Link Matrix Router from Gefen features front panel push button control, and enables you to route DVI, USB, and Audio content from any 8 computers to any 8 Hi-Def workstations. It supports dual link resolutions up to 3840 x 2400. Audio can also be routed along with the video using mini-stereo cables to provide full multimedia content for digital signage applications. The front panel display shows the current routing status and the front panel push buttons can be used to manage local source routing. Additionally, it also supports independent audio routing, which allows audio to be routed separately from the video.Each source can be controlled from any workstation by using the front panel push buttons, an included IR remote, the RS-232 interface, Telnet, or by using the IP control via the built-in Web interface, or the Gefen Keyboard Controller software (sold separately). Note: This product only supports digital DVI (DVI-D). - Supports resolutions up to 3840 x 2400
- Advanced EDID management permits upload of custom internal or external EDID settings
- Front panel control buttons for local switching
- Programmable routing presets
- Independent audio routing
- User-defined input and output naming
- Supports DDWG standards for DVI
- Status LCD shows routing status
UPC: 845344073927 In the Box Gefen 8x8 GefenPRO DVI KVM Dual Link Matrix Router with Push Button Control 8 x 6' (1.83m) DVI Dual Link Cable (Male to Male) 8 x 6' (1.83m) Mini-Stereo Audio Cable 8 x USB Cable A to B (6') eyftfbwbbuauexfstqyc RMT-8IR IR Remote for 8-input Matrixes AC Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen 8x8 GefenPRO DVI KVM Dual Link Matrix Router with Push Button Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen GEF-DVIKVM-848DL-PB Specs | Video Amplifier Bandwidth | 2 x 165 MHz | | Input Video Signal | 1.2 Vpp | | Input DDC Signal | 5 Vpp (TTL) | | Connectors | DVI Input: 8 x DVI-I 29-pin female
DVI Output: 8 x DVI-I 29-pin female
USB Input: 8 x USB 2.0, Type B
USB Output: 16 x USB 2.0, Type A
Audio Output: 8 x 3.5 mm mini-stereo
Audio Input: 8 x 3.5 mm mini-stereo | | Frequency Response | < 0.1 dB 20 Hz to 100 kHz | | THD | 0.002% @ 20 kHz | | IR Extender | 3.5 mm mini-stereo | | Interface | RS-232: DB-9, female
IP: RJ-45 | | Power Supply | 100 to 240 VAC (IEC connector) | | Power Consumption | 70 W, maximum
Standby Mode: 600 mW | | Temperature | Operating: 32 to 113˚F (0 to 45˚C)
Storage: -4 to 140°F (-20 to 60°C) | | Humidity Range | 20 to 90% RH (no condensation) | | Power Consumption (Standby) | 600 mW | | Rack Size | 2U | | Dimensions (W x H x D) | 19.0 x 3.5 x 4.2" (482.6 x 88.9 x 106.7 mm) | | | | Package Weight | 31.35 lb | | Box Dimensions (LxWxH) | 22.1 x 17.3 x 11.3" |
