Product description - Wireless Extender for HDMI 5GHz Short Range

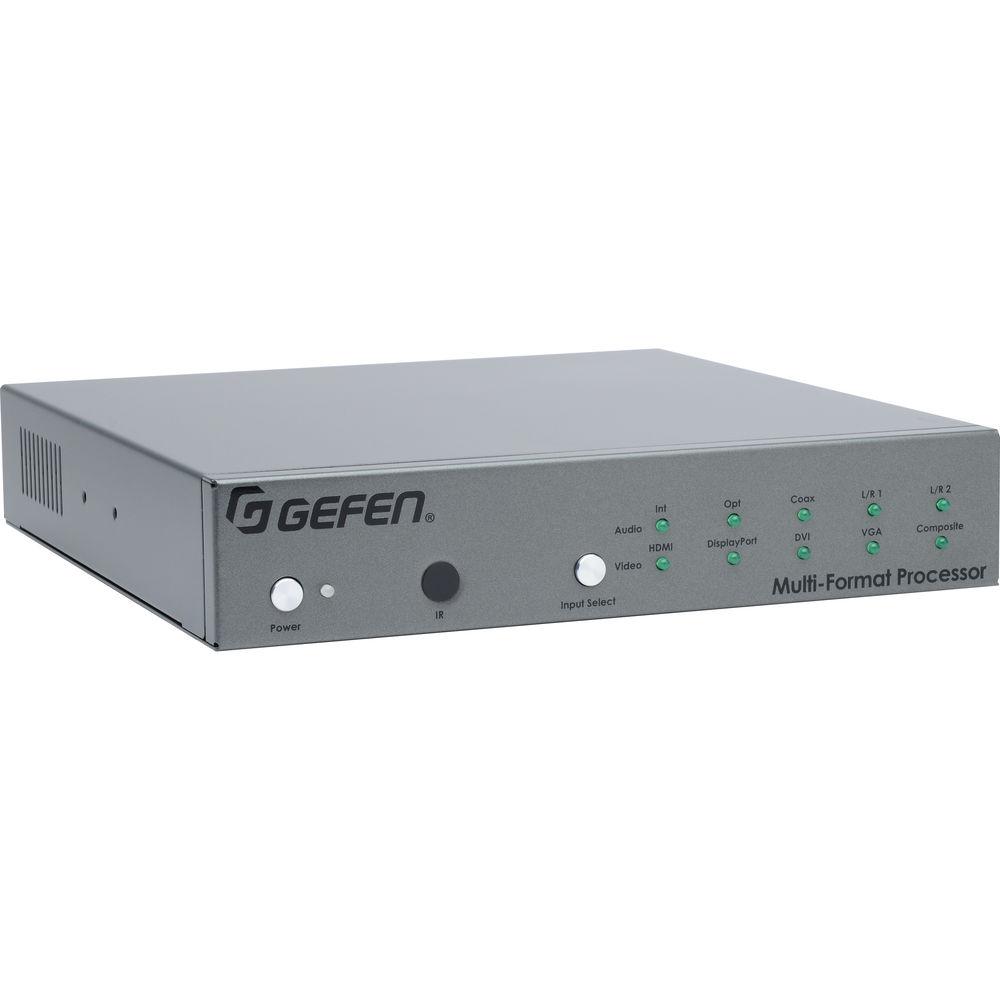

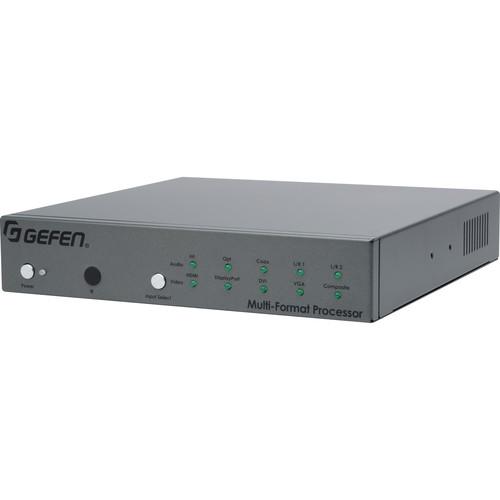

The Gefen Audio/Video Multi-Format Processor is a compact presentation switcher with format conversion and scaling abilities. This processor supports input and output resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA) and is HDCP compliant. It features a web server interface, an On Screen Display (OSD), IP (Telnet and UDP) control, RS-232 control, IR control, and independent password-protected user and administrator access. It also has advanced EDID management, a variety of video inputs, independent and configurable audio and video routing, input selection via contact closure, assignable input naming, and a compact form factor that can be either surface or rack mounted, or placed on a shelf. The Multi-Format Processor is fully compatible with the Gefen Syner-G software, including Discovery, Show-Me, and IP configuration. Use this multi-format processor as a complete solution for managing video and audio in classrooms, conference rooms, command centers, and any high performance system that needs to interface with multiple sources, AV formats, and resolutions in a dynamic environment. - Independent and configurable audio and video routing
- Supports input and output resolutions up to 1080p Full HD & 1920 x 1200 (WUXGA)
- HDMI, DisplayPort, DVI, VGA, and composite video inputs
- DisplayPort input is compatible with Mac and PC computers
- TOSLINK optical digital, S/PDIF coaxial digital, and two analog L/R audio inputs
- Each audio source can be independently assigned to any video source
- Audio sources can be temporarily switched away from their assigned video sources
- On-screen display (OSD) menu and web server interface allow easy set-up & control
- IP control via Telnet, UDP, and web server interface
- RS-232 serial interface for use with an automation control system
- Independent IR control of up to four units in proximity, using distinct command sets
- Password-protected user and administrative access
- Advanced EDID management for rapid integration of sources and displays
- System configuration upload/download function
- Plug-and-play installation with little to no set-up
- USB Mini-B port for use with Gefen Syner-G (sold separately)
- Locking power supply connector
- Rack-mountable using EXT-RACK-1U-GRY (sold separately)
- Surface-mountable using the included L-brackets
UPC: 888814569049 In the Box Gefen Audio/Video Multi-Format Processor 6-Pin Phoenix Plug 2 x L-Shaped Brackets for Surface Mounting 4 x Mounting Screws for L-Shaped Brackets 2 x Mounting Screws for EXT-RACK-1U-GRY 4 x Self-Adhesive Rubber Feet IR Remote Control 12 VDC Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen Audio Video Multi-Format Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

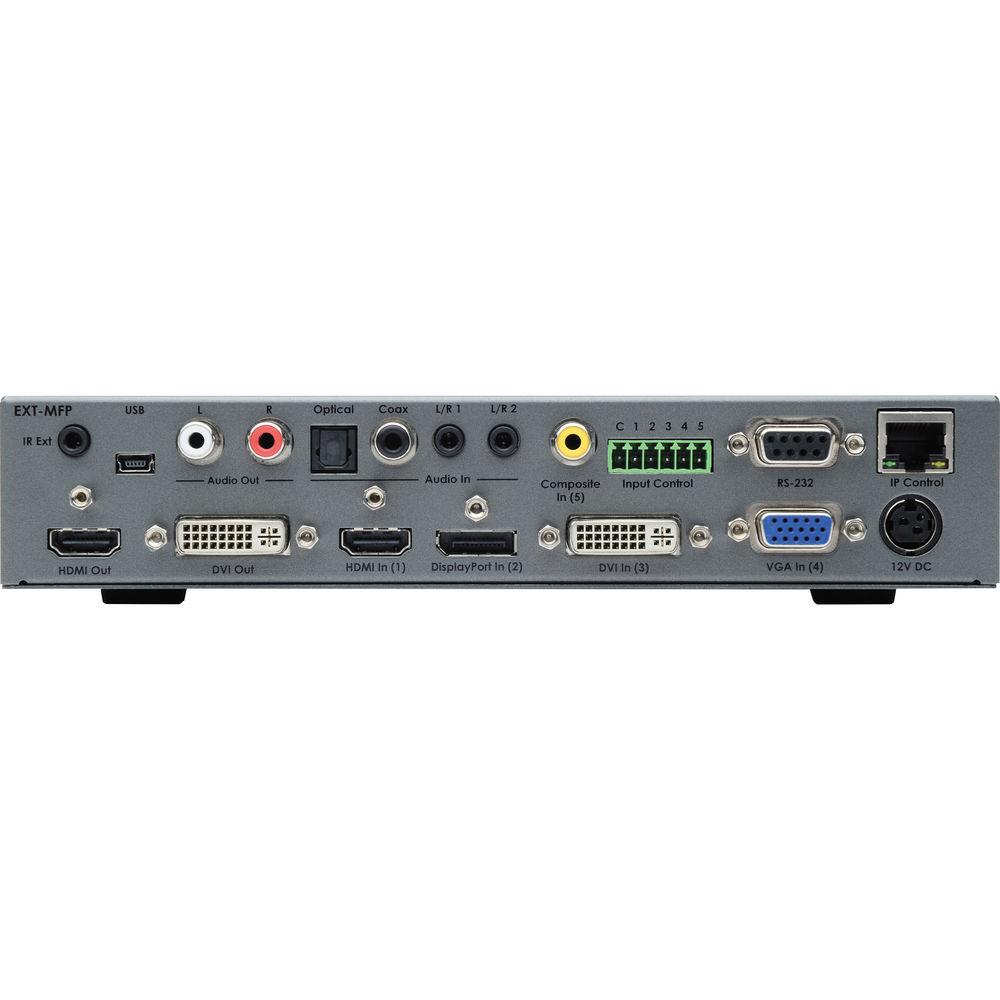

Technical parametersGefen EXT-MFP Specs | Maximum Pixel Clock | 165 MHz | | TMDS Clock Frequency | 225 MHz | | Connectors | Video Input Connectors:
1 x 19-pin female locking, HDMI Type A
1 x 20-pin female, DisplayPort
1 x 29-pin digital only female, DVI-I
1 x 15-pin Sub-D female, VGA
1 x RCA female, composite
Video Output Connectors:
1 x 19-pin female locking, HDMI Type A
1 x 29-pin female digital only, DVI-I
Audio Input Connectors:
2 x 3.5 mm mini-stereo jack
1 x TOSLINK optical, female
1 x S/PDIF Coaxial, RCA-type, female
Audio Output Connectors: 2 x RCA
USB Connector: 1 x Mini-B
IR Extender Port: 1 x 3.5 mm mini-stereo jack
Input Selection Contact Closure Connector: 6-pin Phoenix quick-disconnect
IP Port: 1 x RJ-45 jack
RS-232 Port: 1 x DB-9, female
Power Supply Connector: 1 x 3-pin, locking | | IR | IR Sensor on front panel
IR Extender Type: EXT-RMT-EXTIRN (sold separately) | | Controls | Input Select Button: 1 x tact-type

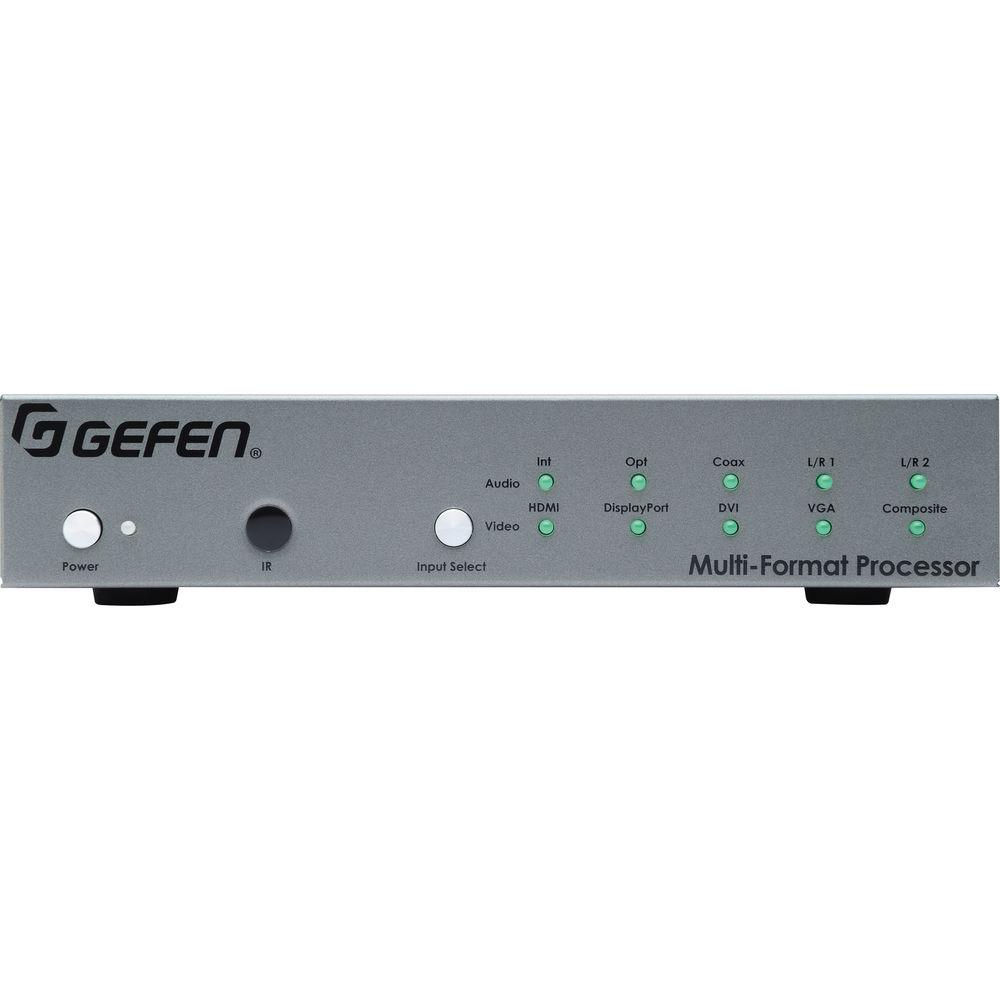

Power/Stand-by Button: 1 x tact-type | | Indicators | Power/Standby Indicator: 1 x bi-color LED, blue/red
Video Input Indicators: 5 x LEDs, green
Audio Input Indicators: 5 x LEDs, green | | Power Supply | 12 VDC | | Power Consumption | 8.5 W maximum | | Operating Temperature | +32 to +122°F (0 to +50°C) | | Operating Humidity | 5 to 90% RH, non-condensing | | Storage Temperature | -4 to +185°F (-20 to +85°C) | | Storage Humidity | 0 to 95% RH, non-condensing | | MTBF | 50,000 hours | | Dimensions | 8.4 x 1.6 x 8.5" (213 x 41 x 216 mm), excluding buttons and connectors | | Weight | 3.2 lb (1.5 kg) | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 14.2 x 11.8 x 3.8" |
