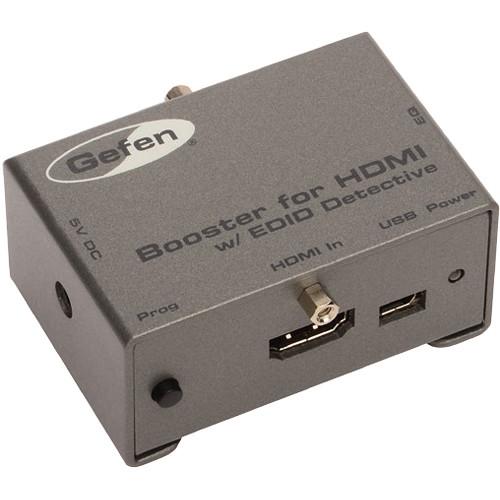

Product description The Gefen Booster for HDMI with EDID Detective extends HDMI up to 150' at 1080p full HD and up to 115' at 4K x 2K ultra HD resolution, using standard copper HDMI cables. HDTV and Ultra HD displays use EDID (Extended Display Identification Data) to ensure that a connected Hi-Def source sends compatible audio and video signals. In some scenarios, this data can be lost, resulting in an incorrect signal or complete loss of audio and/or video. With DDC re-clocking technology, the reliability of HDCP handshaking is improved, ensuring that the Hi-Def source always receives the correct EDID. The booster-detective has been designed for quick and easy programming and installation. - Extends copper HDMI cables up to 150' at 1080p full HD, and up to 115' at 4K x 2K Ultra HD
- USB port for advanced programming of features such as video equalization, pre-emphasis, and EDID management
- Configurable and controllable using Gefen EDID tool+ software
- EQ adjustment for best results with varying cable types and lengths
- Can record the EDID from a display
- 6 pre-programmed EDID profiles
- 6 user-programmable EDID banks for copying/uploading EDIDs
- Selectable HDCP pass-through
- Field updatable firmware via USB port
UPC: 845344042626 In the Box Gefen Booster for HDMI with EDID Detective High-Speed HDMI Cable with Ethernet and Mono-LOK (1') ecbduxewczvttedvbvcbay USB Mini-B to Type A Cable 5V DC 2.6A Power Supply with US, UK, EU Connectors & Long Plug Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen Booster for HDMI with EDID Detective in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-HDBOOST-141 Specs | Resolutions Supported | Up to ultra HD 4K x 2K (3840 x 2160 @ 30 Hz), 1080p full HD, and 2048 x 1536 (QXGA) | | Maximum | Pixel Clock: 340 MHz | | Video Input Connector | HDMI type A 19-pin, female, locking | | Video Output Connector | HDMI type A 19-pin, female, locking | | USB Port | Mini-B | | EDID | Memory Size: 256 Bytes
Write Protect Switch: 1 x slide-type
Program Button: 1 x tact-type
Programming Switches: 3 x DIP-type | | HDCP Pass Through | DIP-type | | Level | EQ Level Switch: 8-position rotary-type | | Power Supply | 5 V DC | | Power Consumption | 5 W | | Dimensions | 2.7 x 1.3 x 1.8" (68 x 33 x 46 mm) | | | | Package Weight | 1.07 lb | | Box Dimensions (LxWxH) | 9.45 x 6.3 x 2.95" |
