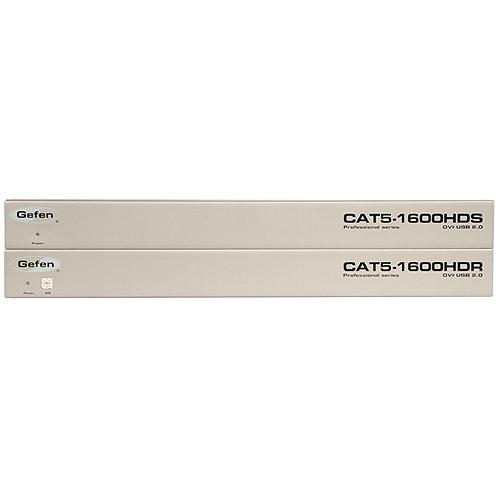

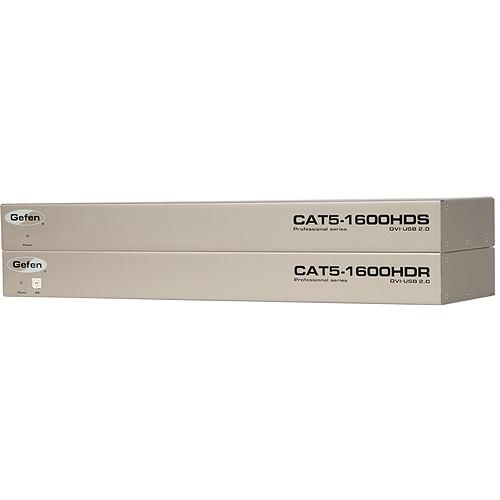

Product description The Gefen CAT5-1600HD KVM Extender transmits 1920 x 1200 video signals from your home theater's DVI and USB 2.0 peripherals up to 200 feet from a computer or other video source. With the receiver's built-in 4-port USB 2.0 hub, you'll have complete computer access control up to 150 feet away, as well as backwards compatibility with older USB 1.1 devices. Using affordable CAT5e/6 cables (one for DVI, the other for USB) to connect transmitter to receiver, the extender represents a flexible and innovative solution for home theater and small commercial applications. Note: This unit supports digital DVI-D only, not analog DVI-A. -
- Extends any DVI compliant device up to 200 ft (60m) from the computer at 1920 x 1200
- Extends USB 2.0 compliant devices up to 300 ft
- DVI is transmitted digitally for zero signal loss over CAT5 cable
- Supports video resolutions up to 1080p and 1920 x 1200
- HDCP compliant for viewing of copy-protected video content (e.g., Blu-ray)
- Supports DDWG standard for DVI compliant monitors
- Supports legacy USB 1.1 devices
- Includes rack ears
UPC: 845344068763 In the Box Gefen CAT5-1600HD KVM Extender CAT5-1600HD-S Sender CAT5-1600HD-R Receiver 6' DVI to DVI Cable 6' USB 2.0 Cable 2 x 5VDC Power Supply Set of Rack Ears User's Manual 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen CAT5-1600HD KVM Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

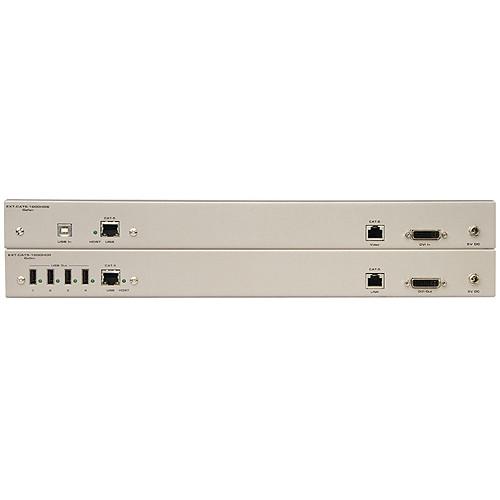

Technical parametersGefen EXT-CAT5-1600HD Specs | | | Ports | Transmitter:
1 x DVI-I Female (Input)
1 x USB Type-B USB 2.0 (Input)
2 x RJ45 Ethernet (Output)
Receiver:
2 x RJ45 Ethernet (Input)
1 x DVI-I (Output)
4 x USB Type-A USB 2.0 (Output) | | Supported Resolutions | 1920 x 1200 @ 60 Hz | | | | Bandwidth | 165 MHz (Video) | | Signal Level | 1.2 Vp-p (Video) | | | | DC Input Power | 5 VDC at 4 A | | Power Consumption | 20 W | | | | Dimensions | 17.0 x 4.4 x 1.8" / 43.0 x 11.0 x 5.0 cm | | | | Package Weight | 7.2 lb | | Box Dimensions (LxWxH) | 19.4 x 12.5 x 4.8" |
