Product description Provided by third party: Gefen's AV over IP solutions continue tradition of providing high performance, scalable, expandable, and secure AV routing and distribution over a standard Gigabit Local Area Network. The Digital and Analog Audio over IP Sender (EXT-ADA-LAN-TX) and Receiver (EXT-ADA-LAN-RX) are new additions to Gefen's family of AV over IP products, offering a much-needed audio-only option for background music, public announcements, and other applications where stand-alone audio needs to be distributed through the AV system. Audio input and output options include L/R Analog, Coaxial Digital, and Optical Digital. When using the digital inputs and outputs, 2-channel PCM and up to 5.1 channels of Bitstream can be distributed through the system. In addition to audio, RS-232 and 2-way IR can also be independently routed and distributed for source and amplifier control. The entire Gen 2.0 product line, including the audio models, feature backward-compatibility with Gefen's first-generation products.
- Key Features
-
- Extends digital and analog audio, RSZ-232, and IR, using a Gigabit Local Area Network
- Independent audio, RS-232, and IR routing
- Backward-compatible with first generation Gefen AV over IP products
- Analog L/R, Coaxial Digital, and Optical Digital Inputs and Outputs
- MFU (Mass-Firmware-Update), quick and automated configuration, and enhanced control capabilities and system security when used with the Gefen EXT-CU-LAN Matrix Controller
- Enhanced API for added functionality with third-party control systems
- Built-in web interface, Telnet, and UDP
- Supports 39,900 Senders and a combination of over 65,000 Sender and Receiver units, depending on the network bandwidth and number of ports on your network switch
- 802.3af standard Power-over-Ethernet allows the new Sender and Receiver units to be powered through a standard PoE-enabled IP network switch, without the need for external power supplies
- Two-port Gigabit Ethernet switch built into the Receiver unit
- Field-updatable firmware via EXT-CU-LAN controller or the built-in web server interface
- Locking power supply connectors
- Low-profile, half-rack width Sender and Receiver enclosures are rack-mountable using EXT-RACK-1U-GRY
- Sender and Receiver can also be surface-mounted using the included L-brackets
- Low profile Receiver enclosure features an IR Extender port and can be hidden away behind the display
Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen Digital Analog Audio Over IP Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

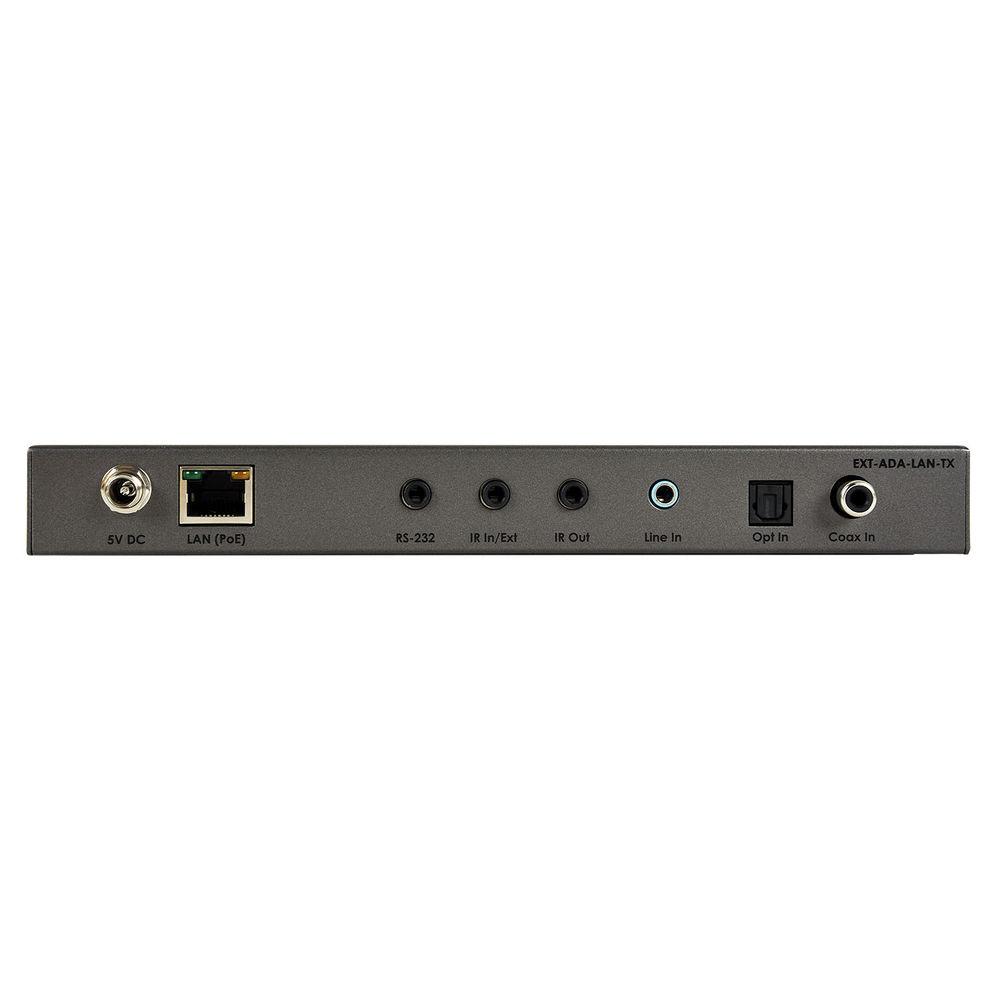

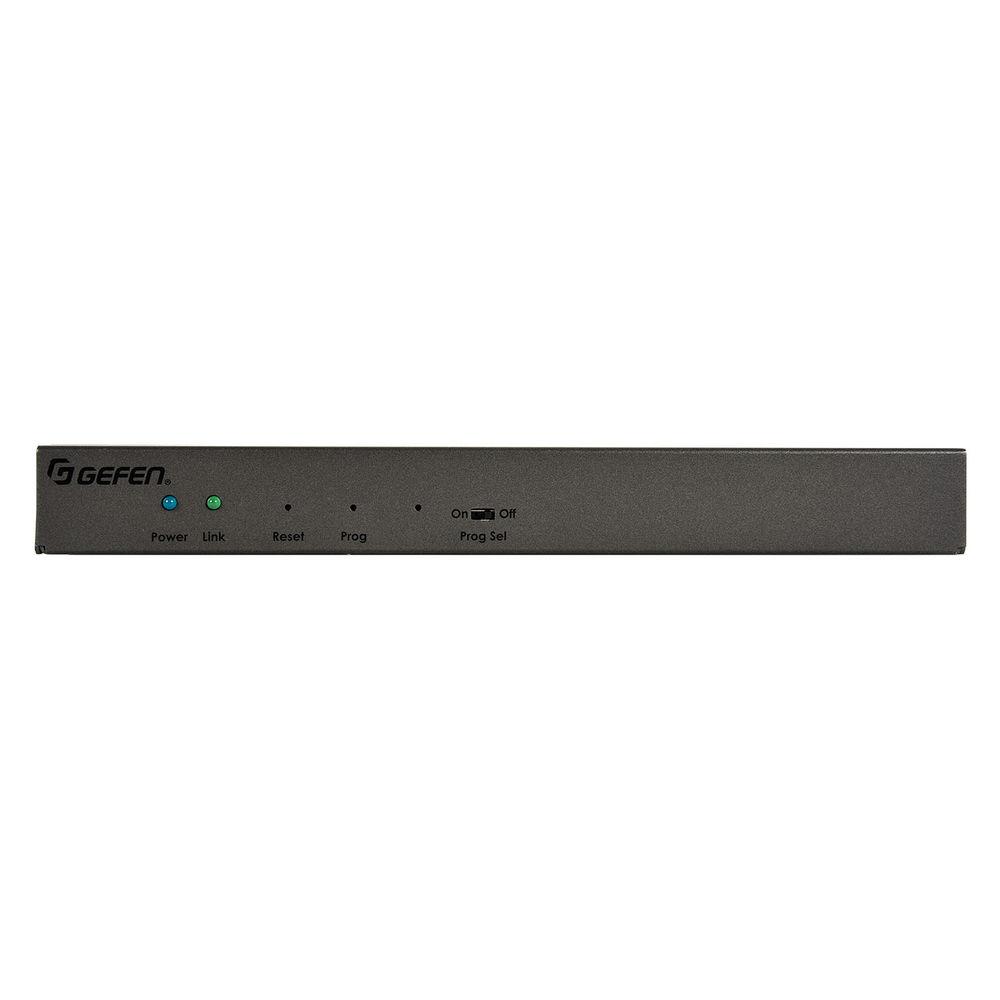

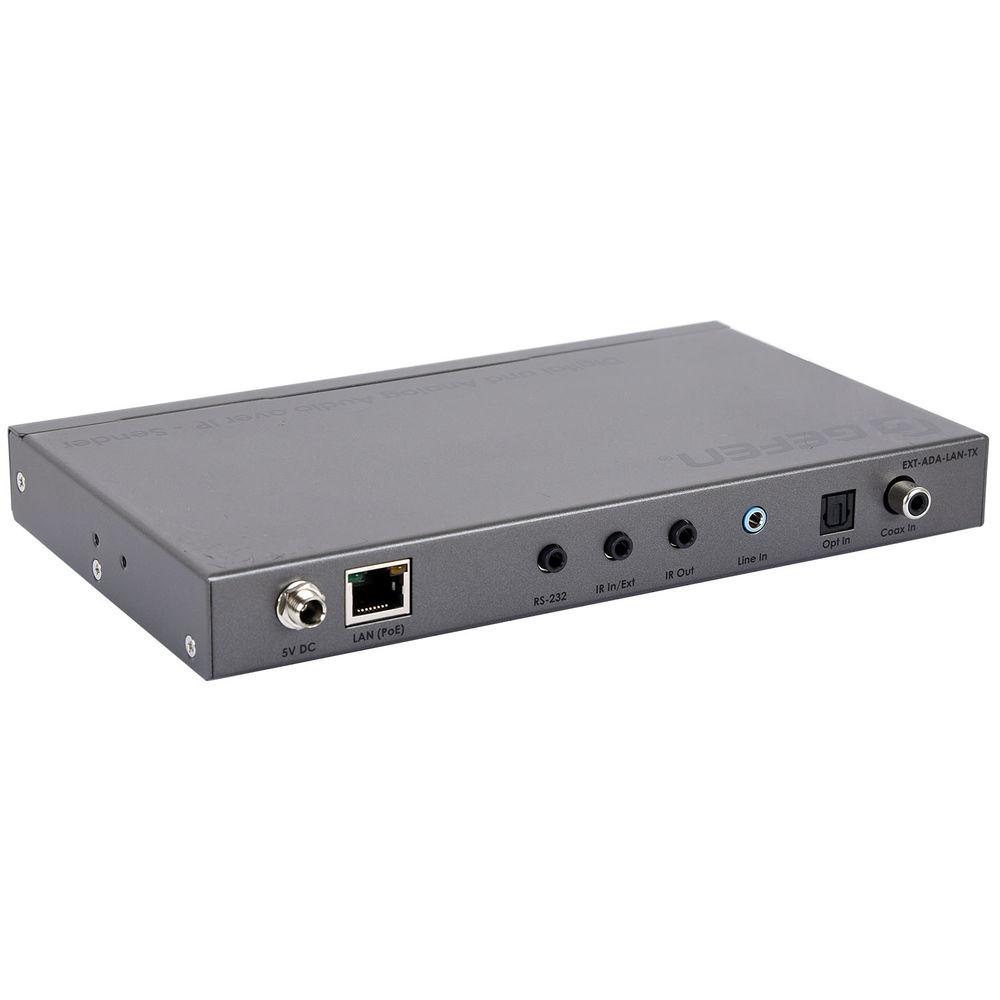

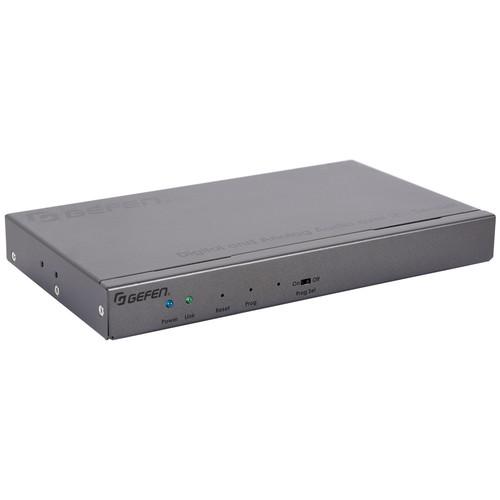

Technical parametersGefen EXT-ADA-LAN-TX Specs | | | Type | Audio/serial RS-232 over IP encoder | | | | Kit Content | (2) x mounting bracket
(1) x power adapter
(1) x serial cable
(1) x IR transmitter | | | | Terminals | (1) x audio line-in - mini-phone stereo 3.5 mm
(1) x SPDIF input - TOSLINK
(1) x SPDIF input - RCA
(1) x serial - mini-phone stereo 3.5 mm - RS-232
(1) x infrared input - mini-phone stereo 3.5 mm
(1) x infrared output - mini-phone stereo 3.5 mm
(1) x network - RJ-45 - PoE |
