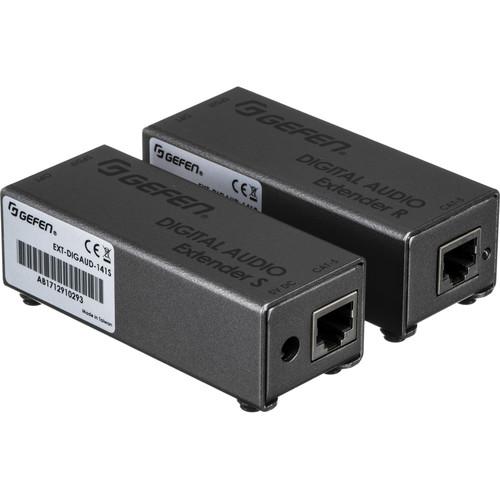

User Manual for Gefen Digital Audio Extender S PDIF or TOSLink Digital Audio Sender With Receiver - Transfers Signals Over Network Cables Click to enlarge the picture
Contents of the user manual for the Gefen Digital Audio Extender S PDIF
- Product category: Video Extenders & Repeaters Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Video Extenders & Repeaters
|
User manual for the Gefen Digital Audio Extender S PDIF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description At times, when installing a home theater, the limits of cable length can become a problem when distancing and separating components. All cables types suffer from issues of signal degradation, limited maximum length or the exorbitant cost of long cable runs. To address this, Gefen has created the DIGAUD-141 Digital Audio Extender which has the capability to convert and broadcast TOSLink optical or S/PDIF coaxial digital audio. This signal can be transmitted over a single inexpensive and common CAT5 network cable to connect the sender and receiver units over great distances. The signal path is able to maintain complete stereo or multi-channel audio formats (DTS, Dolby Digital, 8.1 etc.) from the source with a maximum range of 330 feet (100 m.) - Supplies clear digital audio over long distances as if connected locally
- Streamlines audio installations by allowing source devices to be located off-site or in an unseen rack
- Audio is transmitted digitally for zero signal loss
UPC: 845344001210 In the Box Gefen Digital Audio Extender S/PDIF or TOSLink Digital Audio Sender With Receiver - Transfers Signals Over Network Cables Digital Audio Extender-S Sender Digital Audio Extender-R Receiver 6' TOSlink male to male fiber optic digital audio cable Power Supply 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen Digital Audio Extender S PDIF or TOSLink Digital Audio Sender With Receiver - Transfers Signals Over Network Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-DIGAUD-141 Specs | Transmission Speed | 12.8 Mbp/S | | Input | Sender: 1x S/PDIF (coaxial,) 1x TOSLink (optical)
Receiver: 1x RJ-45 Network cable jack | | Output | Receiver: 1x S/PDIF (coaxial,) 1x TOSLink (optical)
Sender: 1x RJ-45 Network cable jack | | Power Supply | 5 VDC | | Dimensions (HxWxD) | 1.3 x 1.5 x 3.9" (3.2 x 3.8 x 9.9 cm) | | Shipping Weight | 4 lbs (1.8 kg) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 9.4 x 6.3 x 3.1" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
