User Manual for Gefen Dual Link DVI-to-Mini-DisplayPort Converter Click to enlarge the picture
Contents of the user manual for the Gefen Dual Link DVI-to-Mini-DisplayPort Converter
- Product category: Computer Monitor Adapters Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Computer Monitor Adapters
 |
User manual for the Gefen Dual Link DVI-to-Mini-DisplayPort Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|

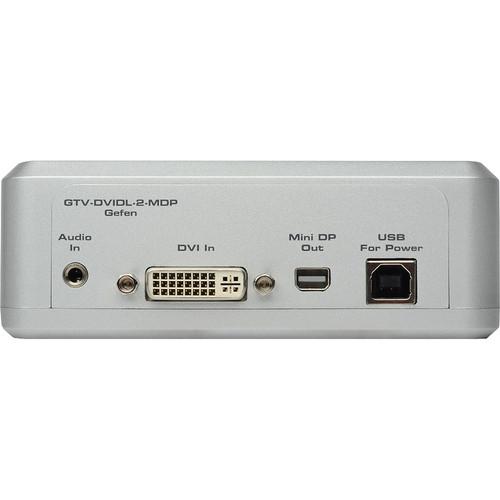

Product description The Dual Link DVI-to-Mini-DisplayPort Converter from Gefen works with all Mac and PC computers with a mini-DisplayPort. Using dual link DVI graphics, the Dual Link DVI-to-Mini-DisplayPort Converter supports resolutions up to 2560x1600. It's designed as a Plug-n-Play solution for viewing DVI video using the Mini DisplayPort interface with audio support. The Dual Link DVI-to-Mini-DisplayPort Converter can also be used with displays using standard DisplayPort connections with a passive Mini-DisplayPort-to-DisplayPort cable. Audio support is provided through the built-in 3.5mm audio jack. The audio output is fed through the Mini-DisplayPort connector on the unit. An EDID switch button is provided for manually selecting the three EDID modes: 2560x1600, 2560x1440, or pass-through. The unit is powered using the included USB cable. - Advanced Extended Display Identification Data (EDID)

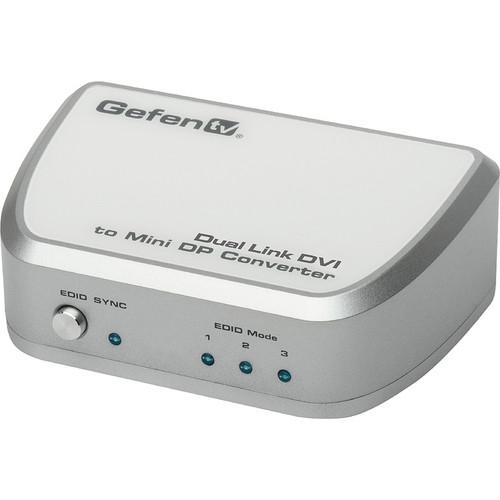

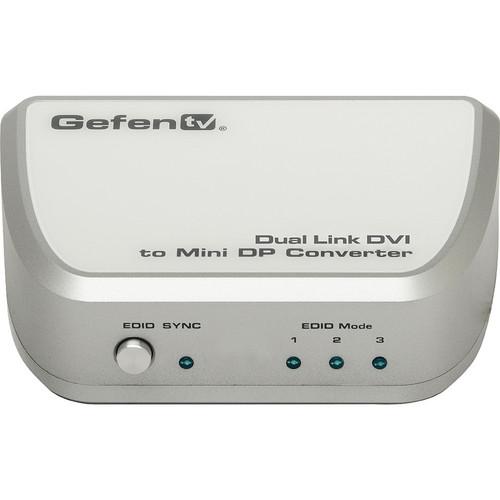

- The Dual Link DVI-to-Mini-DisplayPort Converter comes equipped with advanced EDID management features, such as the EDID switch located on the front panel. It can be used to switch seamlessly between three different modes: 2560x1600, 2560x1440, or pass-through
- Audio Conversion
- Audio input is handled by a 3.5mm (1/8") audio jack. Both the DVI video signal and the audio signal are converted by the Dual Link DVI-to-Mini-DisplayPort Converter and relayed through the mini-DisplayPort. Since the mini-DisplayPort handles both video and audio signals (just like its HDMI counterpart), there's no need for a separate audio connector from the converter to the display receiving the signal
- Supported Resolutions
- The Dual Link DVI-to-Mini-DisplayPort Converter supports resolutions up to 2560x1600. Also, the included EDID button can switch to 2560x1440, which is the native resolution of Apple 27" iMacs and Apple 27" LED Cinema Displays
- USB-Powered
- The Dual Link DVI-to-Mini-DisplayPort Converter is powered through a USB cable so it doesn't take up extra space on the electrical outlet
UPC: 845344079875 In the Box Gefen Dual Link DVI-to-Mini-DisplayPort Converter Dual Link DVI to Mini DP Converter 4-foot USB Cable (Type-A-to-Type-B) User Manual Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen Dual Link DVI-to-Mini-DisplayPort Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen GTV-DVIDL-2-MDP Specs | | | Connector 1 | DisplayPort Female | | Connector 2 | DVI-I Female
1/8" (3.5 mm) Mini | | | | Maximum Resolution Support | 2560 x 1600 | | | | Dimensions | 4.8 x 1.8 x 3.3" / 12.0 x 4.5 x 8.3 cm | | Weight | 1.0 lb / 0.5 kg | | | | Package Weight | 1.01 lb | | Box Dimensions (LxWxH) | 10.05 x 5.45 x 4.75" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
