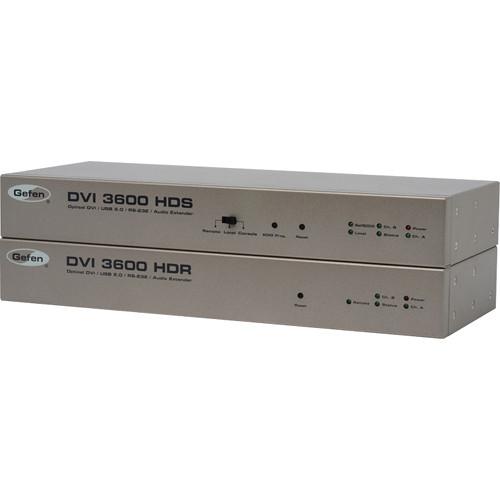

Product description The Gefen DVI 3600HD Optical DVI / USB 2.0 / RS-232 / Audio Extender allows you to operate a single DVI-compliant computer from 2 workstations by extending DVI, USB 2.0, analog audio, and RS-232 from the computer to the remote workstation. USB peripherals can be placed at either of the 2 locations, by the sender or receiver unit.

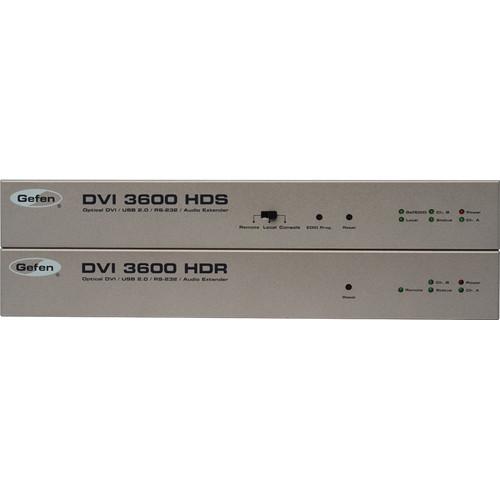

This DVI extender consists of a sender and receiver unit. The sender unit connects to the computer's DVI-compliant video card output, analog audio jack, RS-232 port, and USB 2.0 port. The receiver unit connects to the remote display and peripherals. Four strands of LC fiber optic cable connect the sender and receiver units together.
This extender has 2 modes of USB operation. When in local mode, the computer displays the USB devices connected to the sender unit, and in the remote mode, the computer displays the USB devices connected to the receiver unit. These 2 modes can be configured using a switch on the front panel of the sender unit. Note: Extension distance will depend on the type of fiber media used:
Single-Mode Fiber: WUXGA (1920 x 1200) resolution @ 6,600' (2,000 m)
Multi-Mode Fiber: WUXGA (1920 x 1200) resolution @ 1,650' (500 m). - Extends DVI, USB2.0, RS-232, and analog audio up to 6,600' (2,000 m) with single-mode fiber, and up to 1,650' (500 m) with multi-mode fiber
- Supports video resolutions up to 1920 x 1200
- Uses 4-strand single-mode or multi-mode LC-terminated fiber cables
- Supports Virtual DDC1 and DDC2B protocols
- Supports local and virtual EDIDs
- Supports USB 2.0 and USB 1.1
- Configurable to allow access of USB devices located at sender side or receiver side
- Rack-mountable (rack ears included)
UPC: 845344069296 In the Box Gefen DVI 3600HD Optical DVI / USB 2.0 / RS-232 / Audio Extender EXT-DVI-3600HDS DVI 3600HD Sender Unit EXT-DVI-3600HDR DVI 3600HD Receiver Unit CAB-DVIC-DL-06MM 6' (1.83 m) DVI-DL Cable (M-M) DB-9 Serial Cable (M-F, 6') USB Cable A to B (6') 2 x EXT-PS12U35A 12 V / 3 A Power Suppy 2 x CAB-POWERCORD-US AC Power Cord EXT-RACK-OP-03-BRZ Set of Rack Ear QSG-DVI-3600HD Quick-Start Guide 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen DVI 3600HD Optical DVI USB 2.0 RS-232 Audio Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

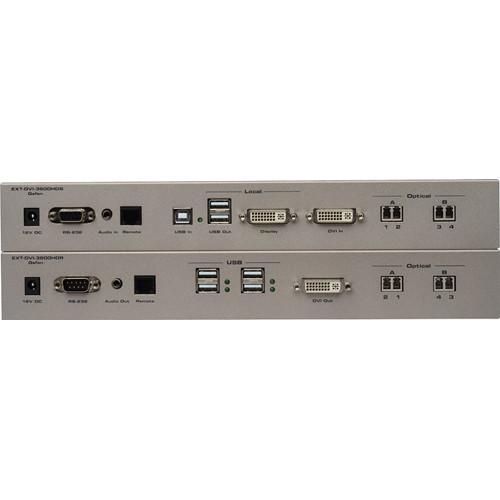

Technical parametersGefen DVI 3600HD Specs | Maximum Pixel Clock | 165 MHz | | Connectors | Video Input Connector (Sender): 1x 24-pin DVI-D female (digital only)
Video Monitor Output Connector (Sender): 1x 24-pin DVI-D female (digital only)
Audio Input Connector (Sender): 1x 3.5 mm mini-stereo jack
Audio Output Connector (Receiver): 1x 3.5 mm mini-stereo jack
USB Host Connector (Sender): 1x USB type B
USB Local Device Connectors (Sender): 2x USB type A, female
USB Device Connectors (Receiver): 4x USB type A, female
Link Connectors (Sender / Receiver): 4x type LC fiber connectors (2x LC Duplex)
Console Connector (Sender / Receiver): 1x RJ-45 jack (for future use) | | RS-232 Serial Port | Sender: 1x DB-9, female
Receiver: 1x DB-9, male | | Fiber Cable Requirement | CAB-LC-XXX (62.5 μ multi-mode) | | Power Supply | Sender / Receiver: 12 VDC | | Power Consumption | 36 W (maximum) each | | Dimensions (W x H x D) | Sender / Receiver: 12.4 x 1.6 x 5" (315 x 41 x 127 mm) | | | | Package Weight | 7.95 lb | | Box Dimensions (LxWxH) | 23.0 x 9.2 x 4.9" |
