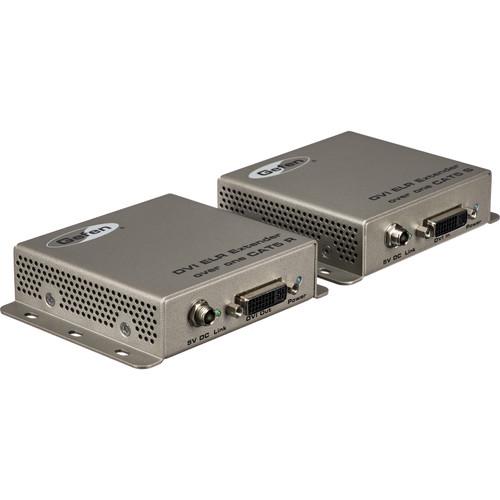

User Manual for Gefen DVI ELR Extender over Cat 5e Click to enlarge the picture
Contents of the user manual for the Gefen DVI ELR Extender over Cat
- Product category: Video Extenders & Repeaters Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Video Extenders & Repeaters
|
User manual for the Gefen DVI ELR Extender over Cat contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description Leveraging HDBaseT technology, this DVI ELR Extender Kit from Gefen can transmit a DVI signal up to 1920x1200 (WUXGA) resolution over 495' of Cat 5e cable without any degradation. This kit includes transmitter and receiver units along with locking power supplies for each unit and a 6' DVI cable to get you started. Since this system utilizes HDBaseT, all aspects of the DVI signal remain intact including HDCP encryption. Built-in EDID management reduces the "handshake" time usually associated with connecting new devices. For installation convenience, the transmitter and receiver units can be surface mounted. - Extends DVI up to 495' over one Cat 5e cable
- Supports resolutions up to 1080p full HD and 1920 x 1200 (WUXGA)
- EDID management for rapid integration of source and display
- Enable/Disable switches for HPD pass-through
- Power-save (Green Mode) selector switch
- 492.1 / 328.1' range selector switch configures the extender for maximum range or maximum bandwidth
- Locking power supplies (included)
UPC: 845344066936 In the Box Gefen DVI ELR Extender over Cat 5e Dual Link DVI Cable 2 x 5 VDC Locking Power Supplies Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen DVI ELR Extender over Cat 5e in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-DVI-1CAT5-ELR Specs | Maximum Pixel Clock | 165 MHz | | Connectors | Sender:
1 x DVI-I, 29-pin, female (digital only)
1 x RJ-45, link
Receiver:
1 x DVI-I, 29-pin, female (digital only)
1 x RJ-45, link | | Indicators | Each Unit:
1 x LED blue, power
1 x LED green, link | | Controls | Sender:
1 x DIP switch, internal/external EDID selector
1 x DIP switch, HPD pass-through selector
1 x DIP switch, power-save selector
1 x DIP switch, 492.1 / 328.1' (150 / 100 m) range selector
Receiver:
1 x DIP switch, power-save selector
1 x DIP switch, 492.1 / 328.1' (150 / 100 m) range selector | | Power Supply | Each Unit: 5 VDC | | Power Consumption | Each Unit: 10 W maximum | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Operating Humidity | 0 to 90% RH, non-condensing | | Dimensions | 4.3 x 1.0 x 3.4" (11.0 x 2.6 x 8.6 cm) | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 11.89 x 6.063 x 3.858" |
