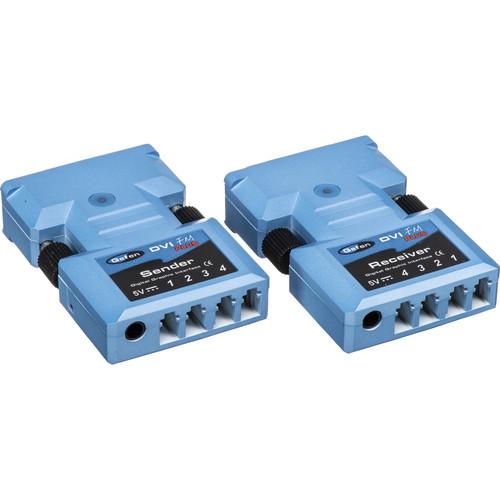

User Manual for Gefen DVI FM Extender Plus Click to enlarge the picture
Contents of the user manual for the Gefen DVI FM Extender Plus
- Product category: KVM Extenders Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen KVM Extenders
|
User manual for the Gefen DVI FM Extender Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description The DVI FM Extender Plus from Gefen is distribution system designed to transport DVI signals over extended distances using fiber-optic cable. This solution can be used to transport signals up to 2000'. It consists of a transmitter that plugs into your computer and a receiver that connects to your display. The transmitter sends DVI signals over multi-mode fiber-optic LC cable to the receiver, which in turn translates the signal back into DVI format. This unit supports resolutions up to 1080p, 2k, and 1920 x 1200. Also supported is DDWG standard for DVI-compliant monitors. It also features EDID programming to enable quick and correct sync of source to display. - DVI over Fiber-Optic Cable
- Use this device to extend DVI signals by transmitting over fiber-optic cable.
- Transmission Distance
- This unit supports cable runs of up to 2000'.
- Standards
- It supports DDWG standards for DVI monitors & EDID programming.
- Resolution
- Resolutions up to 1080p, 2k, and 1920 x 1200 are supported.
UPC: 845344095059 In the Box Gefen DVI FM Extender Plus DVI FM Plus Transmitter DVI FM Plus Receiver 2 x 5VDC Power Supplies User's Manual Two-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen DVI FM Extender Plus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-DVI-FMP Specs | | | Ports | Transmitter:
1 x DVI-D Female (Input)
2 x LC Fiber
Receiver:
1 x DVI-D Female (Output)
2 x LC Fiber | | Supported Resolutions | 1920 x 1200 | | | | Bandwidth | 165 MHz | | Signal Level | 1.2 Vp-p (Video)
5 Vp-p | | | | DC Input Power | 5 VDC at 0.5 A | | | | Dimensions | 0.5 x 2.2 x 1.5" / 1.3 x 5.6 x 3.8 cm | | Weight | 1.0 lb / 453.6 g | | | | Package Weight | 0.94 lb | | Box Dimensions (LxWxH) | 8.95 x 5.05 x 2.15" |
