User Manual for Gefen DVI KVM over IP Receiver Click to enlarge the picture
Contents of the user manual for the Gefen DVI KVM over IP Receiver
- Product category: KVM Extenders Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen KVM Extenders
|
User manual for the Gefen DVI KVM over IP Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|

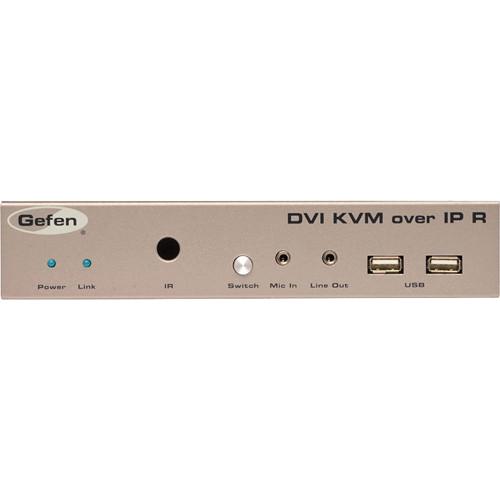

Product description The Gefen DVI KVM over IP Receiver connects to any Gefen KVM Transmitter (sold separately) and extends a DVI signal, along with USB, RS-232, and two-way audio, 328 ft over CAT5/6, in resolutions up to 1080p and 1920 x 1200 WUXGA. Using an optional Gigabit switch, you can configure a multipoint matrix of up to 65,000 transmitter/receiver units in total. The Gigabit switch must support 8k jumbo frame packets in order to support multipoint mode. A free web server interface is available on the Gefen website for quick system set-ups and firmware upgrades.
A total of three RJ-45 ports are available, one for the signals transmitted and two offering network connectivity. Two-way audio consists of a 3.5mm mic in and line out. The mic in sends a mic signal back to the transmitter for recording. Two USB 2.0 ports are located on the front panel for connecting a mouse and keyboard. An IR port is available for optional IR control. An L-shaped mounting bracket is included. - Key Features
-
- Supports DVI, USB, RS-232, and two-way audio from 328 ft over CAT5/6
- Supports input/output resolutions up to 1080p and 1920 x 1200 WUXGA
- Supports Gigabit switches for 65,000 unit transmitter/receiver matrix
- Three RJ-45 ports, one for signals carried and two for network connectivity
- Two USB ports on the front panel for a keyboard and mouse
- 3.5mm mic in and line out ports
- IR port for optional IR control
- Tact-type Switch button
- Tact-type, recessed Reset button
- Includes L-shaped mounting bracket
- 1U, half-rack wide, rack-mountable using an optional Gefen rackmount tray (model EXT-RACK-1U)
UPC: 845344042527 In the Box Gefen DVI KVM over IP Receiver 5V DC Locking Power Supply L-Shaped Mounting Bracket with Screws Quick-Start Guide 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen DVI KVM over IP Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-DVIKVM-LANRX Specs | | | Ports | Receiver:
1 x DVI (Output)
1 x 3.5 mm Audio (Output)
1 x 3.5 mm IR (Output)
2 x USB Type-A USB 2.0 Female (Output)
3 x RJ45 (Input)
1 x 3.5 mm Audio (Input)
1 x DB9 RS232 Male (Input) | | Supported Resolutions | 1920 x 1200
1920 x 1080 | | Maximum Transmission Distance | 328' / 100 m | | | | DC Input Power | 5 VDC | | Power Consumption | 10 W | | | | Dimensions | 8.4 x 1.7 x 4.5" / 21.3 x 4.3 x 11.3 cm | | Weight | 2.0 lb / 0.9 kg | | | | Package Weight | 3.6 lb | | Box Dimensions (LxWxH) | 13.2 x 8.1 x 3.8" |
