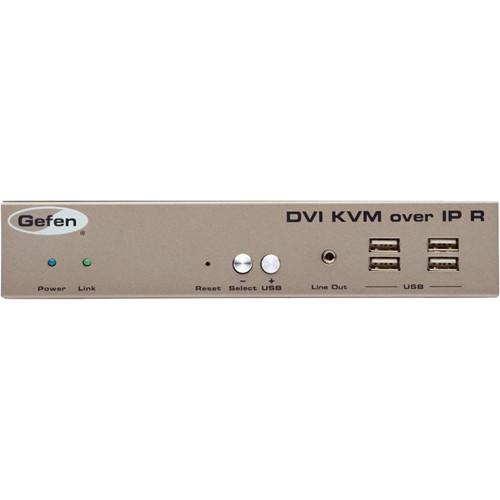

User Manual for Gefen DVI KVM over IP Receiver with Four USB Ports Click to enlarge the picture
Contents of the user manual for the Gefen DVI KVM over IP Receiver
- Product category: KVM Extenders Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen KVM Extenders
|
User manual for the Gefen DVI KVM over IP Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description The Gefen DVI KVM over IP Receiver with Four USB Ports connects to any Gefen KVM Transmitter (sold separately) and extends a DVI signal, along with USB, RS-232, and audio, 328 ft over CAT5/6. It supports input/output resolutions up to 1080p and 1920 x 1200 WUXGA. Using an optional Gigabit switch, you can configure a multipoint matrix of up to 65,000 transmitter/receiver units in total. The Gigabit switch must support 8k jumbo frame packets in order to support multipoint mode. A free web server interface is available on the Gefen website for quick system set-ups and firmware upgrades.
A total of three RJ-45 ports are available, one for the signals transmitted and two offering network connectivity. Four USB 2.0 ports are located on the front panel for connecting computer peripherals. An audio line out outputs independent audio from the transmitter. An L-shaped mounting bracket is included. - Key Features
-
- Transmits DVI, USB, RS-232, and audio 328 ft over CAT5/6
- Supports input/output resolutions up to 1080p and 1920 x 1200
- Supports Gigabit switches for up to a 65,000 unit transmitter/receiver matrix
- Three RJ-45 ports, one for signals carried and two for network connectivity
- Four USB 2.0 ports for computer peripherals
- 3.5mm audio line out
- IR port for optional IR control
- Includes L-shaped mounting bracket
- 1U, half-rack wide, rack-mountable using an optional Gefen rackmount tray (model EXT-RACK-1U)
UPC: 845344096148 In the Box Gefen DVI KVM over IP Receiver with Four USB Ports 5V DC Locking Power Supply L-Shaped Desktop Mounting Bracket with Screws 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen DVI KVM over IP Receiver with Four USB Ports in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-DVIKVM-LAN-LRX Specs | | | Ports | Receiver:
1 x DVI (Output)
1 x 3.5 mm Audio (Output)
4 x USB Type-A USB 2.0 Female (Output)
3 x RJ45 (Input)
1 x DB9 RS232 Male (Input) | | Supported Resolutions | 1920 x 1200
1920 x 1080 | | Maximum Transmission Distance | 328' / 100 m | | | | DC Input Power | 5 VDC | | Power Consumption | 10 W | | | | Dimensions | 8.4 x 1.7 x 4.5" / 21.3 x 4.3 x 11.3 cm | | Weight | 2.0 lb / 0.9 kg | | | | Package Weight | 3.635 lb | | Box Dimensions (LxWxH) | 13.25 x 8.15 x 3.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
