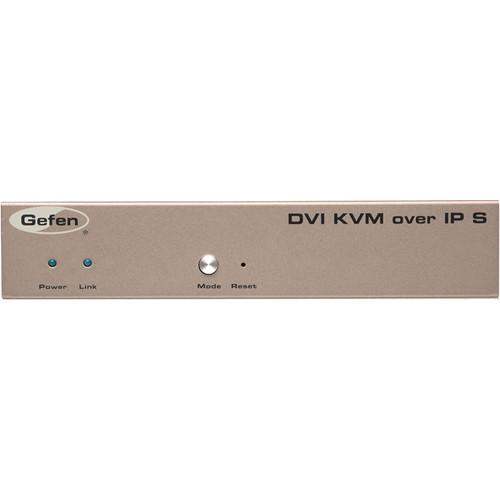

Product description Connect to one or more Gefen KVM-LAN receivers and send DVI, USB, RS-232, bi-directional stereo analog audio, and IR over IP using a Gigabit LAN. The Gefen DVI KVM Over IP Transmitter is a 1U, half-rack, rack-mountable device and supports resolutions up to 1080p and WUXGA. It can also be incorporated into a 65,000 transmitter/receiver setup, depending on the network bandwidth and number of ports on your network switch. Note: A Gigabit LAN switch is required. The Gigabit switch must support 8K jumbo frame packets in order for multicast mode to operate. If your LAN is not dedicated to Gefen KVM-LAN products exclusively, then a managed switch is highly recommended. - Features
-
- Transmit DVI, USB, RS-232, bi-directional stereo analog audio, and IR over IP, using a Gigabit LAN
- Supports resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA)
- Any combination of DVI, HDMI, and VGA transmitters and receivers can be used together to create a "Virtual Matrix"
- Can be accessed by any receiver unit via a web browser on a mobile device or computer, or via the Gefen Keyboard Switching Controller software
- Can be incorporated into a 65,000 transmitter/receiver setup, depending on the network bandwidth and number of ports on your network switch
- Mode button for sharpness or motion optimization of image
- Easy-to-use web server interface for quick system set-up, operation, and firmware upgrade
- Locking power supply connector
- 1U tall, half-rack width enclosure, rack-mountable using the optional EXT-RACK-1U
- Surface mounting brackets included
UPC: 845344078984 In the Box Gefen DVI KVM Over IP Transmitter 6 ft DVI Cable (M-M) 6 ft USB Cable 6 ft DB-9 Cable L-Shaped Mounting Bracket with Screws 5 VDC Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen DVI KVM Over IP Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-DVIKVM-LANTX Specs | | | Ports | Transmitter:
1 x 3.5 mm Audio (Input)
1 x DB9 RS232 Female (Input)
1 x DVI Female (Input)
1 x USB Type-B Female (Input)
1 x 3.5 mm Audio (Output)
1 x 3.5 mm IR (Output)
1 x RJ45 Ethernet (Output) | | | | DC Input Power | 5 VDC | | Power Consumption | 10 W | | | | Dimensions | 8.4 x 1.7 x 4.5" / 21.3 x 4.3 x 11.4 cm | | Weight | 5.7 lb / 3.0 kg | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 14.2 x 11.8 x 3.6" |
