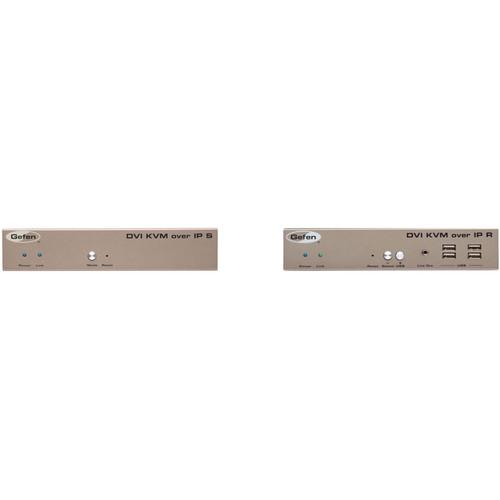

User Manual for Gefen DVI KVM over IP with Local Output Transmitter & Receiver Kit Click to enlarge the picture
Contents of the user manual for the Gefen DVI KVM over IP with
- Product category: KVM Extenders Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen KVM Extenders
|
User manual for the Gefen DVI KVM over IP with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description The Gefen DVI KVM over IP with Local Output Transmitter & Receiver Kit allows you to extend a DVI signal, along with USB, RS-232, and audio, up to 328 ft over a single Cat5e or better cable, in resolutions up to 1080p and 1920 x 1200 WUXGA. Using an optional Gigabit switch, you can configure a multipoint matrix of up to 256 transmitters and 65,000 transmitter/receiver units in total. (The Gigabit switch must support 8K jumbo frame packets in order to support multipoint configurations.) - Gefen DVI KVM over IP Transmitter with Local DVI Output The Gefen DVI KVM over IP Transmitter with Local DVI Output transmits a DVI signal, along with USB, RS-232, and audio, 328 ft over CAT5/6 to any Gefen KVM Receiver, sold separately. It supports input/output resolutions up to 1080p and 1920 x 1200 WUXGA. Using an optional Gigabit switch, you can configure a multipoint matrix of up to 256 transmitters and 65,000 transmitter/receiver units in total. The Gigabit switch must support 8k jumbo frame packets in order to support multipoint mode. A free web server interface is available on the Gefen website for quick system set-ups and firmware upgrades.
A DVI output is available for local monitoring of the source input. An audio line in port allows connecting independent audio. An IR port is available for optional IR control. 6 ft VGA, USB A to B, and DB-9 RS-232 cables, an L-shaped mounting bracket, and a locking power supply are included. - Key Features
-
- Transmits DVI, USB, RS-232, and audio 328 ft over CAT5/6
- Supports input/output resolutions up to 1080p and 1920 x 1200
- Supports Gigabit switches for up to a 65,000 unit transmitter/receiver matrix
- 3.5mm audio line in for connecting independent audio
- RS-232 port for optional serial control
- IR port for optional IR control
- Tact-type Mode button for image sharpness and motion optimization
- Rotary-type ID Selector switch
- Includes DVI, USB, and DB-9 cables
- Includes L-shaped mounting bracket and locking power supply
- 1RU, half-rack wide, rack-mountable using an optional Gefen EXT-RACK-1U tray
UPC: 845344077758 Gefen DVI KVM over IP Receiver with Four USB Ports The Gefen DVI KVM over IP Receiver with Four USB Ports connects to any Gefen KVM Transmitter (sold separately) and extends a DVI signal, along with USB, RS-232, and audio, 328 ft over CAT5/6. It supports input/output resolutions up to 1080p and 1920 x 1200 WUXGA. Using an optional Gigabit switch, you can configure a multipoint matrix of up to 65,000 transmitter/receiver units in total. The Gigabit switch must support 8k jumbo frame packets in order to support multipoint mode. A free web server interface is available on the Gefen website for quick system set-ups and firmware upgrades.
A total of three RJ-45 ports are available, one for the signals transmitted and two offering network connectivity. Four USB 2.0 ports are located on the front panel for connecting computer peripherals. An audio line out outputs independent audio from the transmitter. An L-shaped mounting bracket is included. - Key Features
-
- Transmits DVI, USB, RS-232, and audio 328 ft over CAT5/6
- Supports input/output resolutions up to 1080p and 1920 x 1200
- Supports Gigabit switches for up to a 65,000 unit transmitter/receiver matrix
- Three RJ-45 ports, one for signals carried and two for network connectivity
- Four USB 2.0 ports for computer peripherals
- 3.5mm audio line out
- IR port for optional IR control
- Includes L-shaped mounting bracket
- 1U, half-rack wide, rack-mountable using an optional Gefen rackmount tray (model EXT-RACK-1U)
UPC: 845344096148 In the Box - DVI KVM over IP Transmitter with Local DVI Output
- 5V DC Locking Power Supply
- DVI Cable (6 ft / 1.8 m)
- USB Cable Type A to B (6 ft / 1.8 m)
- DB-9 Cable (6 ft / 1.8 m)
- L-Shaped Mounting Bracket with Screws
- Quick-Start Guide
- 2-Year Limited Warranty
- DVI KVM over IP Receiver with Four USB Ports
Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen DVI KVM over IP with Local Output Transmitter & Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Gefen DVI KVM over IP Transmitter with Local DVI Output
| | | Ports | Transmitter:
1 x DVI Female (Input)
1 x 3.5 mm Audio (Input)
1 x DB9 RS232 Female (Input)
1 x USB Type-B USB 2.0 Female (Input)
1 x RJ45 Ethernet (Output)
1 x DVI (Output)
1 x 3.5 mm IR (Output) | | Supported Resolutions | 1920 x 1200
1920 x 1080 | | Maximum Transmission Distance | 328' / 100 m | | | | DC Input Power | 5 VDC | | Power Consumption | 10 W | | | | Dimensions | 8.4 x 1.7 x 4.5" / 21.3 x 4.3 x 11.3 cm | | Weight | 2.0 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 14.35 x 11.8 x 3.85" | - Gefen DVI KVM over IP Receiver with Four USB Ports
| | | Ports | Receiver:
1 x DVI (Output)
1 x 3.5 mm Audio (Output)
4 x USB Type-A USB 2.0 Female (Output)
3 x RJ45 (Input)
1 x DB9 RS232 Male (Input) | | Supported Resolutions | 1920 x 1200
1920 x 1080 | | Maximum Transmission Distance | 328' / 100 m | | | | DC Input Power | 5 VDC | | Power Consumption | 10 W | | | | Dimensions | 8.4 x 1.7 x 4.5" / 21.3 x 4.3 x 11.3 cm | | Weight | 2.0 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 13.25 x 8.15 x 3.6" |
