User Manual for Gefen DVIKVM Extra Long Range Extender for DVI and USB over one CAT-5 Cable Click to enlarge the picture
Contents of the user manual for the Gefen DVIKVM Extra Long Range Extender
- Product category: KVM Extenders Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen KVM Extenders
 |
User manual for the Gefen DVIKVM Extra Long Range Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|

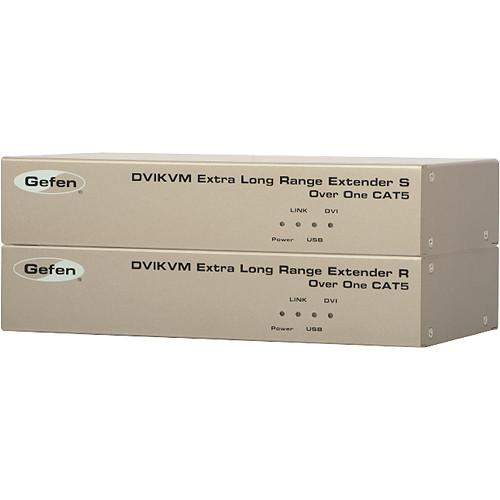

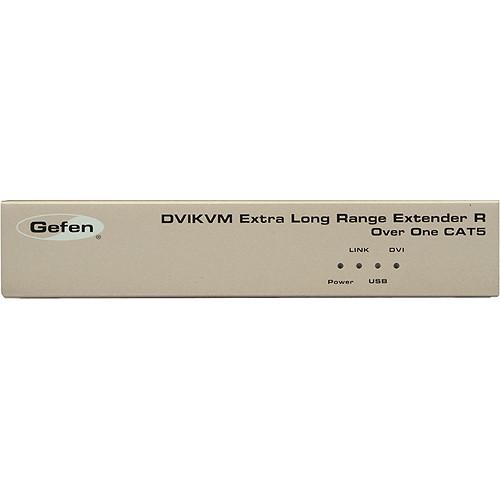

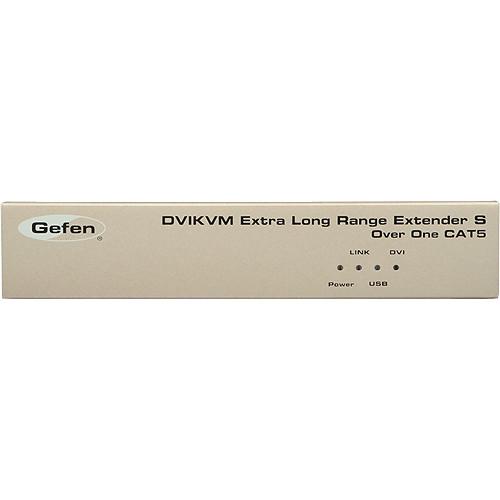

Product description The Gefen DVIKVM Extra Long Range Extender for DVI and USB over one CAT-5 Cable extends any DVI or USB source over a CAT-5 cable to any monitor, touch screen display, or any digital signage application that is placed up to a 330' (100 m) distance. It can support DVI resolutions up to 1920 x 1200 @ 60 Hz or 1080p and USB 2.0 data rates up to 480 Mbps. In addition, the extender is backward-compatible with USB 1.1. ELR technology allows DVI and USB signals to travel simultaneously along the same cable, which saves wiring costs and makes for easy installation. With the receiver unit, you can connect up to 3 USB devices, providing access to printers, scanners, cameras, external storage media, digital signage, and automated control systems. - Connects any DVI or USB source to any monitor, touch screen display, or any digital signage application over a CAT-5 cable
- Extends up to 330' (100 m)
- USB 2.0 data transfer rate up to 480 Mbps
- Works with the industry-standard CAT-5, CAT-5e, CAT-6 cables
- Backward compatible with USB 1.1
- ELR technology allows DVI and USB signals to travel simultaneously along the same cable
- Compatible with PC and Apple's Mac computers
- Can be mounted on a wall or rack
- Compliant with Energy Star
UPC: 845344093345 In the Box Gefen DVIKVM Extra Long Range Extender for DVI and USB over one CAT-5 Cable 2-Year Warranty Against Defects in Material & Workmanship Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen DVIKVM Extra Long Range Extender for DVI and USB over one CAT-5 Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Gefen DVIKVM Extra Long Range Extender for DVI and USB over one CAT-5 Cable can be downloaded in PDF format at the link stated below.

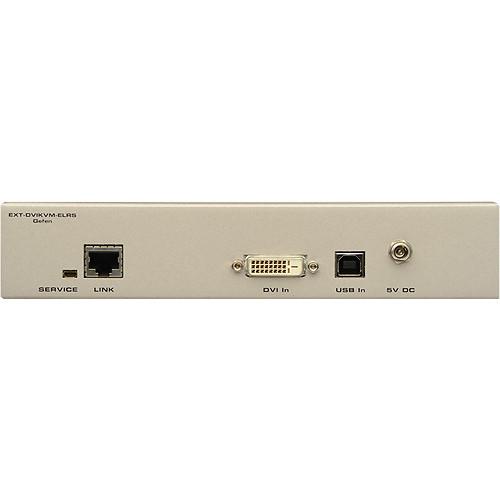

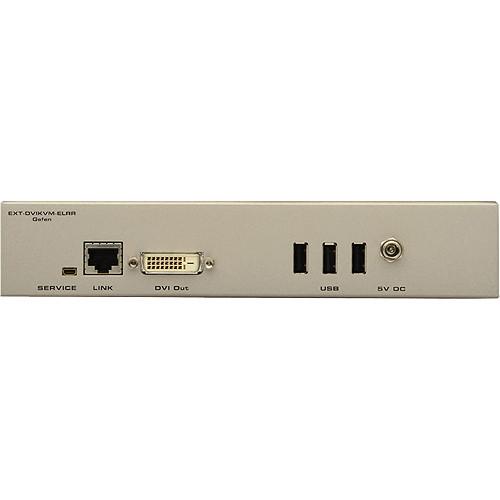

Technical parametersGefen EXT-DVIKVM-ELR Specs | Bandwidth | 165 MHz | | Input Video Signal | 1.2 V p-p | | Input DDC Signal | 5 V p-p (TTL) | | DVI Connectors | DVI-I 29-pin, female | | USB Connector (Sender) | Type B | | USB Connector (Reciever) | (3) Type A | | Link Connector | RJ-45 | | Power Connectors | Locking | | Power Supply | 5 V DC | | Power Consumption | 10 W per unit (max.) | | Operating Temperature | 32 to 104 °F (0 to 40 °C) | | | | Package Weight | 5.7 lb | | Box Dimensions (LxWxH) | 19.2 x 12.1 x 4.8" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
