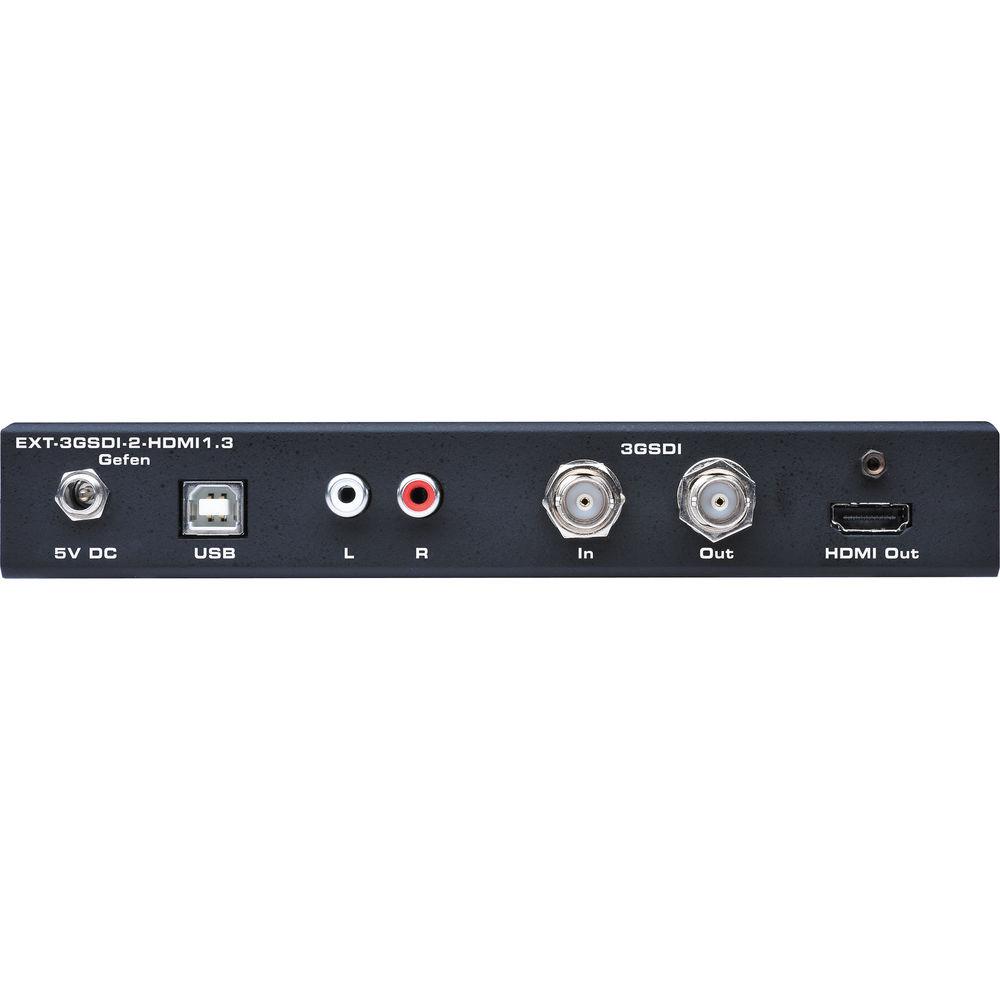

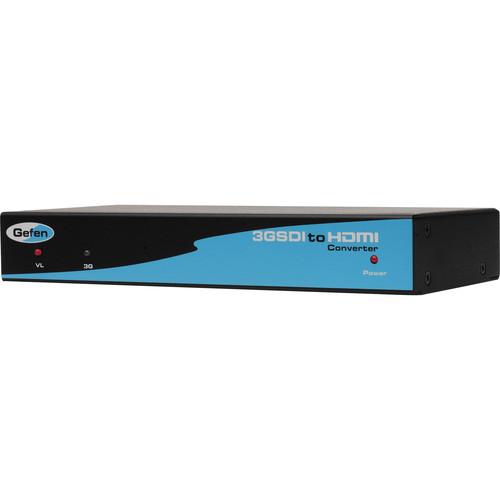

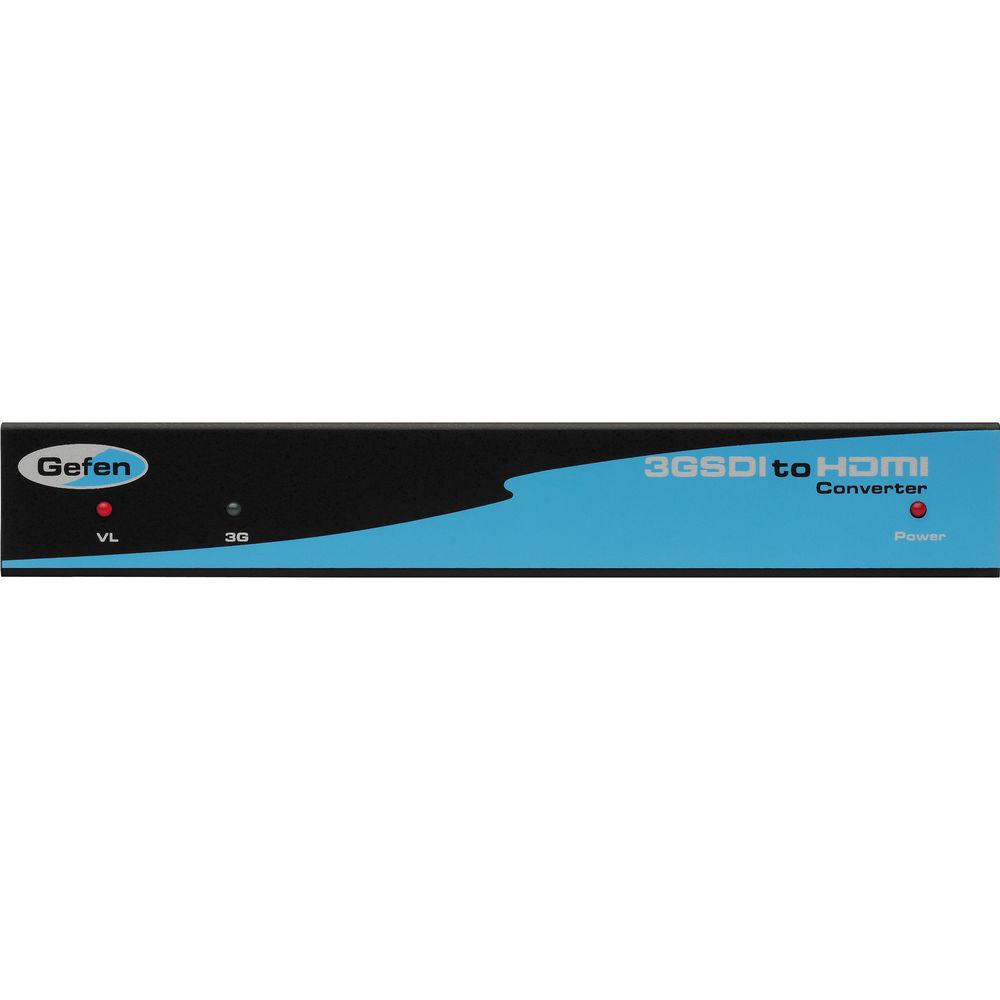

Product description The Gefen EXT-3G-HD-C converts audio and video from 3G-SDI to HDMI format, at resolutions up to 1080p. Audio formats up to 8 channels of LPCM are supported. This product is fully compatible with the Gefen Syner-G software suite for firmware updates and in-depth device configuration. The unit's compact enclosure, while light enough to be held in place using double-sided touch fastener tape, features a standard 1/4"-20 attachment provision as well as a detachable surface-mounting bracket. This, along with a flexible power input circuitry capable of accepting a wide range of DC voltages and a locking power supply connector, makes the EXT-3G-HD-C useful for mobile A/V applications as well as fixed installations. UPC: 888814668063 In the Box Gefen EXT-3G-HD-C 3G-SDI to HDMIConverter Surface Mounting Bracket 12 V DC Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen EXT-3G-HD-C 3G-SDI to HDMIConverter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-3G-HD-C Specs | Maximum Resolution | Input: 1080p60
Output: 1080p
10-bit support on input and output | | Color Spaces Supported | HDMI YCbCr 4:4:4
DVI RGB 4:4:4
Up to 10-bit | | Audio Support | LPCM up to 7.1 channels | | Clock Speed | Max Pixel Clock: 150 MHz
Maz TMDS Clock: 225 MHz | | I/O Connections | 1 x SDI (BNC) female input
1 x Locking HDMI Type A female output
1 x USB mini-B

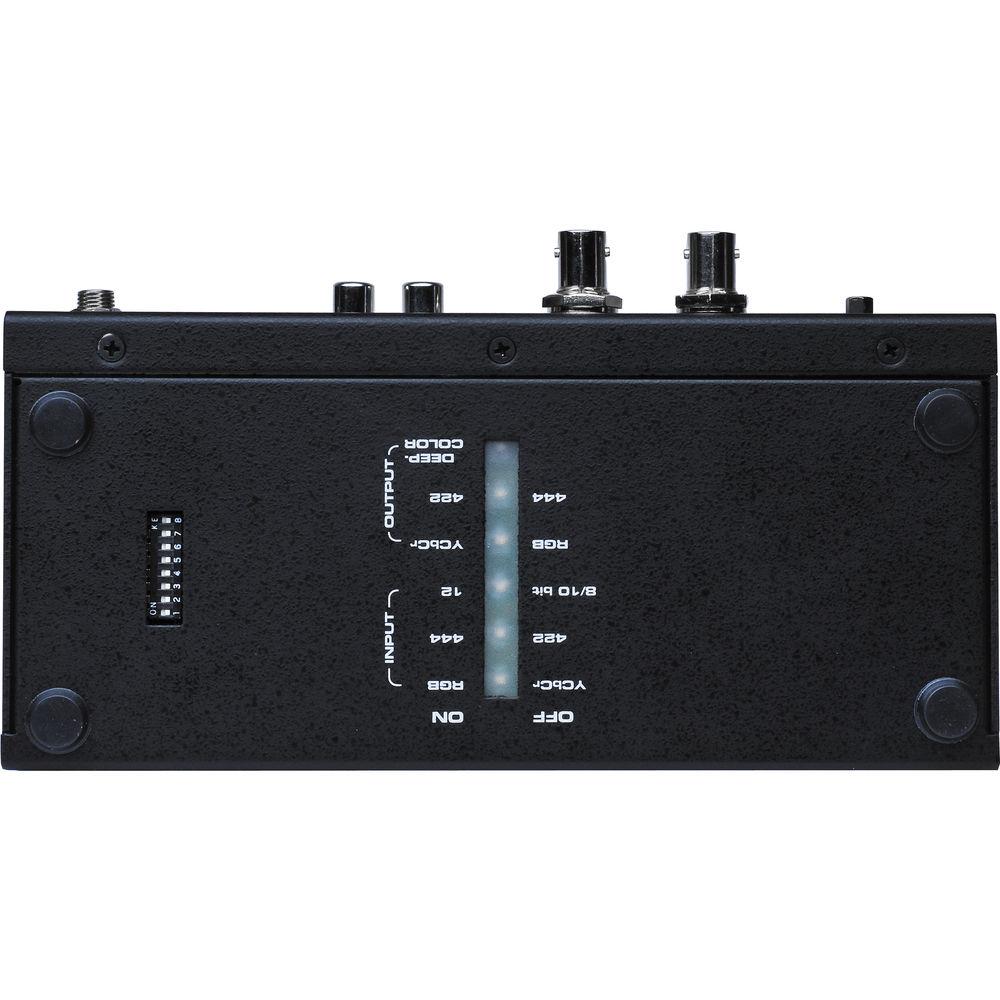

1 x 3-pin locking power connector | | Dip Switches | 5 x DIP configuration switches | | LED Indicators | 1 x Green LED
1 x Blue LED | | Power Supply | 12 VDC nominal (6 to 24 VDC operating range) | | Power Consumption | 2 W maximum | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Operating Humidity | 5 to 90% RH (non-condensing) | | Storage Humidity | 0 to 95% RH (non-condensing) | | Dimensions | 2.9 x 1.2 x 2.3" / 74 x 30 x 59 mm | | Weight | 0.3 lb / 150 g | | | | Package Weight | 1.31 lb | | Box Dimensions (LxWxH) | 10.5 x 6.9 x 4.0" |
