Product description - 4K Ultra HD 8x8 Matrix for HDMI

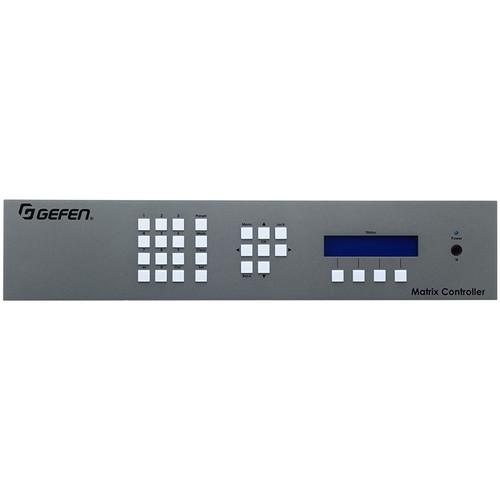

The 2RU EXT-CU-LAN Matrix Controller from Gefen is a hardware platform designed to manage and control the Gefen family of video and KVM over IP products in a virtual matrix environment. Its comprehensive and user-friendly interface can be accessed by any web-enabled device, including phones, tablets, and PCs. With this matrix controller you can control matrix routing and access presets, no matter the size and complexity of the system. The EXT-CU-LAN also manages access to the AV network, providing two independent levels of security for administrators and end-users. Setup of the matrix system is simple and straightforward. All connected Gefen video or KVM over IP products are automatically detected and configured as necessary. The matrix controller's conventional front-panel layout includes push-buttons and a 40-character backlit display which dramatically steepens end-user learning curves by emulating a standard AV matrix.

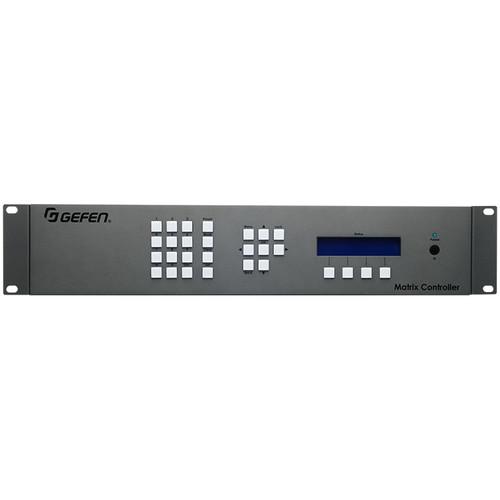

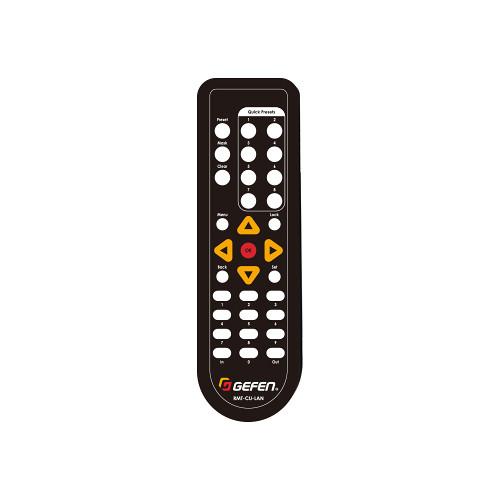

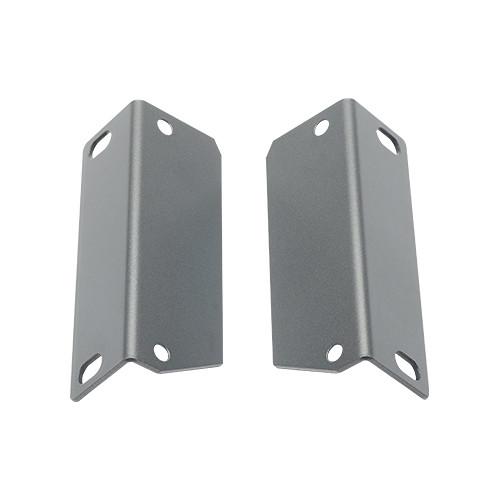

Once installed on a Local Area Network, the EXT-CU-LAN facilitates quick identification of all Gefen video and KVM over IP devices that are on the network, and assigns IP addresses to them. The shape of the matrix controller's enclosure allows for flexible installation options. The controller's slanted front panel facilitates access to push-buttons and allows for better display readability when placed on a conference table. Detachable rack ears (included) facilitate installation of the 2RU enclosure in a standard 19" wide equipment rack. In addition to the front panel, IR remote control (included), and a plethora of user control options via web-enabled handheld devices, this product features Telnet and UDP for integration into an automation control system. The EXT-CU-LAN provides a complete solution for managing video and audio in a variety of applications including broadcast, rental/staging, control rooms, security, digital signage, campus/education, and multi-room AV. It can serve as the backbone of any high performance system that needs to interface with multiple sources and displays, AV formats, and resolutions in a dynamic environment. - Detects, configures, and controls all Gefen video and KVM over IP products
- Built-in web server allows access from any web-enabled device including phones, tablets, and PCs

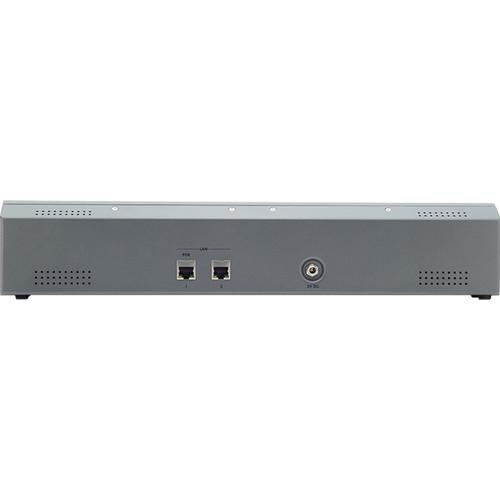

- Two Ethernet ports with independent IP and MAC addresses allow segregation of Video/KVM LAN and control LAN, and help provide separate security layers for administrators and end-users
- Seamless integration with Gefen Syner-G software allows for quick installation and configuration on a network
- Automatic assignment of IP addresses for all Gefen video and KVM over IP devices on a network
- Front panel control push-buttons/display, handheld IR remote, and web server interface allow easy and convenient end-user operation
- Automation control system interface via Telnet and UDP
- PoE (Power over Ethernet) on LAN 1 port eliminates the need for an external power supply
- Password-protected independent user and administrative access
- Easy to read two-line (20 characters per line) Liquid Crystal Display
- System configuration upload/download function
- Locking power supply connector
- 2RU tall rack-mountable enclosure, detachable rack ears included
- Slanted front panel for ergonomic push-button access and display visibility when placed on a table
UPC: 888814321937 In the Box Gefen EXT-CU-LAN Matrix Controller (2RU) IR Remote Control Unit 5 VDC Power Supply Set of Rack Ears 6 x Rubber Feet 4 x Machine Screws Limited 2-Year Warranty Guides & Manuals abvrfrztzswf Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen EXT-CU-LAN Matrix Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Gefen EXT-CU-LAN Matrix Controller can be downloaded in PDF format at the link stated below.
Technical parametersGefen EXT-CU-LAN Specs | Connectors | RJ-45, LAN 1 IP port, PoE-enabled
RJ-45, LAN 2 IP port
DC power locking, power input | | Indicators | LED blue, power | | Controls | 28 x Push button, tact-type | | Display | Liquid crystal, backlit, 2 lines, 20 characters per line | | IR Sensor | On front panel | | Power Supply | 5 VDC | | Power Consumption | 3.4 W maximum | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Operating Humidity | 5 to 90% RH, non-condensing | | Storage Temperature & Humidity | -4 to 158°F (-20 to 85°C)
0 to 95% RH, non-condensing | | MTBF | 50,000 hours | | Dimensions | 19.0 x 3.5 x 2.7" (482 x 88 x 68 mm), with rack ears | | Weight | 3.7 lb (1.7 kg) | | | | Package Weight | 5.75 lb | | Box Dimensions (LxWxH) | 19.5 x 7.4 x 4.1" |
