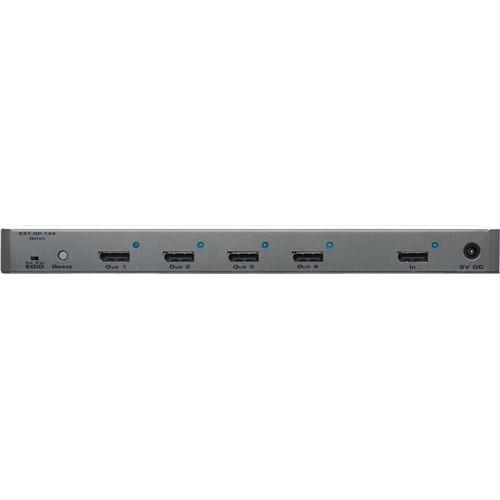

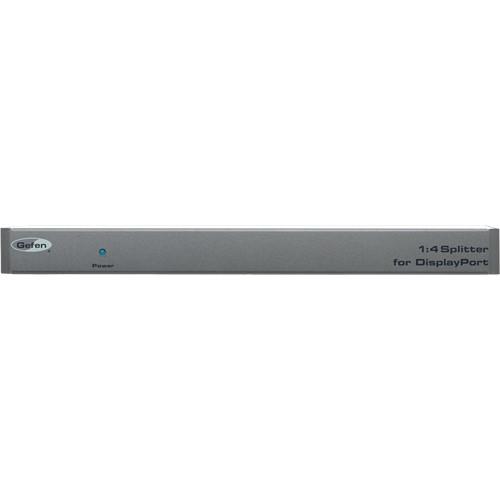

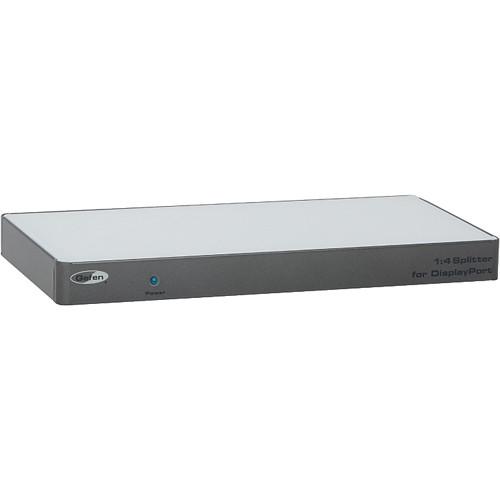

User Manual for Gefen EXT-DP-144 1:4 Splitter for DisplayPort Click to enlarge the picture
Contents of the user manual for the Gefen EXT-DP-144 1:4 Splitter for DisplayPort
- Product category: Distribution Amplifiers (DA's) Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Distribution Amplifiers (DA's)
 |
User manual for the Gefen EXT-DP-144 1:4 Splitter for DisplayPort contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description The Gefen EXT-DP-144 1:4 Splitter for DisplayPort allows a DisplayPort-equipped source to be connected to 4 DispalyPort displays. It supports resolutions of up to 2560 x 1600. EDID management provides rapid integration of DisplayPort sources and displays. Two or more of these splitters can be connected together to create larger video distribution networks. Note: If the source or displays are not 100% DisplayPort compliant, a protocol-specific adapter will be required in order to connect the non-compliant source to the splitter, and to connect the splitter to the non-compliant display. All other DisplayPort devices connected to the output ports must be compatible with at least one resolution/audio format specefied in this EDID. It is reccomended to set, on the source device, a common resolution and audio format shared by all attached devices to ensure a compatible signal output to all connected devices. HDCP content is not supported. - Simultaneously displays one DisplayPort source on up to 4 displays
- Maintains sharp resolutions of up to 2560 x 1600
- EDID Management for rapid integration of source and displays
- Supports up to 7.1 channels of linear PCM audio (32 kHz to 192 kHz sampling rate)
- DisplayPort version 1.1a supported
UPC: 845344047645 In the Box Gefen EXT-DP-144 1:4 Splitter for DisplayPort 6' (1.82m) DisplayPort Cable 5VDC / 3A Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen EXT-DP-144 1:4 Splitter for DisplayPort in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-DP-144 Specs | Maximum Pixel Clock | 300 MHz | | Maximum Resolution | 2560 x 1600 | | Video Connectors | Input: 1 x DisplayPort, female
Output: 4 x DisplayPort, female | | Maximum Data Rate | 10.8 Gb/s | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Power Supply | 5 VDC, 3A | | Power Consumption | 15 W (maximum) | | Certification | UL Listed | | Dimensions (W x H x D) | 10.75 x 1.25 x 5.25" (273.05 x 31.75 x 133.35 mm) |
