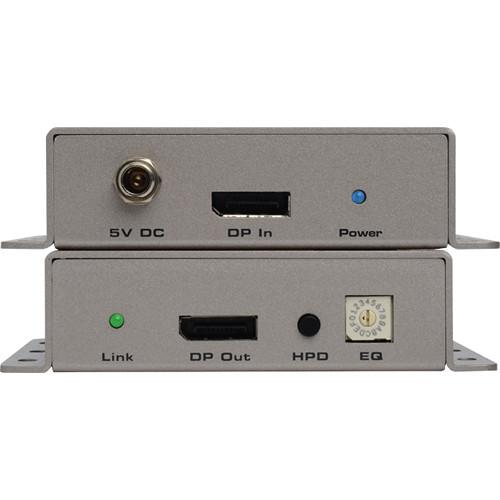

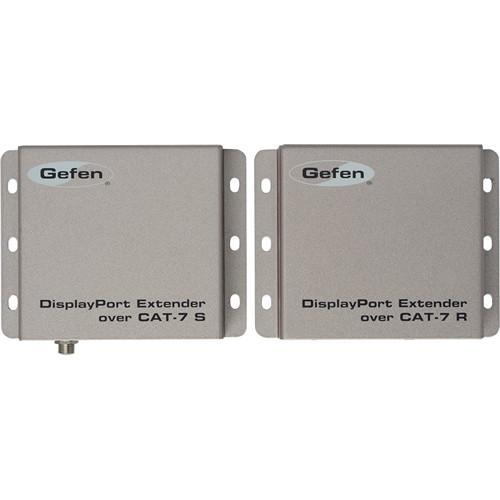

User Manual for Gefen EXT-DP-2CAT7 DisplayPort Extender over CAT-7 Click to enlarge the picture
Contents of the user manual for the Gefen EXT-DP-2CAT7 DisplayPort Extender over CAT-7
- Product category: Video Extenders & Repeaters Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Video Extenders & Repeaters
 |
User manual for the Gefen EXT-DP-2CAT7 DisplayPort Extender over CAT-7 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description The Gefen EXT-DP-2CAT7 DisplayPort Extender over CAT-7 allows the installation of an HDTV display up to 100’ (30.48 m) away from a Display- Port source, using 2 CAT-7 cables. It supports HDCP and resolutions up to 1920 x 1200 (WUXGA) or 1080p full HD when using a single CAT-7 cable, and up to 2560 x 1600 (WQXGA) when using 2 cables.The Receiver unit is powered by the first CAT-7 cable that extends the DisplayPort signal from the sender unit, eliminating the need for an external power supply on the receiver unit. Note: CAT-7 cables should not exceed 100' (30.48m).
Resolutions up to 1920 x 1200 (WUXGA) or 1080p full HD are supported when using a single CAT-7 cable. Two CAT-7 cables must be used to support 2560 x 1600 (WQXGA). - Extends DisplayPort up to 100' (30.48 m)
- Supports resolutions up to 2560 x 1600 over 2 CAT-7 cables, and up to 1920 x 1200 or 1080p full HD over one CAT-7 cable
- Supports DisplayPort 1.1a
- 16-position EQ rotary switch to compensate for cable skew
- HPD auto-calibration button
- Power on and link indicators
- Locking power supply connectors
UPC: 845344005713 In the Box Gefen EXT-DP-2CAT7 DisplayPort Extender over CAT-7 6' (1.82m) DisplayPort cable (M to M) 5VDC power supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen EXT-DP-2CAT7 DisplayPort Extender over CAT-7 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-DP-2CAT7 Specs | Data Rate | Video: Up to 2.7 Gb/s | | Supported Resolutions | Up to 2560 x 1600 over 2 CAT-7 cables, and up to 1920 x 1200 or 1080p full HD over one CAT-7 cable | | Output Voltage | Video: 1.2 V p to p | | Connector | Input (Sender): 1 x DisplayPort, 20-pin, female

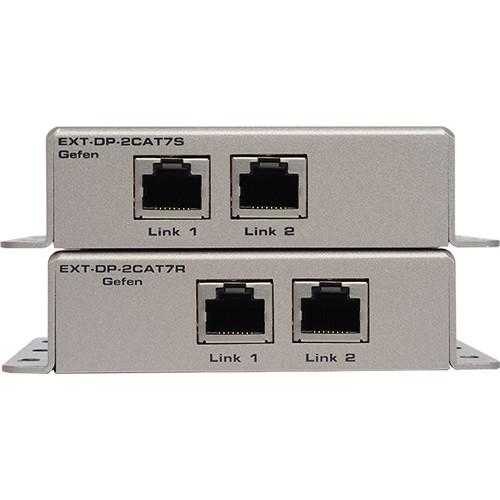

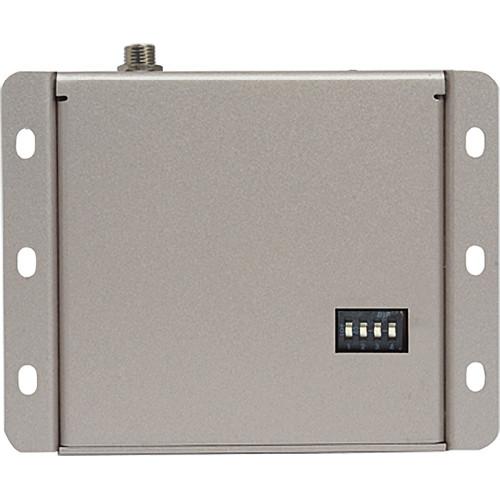

Output (Receiver): 1 x DisplayPort, 20-pin, female | | Link Connectors (Sender/Receiver) | 2 x RJ-45, shielded | | EQ Type | Switch (Receiver):1 x 16-position rotary type | | Calibration | HPD Auto Button (Receiver):1 x tact-type | | Switch | Pre-Emphasis (Sender): 1 x 3-position DIP switch
Boost Level(Sender): 2 x 3-position DIP switch
Drive level (Sender): 1 x 3-position DIP switch | | Indicators | Power On (Sender): Blue LED | | LED Indicator | Good link: (Green)
No link: (Red) | | Power Supply Type | Connector (Sender):5 VDC, locking type | | Operating temperature | 32 to 104°F (0 to 40°C) | | Certification | UL listed, CE complaint | | Dimensions (W x H x D) | (Sender / Receiver): 4.30 x 1.00 x 3.30" (109.22 x 25.40 x 83.82 mm) | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 12.0 x 6.0 x 4.3" |
