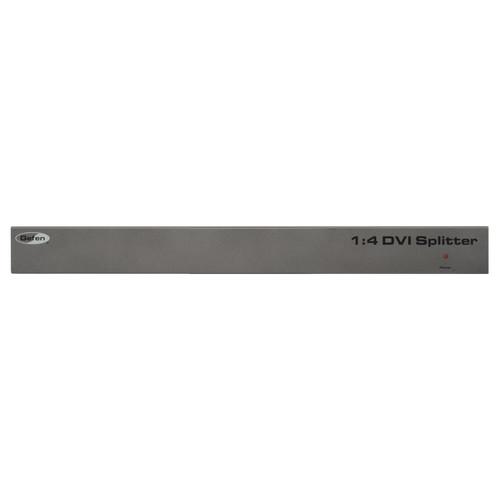

User Manual for Gefen EXT-DVI-144N 1:4 Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Gefen EXT-DVI-144N 1:4 Distribution Amplifier
- Product category: Distribution Amplifiers (DA's) Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Distribution Amplifiers (DA's)
|
User manual for the Gefen EXT-DVI-144N 1:4 Distribution Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description The EXT-DVI-144N 1:4 Distribution Amplifier from Gefen is a solution that allows you to share a high-definition digital video source among various monitors. It features (1) DVI input and (4) DVI outputs. This solution is ideal for homes, offices, recording studios, industrial complexes, or any other setting that requires video in different rooms or on different desktops.
Monitor selection can be controlled through the unit's front-panel push buttons. This unit supports single link 1920 x 1200 video resolution. It also supports the DDWG standard for DVI compliant monitors. - 1x4 DVI Signal Distribution
- This unit allows you distribute (1) DVI source signal to up to (4) displays.
- Standards Support
- It supports the DDWG standard for DVI compliant monitors.
UPC: 845344098654 In the Box Gefen EXT-DVI-144N 1:4 Distribution Amplifier Switcher 6' DVI Cable (M-M) 5VDC Power Supply One-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen EXT-DVI-144N 1:4 Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-DVI-144N Specs | Input | (1) DVI-I 29 pin female (DVI-D digital only) | | Output | (4) DVI-I 29 pin female (DVI-D digital only) | | Bandwidth | 165MHz | | Input | Input Video Signal: 1.2Vp-p
Input DDC Signal: 5Vp-p (TTL) | | Range | Single Link Range: 1920 x 1200 maximum | | Power Source | Power Supply: 5VDC
Power Consumption: 10W maximum | | Dimensions (HxWxD) | 1.75 x 17.75 x 4.25" | | Weight | 4 lbs | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 19.5 x 12.4 x 4.8" |
