User Manual for Gefen EXT-DVI-2-HDSDISSL DVI to HD-SDI Scaler Click to enlarge the picture
Contents of the user manual for the Gefen EXT-DVI-2-HDSDISSL DVI to HD-SDI Scaler
- Product category: Signal Converters Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Signal Converters
|
User manual for the Gefen EXT-DVI-2-HDSDISSL DVI to HD-SDI Scaler contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|

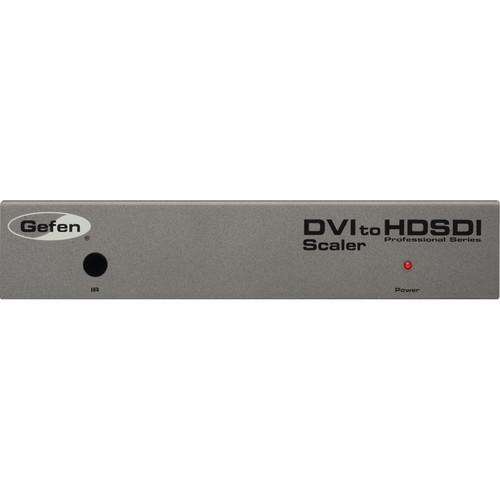

Product description The EXT-DVI-2-HDSDISSL DVI to HD-SDI Scaler from Gefen is a device that scales DVI-D input signals to an SD/HD-SDI single-link output. This unit supports resolutions up to 1080p and also includes Gennum's VXP Scaler onboard for superior picture quality.
This unit also includes a fully integrated sprite-based multi-plane OSD controller and frame-rate conversion to and from any refresh rate. A maximum active image size of 2048 samples x 2048 lines PBP processing for various combinations of video and graphics with alpha blending is also included, as is a pattern mode with color bars and cross-hatch patterns.
Other features include color & gamma correction, noise reduction, detail enhancement, aspect ratio selection, pattern generator mode, multiple-language menu support, and custom-timing output mode. This unit can be controlled with an IR remote control or via an RS-232 connection. Menu options are available in English and French. - DVI to SD/HD-SDI Scaling
- This device scales DVI-D input signals to a SD/HD-SDI Single Link output.
- Superior Picture Quality
- This unit supports resolutions up to 1080p and also includes Gennum's VXP Scaler onboard for superior picture quality.
- Controls
- This unit can be controlled with an IR remote control or via an RS-232 connection.
- Standard Features
- Features on this unit include color & gamma correction, noise reduction, detail enhancement, aspect ratio selection, pattern generator mode, multiple-language menu support, and custom-timing output mode.
UPC: 845344055350 In the Box Gefen EXT-DVI-2-HDSDISSL DVI to HD-SDI Scaler Scaler 6' DVI Cable (M-M) IR Remote Control 5V DC Power Supply User's Manual Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen EXT-DVI-2-HDSDISSL DVI to HD-SDI Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-DVI-2-HDSDISSL Specs | Input | x1 DVI | | Output | x1 HD/SD-SDI | | Connectors | DVI Connector: DVI-I 29 pin female (digital only)
SDI/HDSDI Connector: BNC female | | Bandwidth | Input Video Bandwidth: 1.65 Gbps
Output Video Bandwidth: 1.485 Gbps | | Resolution | Maximum Input Resolution: 2048x1080 Maximum Output Resolution: 2048x1080p24 | | Controls | IR remote control, serial RS232 | | Power Source | Power Supply: 5V DC
Power Consumption: 20 watts (Max.) | | Dimensions (HxWxD) | 1 x 6-1/2 x 6-3/4" | | Weight | 5 lbs | | | | Package Weight | 3.75 lb | | Box Dimensions (LxWxH) | 10.0 x 7.6 x 4.0" |
