User Manual for Gefen EXT-DVI-CP-FM10 DVI Fiber Optic Pigtail Module Extender with HDCP Click to enlarge the picture
Contents of the user manual for the Gefen EXT-DVI-CP-FM10 DVI Fiber Optic Pigtail
- Product category: KVM Extenders Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen KVM Extenders
 |
User manual for the Gefen EXT-DVI-CP-FM10 DVI Fiber Optic Pigtail contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|

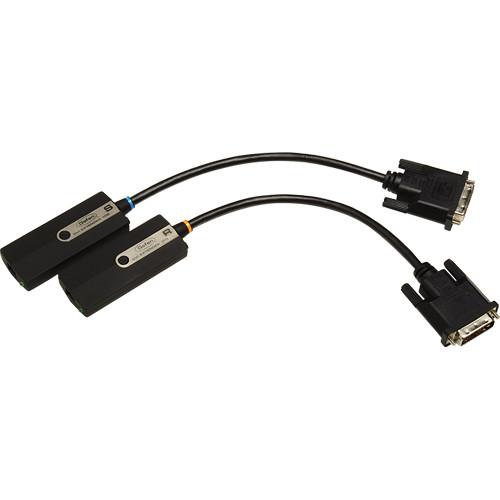

Product description The Gefen EXT-DVI-CP-FM10 DVI Fiber Optic Pigtail Module Extender with HDCP support extends DVI up to 3300’ (1005.84m) using single-strand 50 / 125µm multimode (OM2 / OM3) SC-terminated fiber optic cable to a supporting display at 1920 x1200 WUXGA resolution. Optical signal transmission provides galvanic isolation and immunity to electromagnetic interference compared to similar copper based extension modules.The pigtail design of the sender and receiver modules relieves stress and clutter on the source and displays connector panels. Their compact design makes them suitable for fitting neatly behind equipment for a clean installation, making it a great way to easily extend DVI. Note: The Sender module does not need to be externally powered unless the source does not supply enough power through the DVI connector. 62.5/125µm (OM1) fiber may also be used at reduced maximum range of up to 1000' (304.80 m). - Extends DVI up to 3300' (1005.84m) using a single-strand 50 / 125µm multimode (OM2 / OM3) SC-terminated fiber optic cable
- Supports resolutions up to 1920 x 1200 (WUXGA)
- Fiber optic transmission eliminates electromagnetic interference (EMI)
- Pigtail design relieves stress and clutter on the source and display connector panels
- DDC bi-directional support
- Compact sender and receiver modules provide a clean, easy installation
- FCC and CE compliant for EMI / RFI emission
UPC: 845344090375 In the Box Gefen EXT-DVI-CP-FM10 DVI Fiber Optic Pigtail Module Extender with HDCP 5VDC power supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen EXT-DVI-CP-FM10 DVI Fiber Optic Pigtail Module Extender with HDCP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

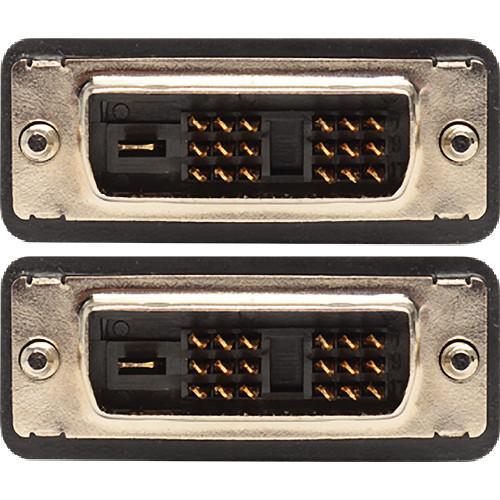

Technical parametersGefen EXT-DVI-CP-FM10 Specs | Maximum Pixel Clock | 165 MHz | | Video Connector | Input (Sender): DVI-D, 19-pin, male

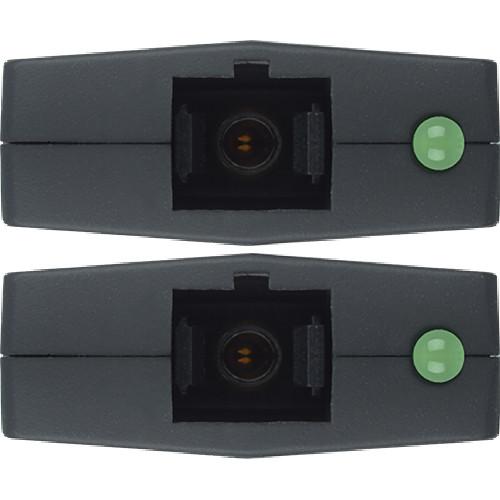

Output ( Receiver): DVI-D, 19-pin, male | | Link Connectors (Sender/Receiver) | 1 x Type SC fiber (50 /125μm) | | Power Supply | Sender:5 VDC, (not needed for most applications)
Receiver:5 VDC | | Power Consumption | Receiver: 1.5 W (maximum) | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to +158°F (-20 to +70°C) | | Relative Humidity | 10 to 80 % | | Certification | FCC and CE compliant for EMI / RFI emission | | Dimensions (W x H x D) | 1.54 x 0.63 x 11.49" (39.11 x 16.00 x 291.84 mm) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 14.0 x 14.0 x 7.1" |
