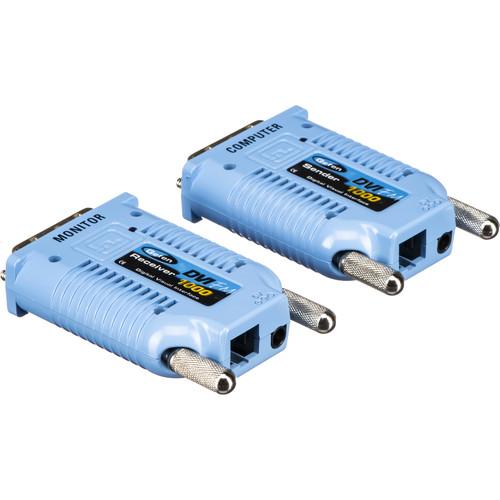

User Manual for Gefen EXT-DVI-FM1000 Fiber Optic DVI Extension Module Click to enlarge the picture
Contents of the user manual for the Gefen EXT-DVI-FM1000 Fiber Optic DVI Extension
- Product category: KVM Extenders Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen KVM Extenders
|
User manual for the Gefen EXT-DVI-FM1000 Fiber Optic DVI Extension contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description The Gefen DVI FM1000 is a fiber optic extender that allows users to extends their DVI display up to 3,280' (1km) away from the video source. The process is accomplished with only two tiny transceivers, using a 100% optical SC fiber solution with a single strand of fiber optic cable.
Automatic EDID Programming enables quick and correct synchronization of the video source to the display without any manual configuration needed. It's a great way to extend DVI video easily and unobtrusively. - The DVI FM1000 sender unit plugs into a DVI port, which can be either a computer source or another device transmitting a DVI signal. The DVI-FM1000 Receiver unit plugs into a DVI display. Once connected, a single strand of multimode SC fiber optic cable connects the sender to the receiver. Power is connected to the FM-1000 receiver using the 5V wall adapter. The result is a crisp and vibrant digital video image over extremely long distances.
- Supports video resolutions up to 1080p, 2K, and 1920 x 1200
- Uses inexpensive and widely available single-strand multimode SC fiber optic cable
- Automatic EDID Programming feature enables quick and correct sync of source to display
- Immunity from electromagnetic influences (EMI) is thanks to all-fiber construction
- Saves space on your desktop and increases productivity
- Eliminates computer noise where you work
- Supports DDWG standard for DVI compliant monitors
UPC: 845344068046 In the Box Gefen EXT-DVI-FM1000 Fiber Optic DVI Extension Module DVI FM1000 Sender DVI FM1000 Receiver 5V DC Power Supply 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen EXT-DVI-FM1000 Fiber Optic DVI Extension Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-DVI-FM1000 Specs | | | Ports | Receiver:
1 x DVI Male (Output)
1 x SC Female (Input)
Transmitter:
1 x SC Female (Output)
1 x DVI Male (Input) | | | | Bandwidth | 165 MHz | | Signal Level | 1.2 Vp-p (Video) | | | | DC Input Power | 5 VDC | | Power Consumption | 2.5 W | | | | Dimensions | 1.6 x 0.6 x 2.6" / 4.1 x 1.5 x 6.6 cm (Transmitter) | | Weight | 1.0 lb / 453.6 g | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 6.5 x 5.7 x 2.7" |
