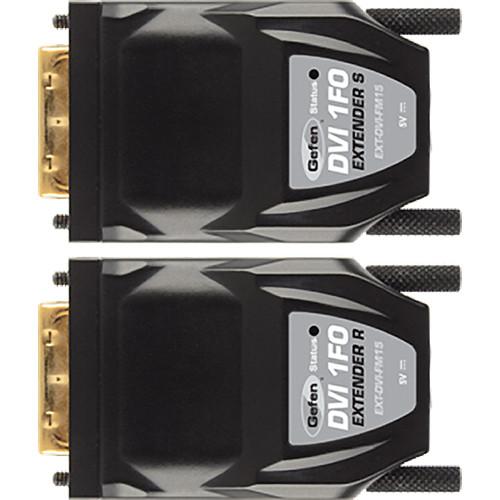

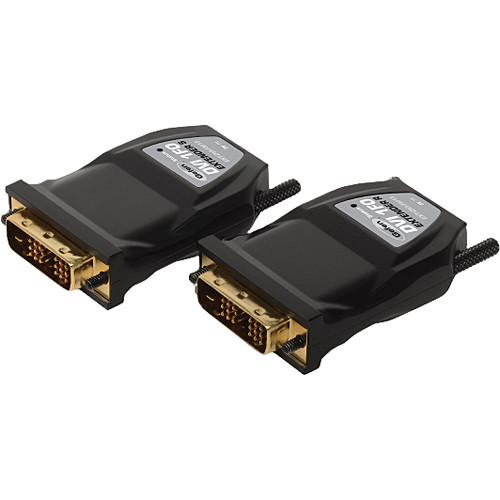

Product description The Gefen EXT-DVI-FM15 DVI Fiber Optic Module Extender with Virtual EDID extends the DVI up to 3,300’ (1,005.84m) to a display supporting resolutions up to 1920 x 1200 (WUXGA) using a single-strand 50 / 125um laser-optimized multimode (OM3) SC-terminated fiber optic cable. Optical signal transmission provides galvanic isolation and immunity to electromagnetic interference compared to similar copper-based extension modules.The Virtual EDID feature programs the display EDID into the sender module to ensure fast integration and compatibility between the source and the display. The attractive and compact Sender and Receiver modules fit neatly behind the equipment for a clean installation, making it a great way to extend DVI. Note: The fiber optic cable is susceptible to dust, which can contribute to loss of pixels. - Extends DVI up to 3,300' (1,005.84m) over a single-strand of OM3 (laser-optimized 50/125μm) multimode fiber optic cable
- Supports resolutions up to 1920 x 1200 (WUXGA)
- Virtual EDID allows EDID copying from the display to the source
- Fiber optic transmission eliminates electromagnetic interference (EMI)
- Suitable for use with Gefen CAB-1SC-xxxx OM1 Fiber Optic Link Cables (sold separately) for distances from 30 to 330' (9.1 to 100.58 m)
- Sturdy metal die-cast enclosures are perfect for professional and industrial applications
- Compact Sender and Receiver modules provide a clean, easy installation
- Supports DDWG standard for DVI monitors.
- FCC and CE compliant for EMI / RFI emission
UPC: 845344044903 In the Box Gefen EXT-DVI-FM15 DVI Fiber Optic Module Extender with Virtual EDID DVI 1FO Extender - Sender Module DVI 1FO Extender - Sender Module 5VDC power supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen EXT-DVI-FM15 DVI Fiber Optic Module Extender with Virtual EDID in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-DVI-FM15 Specs | Maximum Pixel Clock | 165 MHz | | Transmission Range | For DVI:
Up to 3,300' using single-strand OM3 multimode fiber
Up to 1,650' using single-strand OM2 multimode fiber

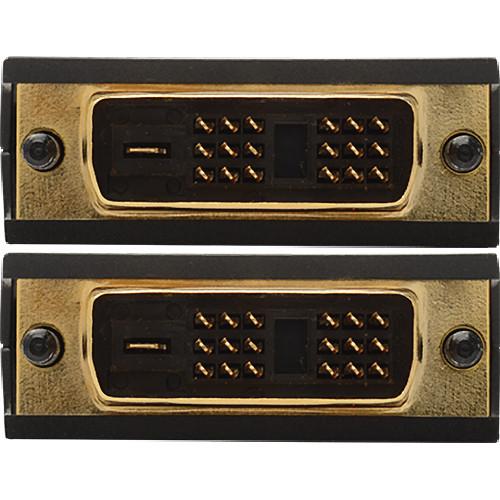

Up to 1,000' using single-strand OM1 multimode fiber | | Supported Resolution | 1920 x 1200 pixels | | Video Connector | Input (Sender): DVI-D, 19-pin, male

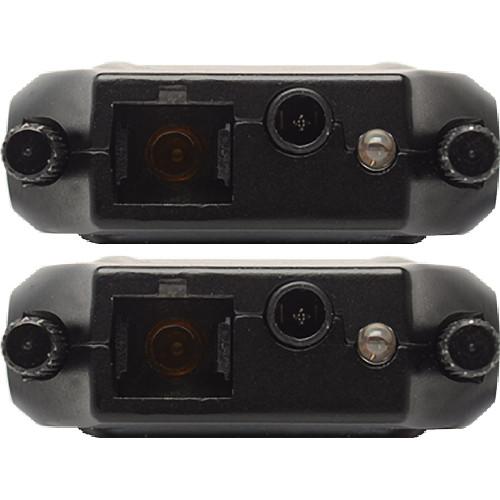

Output (Receiver): DVI-D, 19-pin, male | | Link Connectors (Sender/Receiver) | Type SC fiber (50 /125μm) | | Power Supply (Sender / Receiver) | 5 VDC, (not needed for most applications)
5 VDC | | Power Consumption | Receiver: 0.95 W (maximum) | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -22 to +158°F (-30 to +70°C) | | Relative Humidity | 5 to 85 % | | Certification | FCC, UL, and CE compliant | | Dimensions (W x H x D) | 1.96 x 0.59 x 2.98" (49.78 x 14.98 x 75.69 mm) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 8.9 x 5.1 x 2.1" |
