User Manual for Gefen EXT-DVI-FM2500 Dual Link DVI FO Module Extender with Virtual EDID Click to enlarge the picture
Contents of the user manual for the Gefen EXT-DVI-FM2500 Dual Link DVI FO
- Product category: KVM Extenders Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen KVM Extenders
 |
User manual for the Gefen EXT-DVI-FM2500 Dual Link DVI FO contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|

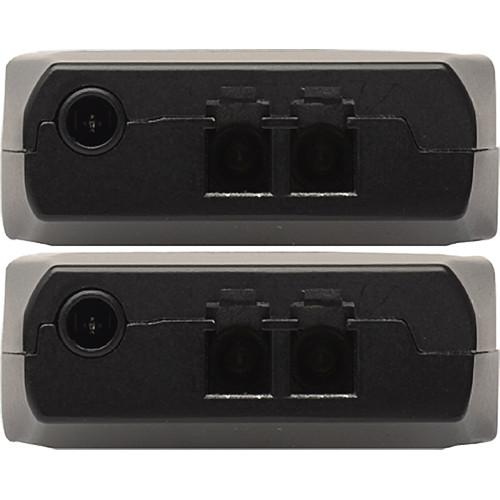

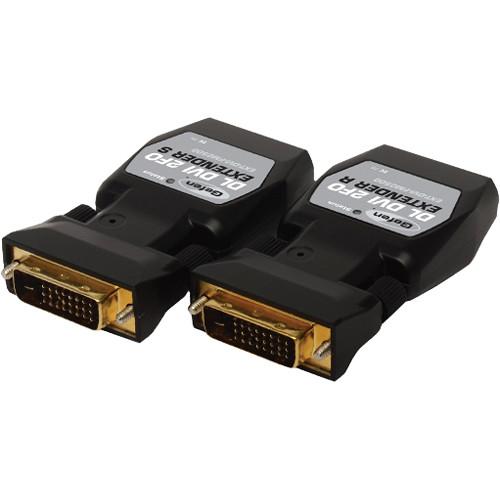

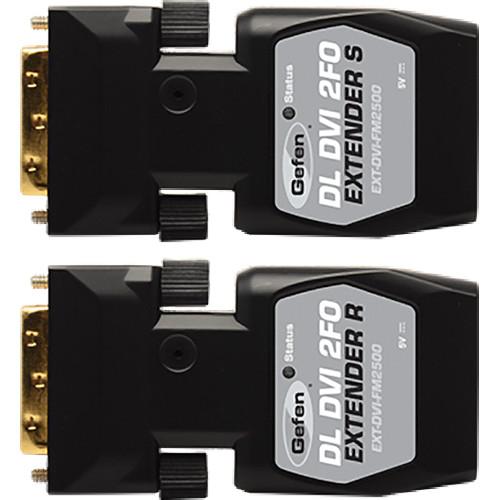

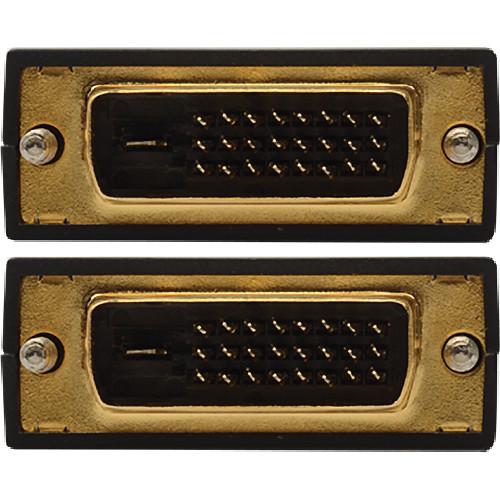

Product description The Gefen EXT-DVI-FM2500 Dual Link DVI FO Module Extender with Virtual EDID extends dual-link DVI up to 3,300’ (1,005.84m) to a display supporting resolutions up to 3840 x 2400 (WQXGA), using a two-strand 50/125μm laser-optimized multimode (OM3) LC-terminated fiber optic cable (sold separately). Optical signal transmission provides galvanic isolation and immunity to electromagnetic interference compared to similar copper-based extension modules.The Virtual EDID feature programs the display EDID into the Sender module to ensure fast integration and compatibility between the source and the display.The attractive and compact Sender and Receiver modules fit neatly behind the equipment for a clean installation, making it a great way to extend dual-link DVI. Note: The fiber optics cable is susceptible to dust, which can contribute to loss of pixels.
The Sender module does not need to be powered externally unless the source does not supply enough power through the DVI connector. - Supports resolutions up to 3840 x 2400 (dual-link DVI)
- Virtual EDID allows EDID copying from the display to the source
- Fiber optic transmission eliminates electromagnetic interference (EMI)
- Sturdy metal die-cast enclosures are perfect for professional and industrial applications
- Compact Sender and Receiver modules provide a clean, easy installation
- Supports DDWG standard for DVI monitors.
- Suitable for use with Gefen CAB-2LC-xxx OM1 Fiber Optic Link Cables for distances from 30 to 330' (9.14 to 100.58m)
- FCC and CE compliant for EMI/RFI emission
UPC: 845344036076 In the Box Gefen EXT-DVI-FM2500 Dual Link DVI FO Module Extender with Virtual EDID DL DVI 2FO Extender - Sender Module DL DVI 2FO Extender - Receiver Module 5VDC power supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen EXT-DVI-FM2500 Dual Link DVI FO Module Extender with Virtual EDID in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-DVI-FM2500 Specs | Maximum Pixel Clock | 2 x 165 MHz | | Transmission Range | Dual-Link DVI:
Up to 3,300.00' (1,005.84 m) over 2 strands of OM3 (laser-optimized 50 / 125μm) multimode fiber optic cable
Up to 1,650.00'(502.92 m) over 2 strands of OM2 (conventional 50 / 125μm) multimode fiber optic cable
Up to 1,000.00' (304.80 m) over two strands of OM1 (62.5 / 125μm) multimode fiber optic cable
Note: Fiber optic cables sold separately | | Video Connector | Input (Sender): DVI-D, 24-pin, male
Output(Receiver): DVI-D, 24-pin, male | | Link Connectors (Sender/Receiver) | (2) Type LC | | Power Supply (Sender / Receiver) | 5 VDC (not needed for most applications)
5 VDC | | Power Consumption | Receiver: 1.5 W (maximum) | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -22 to +158°F (-30 to +70 °C) | | Storage Relative Humidity | 5 to 85 % | | Certification | FCC, UL, or CE complaint | | Dimensions (W x H x D) | 1.54 x 0.59 x 2.83" (39.11 x 14.98 x 71.88 mm) | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 9.0 x 5.0 x 2.2" |
