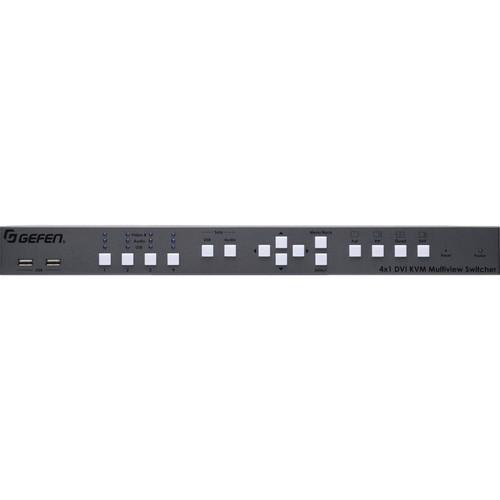

Product description Multi-Monitors: Maximizing Multitasking Read More The EXT-DVIK-MV-41 4x1 DVI KVM Multiview Switcher from Gefen is designed for controlling four computers from a dual monitor workstation. The operator can observe up to 4 pictures on one screen, while a second monitor can be switched to display the picture that needs closer attention.
This product is HDCP compliant, supporting input and output resolutions up to 1920 x 1200 (WUXGA) and 1080p Full HD. The two front panel USB ports and/or bi-directional audio (mic and headphones/speaker) can be independently routed from any of the four computers to the workstation.
Four default factory presets provide most commonly used arrangements of windows on a display, including single window output, picture-in-picture, quad view, and picture-and-picture. The 4x1 DVI KVM Multiview Switcher is controllable via front panel, keyboard/mouse, and RS-232. An intuitive on-screen graphical user interface simplifies system configuration and operation. Up to 8 DVI KVM switchers can be daisy-chained together to create an elaborate 32 computer workstation. This product is field firmware upgradable with the Gefen Syner-G software suite. - Dual screen workstation set-up with full screen and multiview
- Four multiview modes including full screen, quad-view, PIP (picture-in-picture), and PAP (picture-and-picture)
- Input and output resolutions up to 1920 x 1200 (WUXGA) and 1080p Full HD
- Controlled via front panel, keyboard/mouse, and RS-232.
- Comprehensive and easy-to-use on screen display.
- Supports cascading of up to 8 units to create a 32 computer system controlled from one keyboard/mouse workstation
- Firmware update via USB port using the Gefen Syner-G software
- Locking power supply connector
- Rack-mountable using the included brackets
UPC: 888814051124 In the Box Gefen EXT-DVIK-MV-41 4x1 DVI KVM Multiview Switcher Limited 2-Year Manufacturer Warranty Brochure PDF 231kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen EXT-DVIK-MV-41 4x1 DVI KVM Multiview Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-DVIK-MV-41 Specs | Pixel Clock Frequency | Maximum Pixel Clock: 165 MHz | | TMDS Clock Frequency | Maximum TMDS Clock: 225 MHz | | Video Input Connectors | 4 x DVI-I, 29-pin, female (digital only) | | Video Output Connectors | 2 x DVI-I, 29-pin, female (digital only) | | USB Connectors | Front Panel: 2 x Type A, 5 V DC at 1 A maximum shared current
Rear Panel: 2 x Type A, 5 V DC at 1 A maximum shared current
Rear Panel: 4 x Type B | | Microphone Input | 1 x 3.5 mm mini-mono jack | | Microphone Output | 4 x 3.5 mm mini-mono jacks | | Audio Input / Output | L/R Audio Inputs: 4 x 3.5 mm mini-stereo jacks
L/R Audio Output: 1 x 3.5 mm mini-stereo jack | | Power Switch | Main Power Switch: 1 x toggle, on back panel | | Ground Contact | 1 x Machine screw, on back panel | | Front Panel Controls | 10 x tact-type, blue backlight
6 x tact-type | | Power Indicators | 1 x LED, blue | | Video B Indicators | 4 x LEDs, blue | | Audio Indicators | 4 x LEDs, blue | | USB Indicators | 4 x LEDs, blue | | Power Supply Connector | 1 x 3-pin, locking | | Power Supply | 12 V DC | | Power Consumption | 40 W maximum | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 5 to 90% RH, non-condensing | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Storage Humidity | 0 to 95% RH, non-condensing | | MTBF | 50,000 hours | | Dimensions | 17.2 x 1.2 x 7.9" / 437 x 30 x 200 mm | | Weight | 3.7 lb / 1.6 kg | | | | Package Weight | 6.25 lb | | Box Dimensions (LxWxH) | 22.4 x 9.8 x 4.2" |
