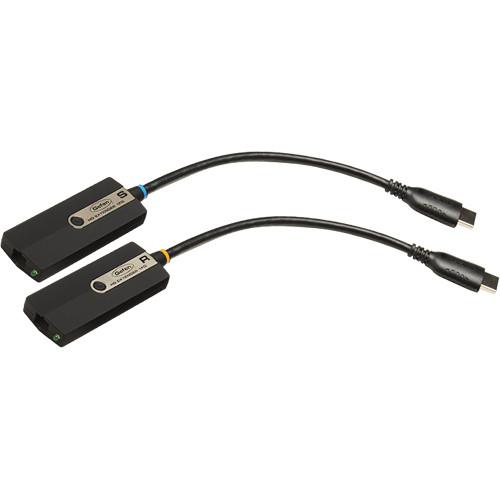

Product description The Gefen EXT-HD-CP-FM10 HDMI Fiber Optic Pigtail Module Extender with HDCP extends HDMI up to 3,300‘ (1,000m) using a single-strand 50 / 125µm multimode (OM2 / OM3) SC-terminated fiber optic cable. This extender supports resolutions up to 1080p full HD and HD lossless audio formats like LCPM 7.1 audio, Dolby Digital Plus, Dolby TrueHD, and DTS-HD Master Audio.The optical signal transmission provides galvanic isolation and immunity to electromagnetic interference as compared to similar copper-based extension modules. The pigtail design of the sender and receiver modules relieves stress and clutter on the source and display connector panels. Being compact in design, this extender is suitable for neatly fitting behind the equipment for a clean installation, thus making it easy to extend HDMI. - Extends HDMI up to 3,300' (1,000m) using a single-strand 50 / 125µm multimode (OM2 / OM3) SC-terminated fiber optic cable
- Supports resolutions up to 1080p full HD
- Supports HD lossless audio: LPCM 7.1 audio, Dolby Digital Plus, Dolby TrueHD, and DTS-HD Master Audio
- Fiber optic transmission eliminates electromagnetic interference (EMI)
- Pigtail design relieves stress and clutter on the source and display connector panels
- DDC bidirectional support
- Compact sender and receiver modules provide a clean, easy installation
- FCC and CE compliant for EMI / RFI emission
UPC: 845344011882 In the Box Gefen EXT-HD-CP-FM10 HDMI Fiber Optic Pigtail Module Extender with HDCP HD Extender 1FO Sender Pigtail Module HD Extender 1FO Receiver Pigtail Module 5VDC Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen EXT-HD-CP-FM10 HDMI Fiber Optic Pigtail Module Extender with HDCP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-HD-CP-FM10 Specs | Maximum Pixel Clock | 225 MHz | | Video Input Connector | Sender: 1 x HDMI type-A, 19-pin, male | | Video Output Connector | Receiver: 1 x HDMI type-A, 19-pin, male | | Link Connectors (Sender/Receiver) | SC-terminated (for 50 / 125µm or 62.5 / 125µm fiber) | | Power Supply | Sender: 5 VDC (not needed for most applications)
Receiver: 5 VDC | | Power Consumption | Receiver: 1.5 W (maximum) | | Operating Temperature | 32 to 122°F (0 to +50°C) | | Storage Temperature | -4 to 158°F (-20 to +70°C) | | Relative Humidity | 10 to 80% | | Dimensions (W x H x D) | 1.18 x 0.47 x 10.71" (29.97 x 11.93 x 272.03 mm) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 13.8 x 7.1 x 2.5" |
