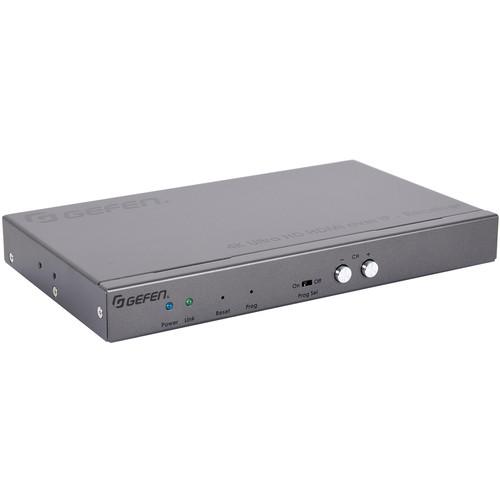

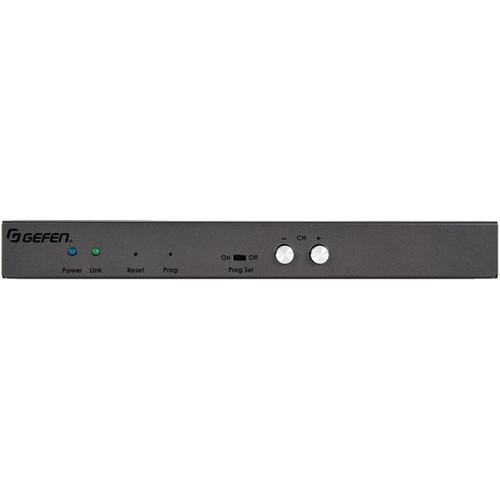

Product description Provided by third party: The 4K Ultra HD HDMI over IP Receiver features maximum input resolution of 4K 60 Hz 4:2:0, and maximum output resolution of 4K 30 Hz 4:4:4. HDCP 2.2 and 1.4 are also supported. Video, RS-232 2-way IR, and audio can be routed independently between any Sender and Receiver unit, allowing end users to control any of the sources and the displays within their network. With this greatly expanded array of advanced features and performance, the Gefen AV over IP products fully address the ever-growing needs of systems integrators.
- Key Features
-

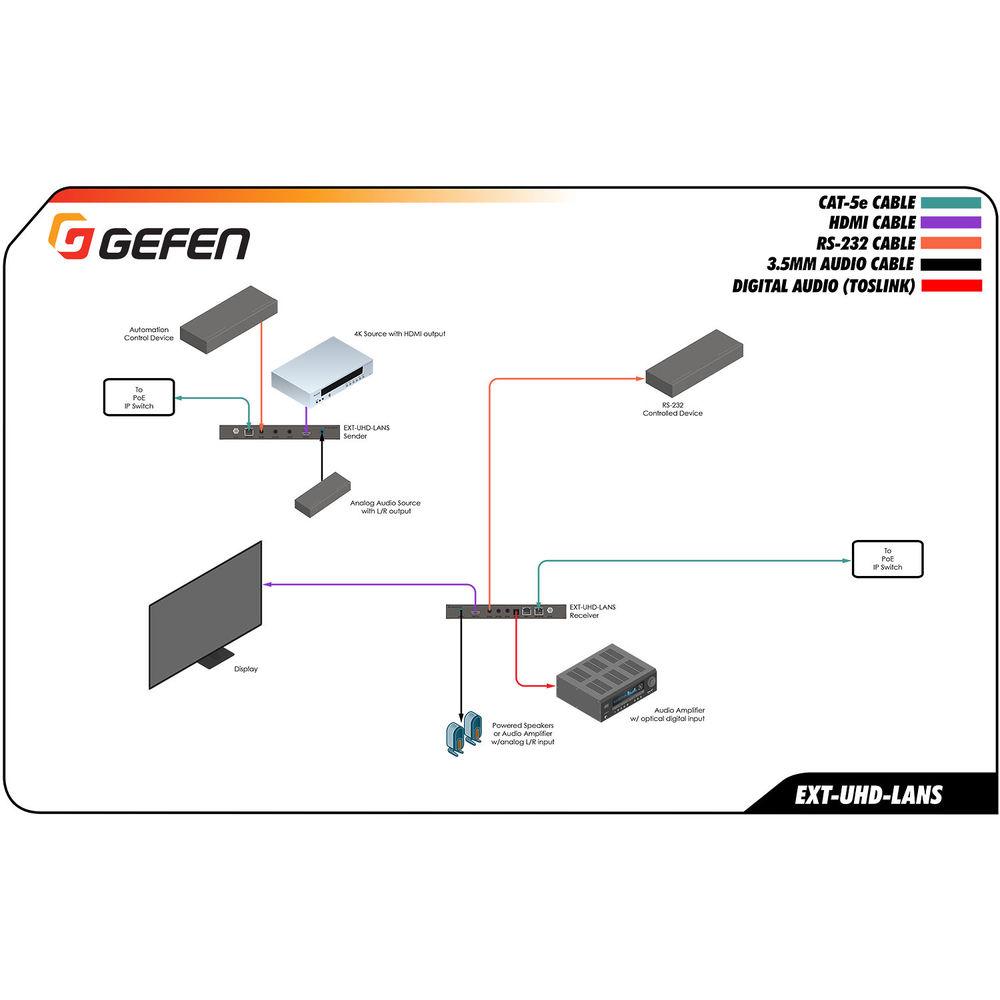

- Extends HDMI, RS-232, analog audio, and IR, using a Gigabit Local Area Network
- Independent video, RS-232, IR, and audio routing
- Supports input resolutions up to 4K 60Hz 4:2:0
- Supports output resolutions up to 4K 30Hz 4:4:4
- Uncompressed LPCM digital audio up to 7.1 channels
- Up to 7.1 channels of HBR (High Bit Rate) digital audio including Dolby Atmos, Dolby TrueHD, DTS: X, and DTS-HD Master Audio
- Integrated scaler ensures maximum compatibility and best possible viewing experience with different contents and displays
- Enhanced API for added functionality with third-party control systems
- Built-in web interface, Telnet, and UDP
- Two-port Gigabit Ethernet switch
- Locking power supply connectors
- Low-profile receiver enclosure features an IR Extender port and can be hidden away behind the display
UPC: 888814999716 Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen EXT-UHD-LANS-RX 4K HDMI Over IP Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

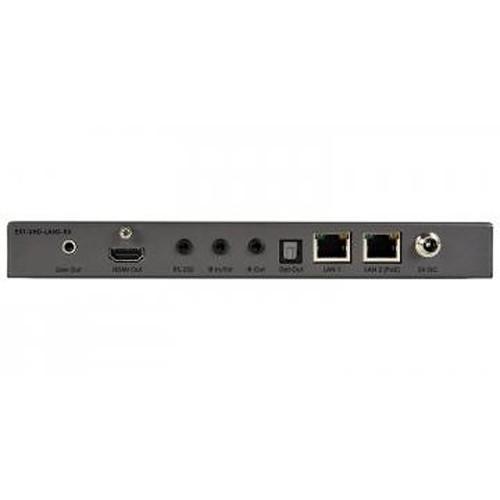

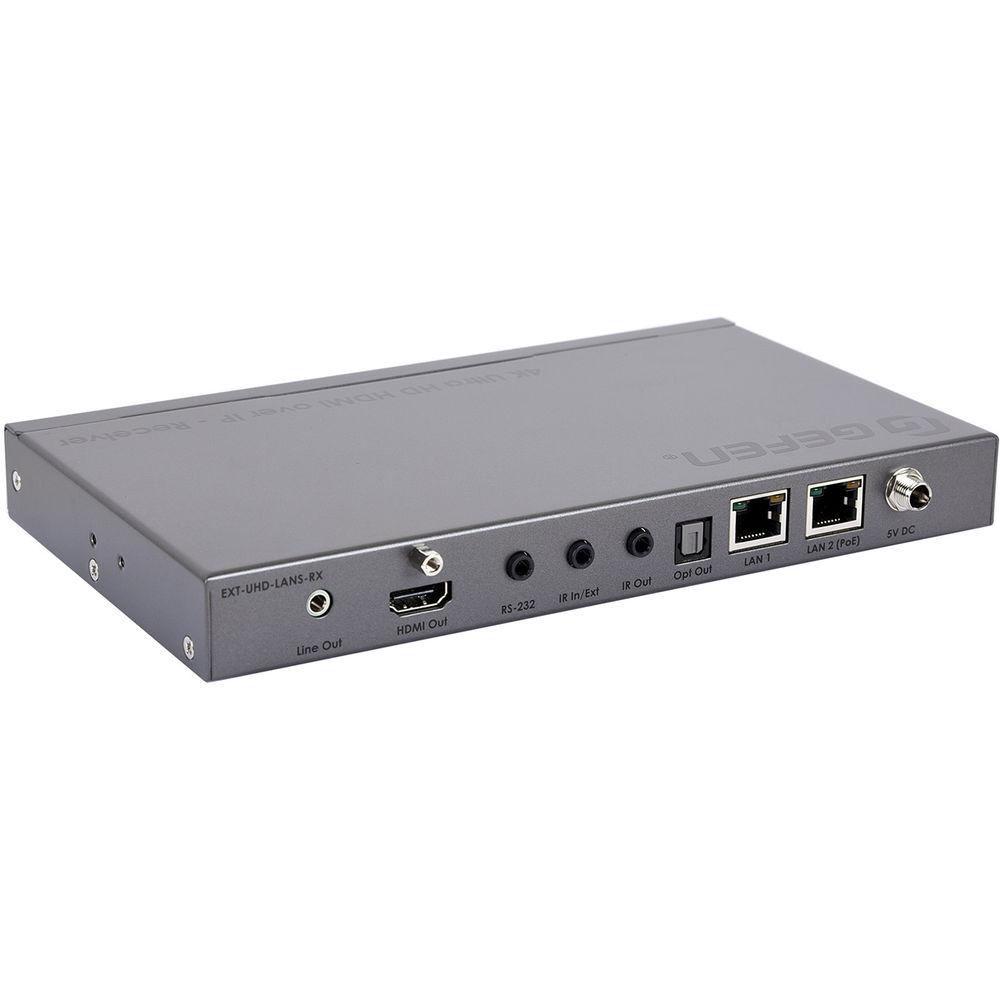

Technical parametersGefen EXT-UHD-LANS-RX Specs | | | Device Type | Video/audio/infrared/serial extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Data Link Protocol | HDMI | | Max Resolution | 2160p @ 60 Hz | | Features | Firmware upgradable, LPCM 7.1 support, built-in audio de-embedder, HDR support | | Compliant Standards | IEEE 802.3af, HDCP 1.4, HDCP 2.2 | | | | Interfaces | 1 x HDMI (output) - 19 pin HDMI Type A
1 x IR (input) - mini jack
1 x IR (output) - mini jack
1 x TOSLINK (output)
1 x audio (output) - mini jack
1 x RS-232 - mini jack
1 x Ethernet 1000Base-T (PoE) - RJ-45
1 x Ethernet 1000Base-T - RJ-45 | | | | Included Accessories | IR extender, 4 self-adhesive rubber feet, mounting brackets | | Cables Included | 1 x serial adapter | | | | Power Over Ethernet (PoE) | PoE | | Power Device | External power adapter | | | | Package Weight | 2.975 lb | | Box Dimensions (LxWxH) | 13.2 x 8.15 x 3.7" |
