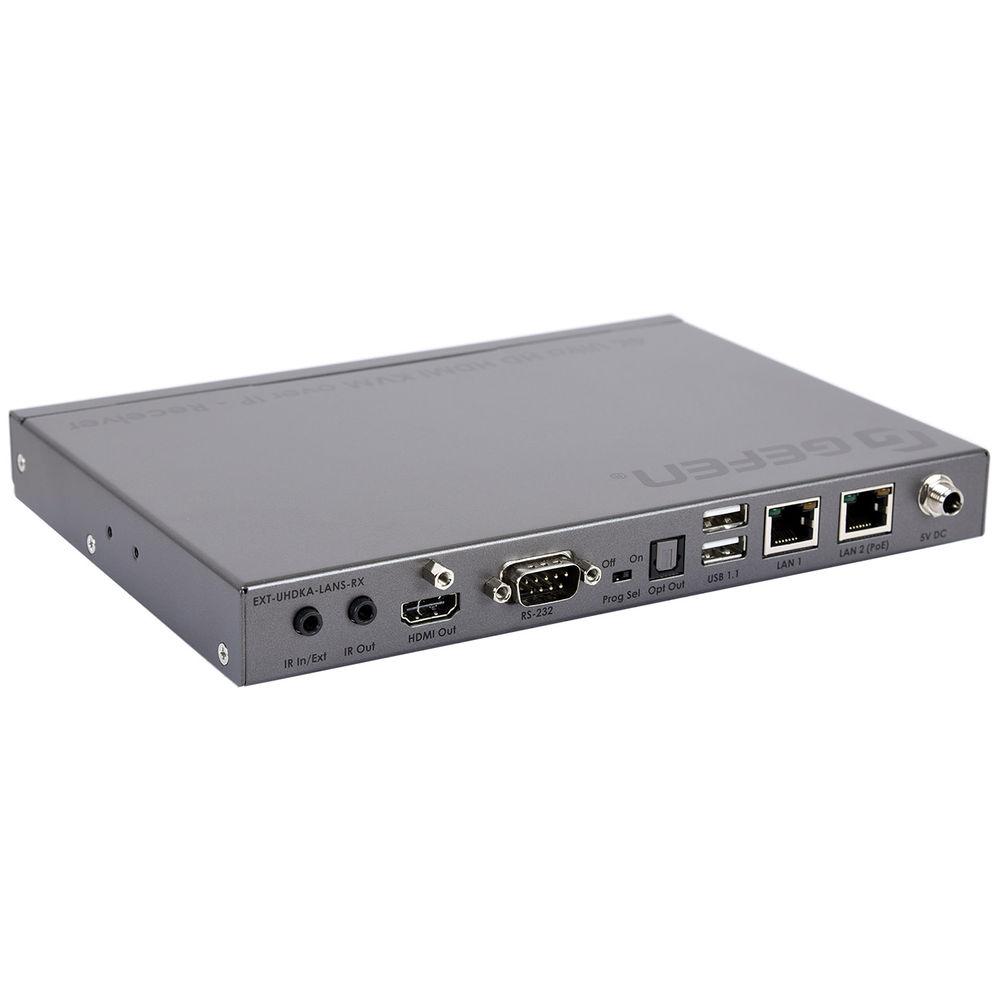

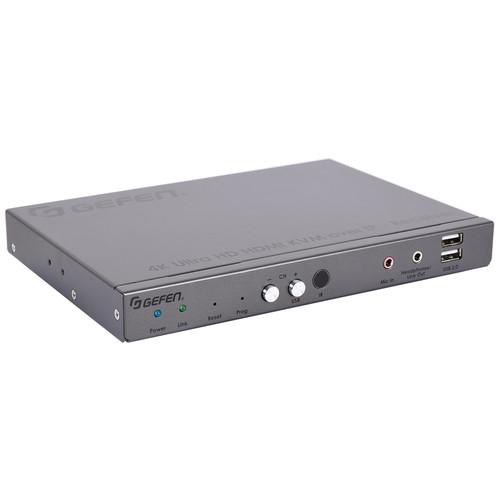

User Manual for Gefen EXT-UHDKA-LANS-RX 4K HDMI KVM over IP Receiver Click to enlarge the picture
Contents of the user manual for the Gefen EXT-UHDKA-LANS-RX 4K HDMI KVM over
- Product category: KVM Extenders Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen KVM Extenders
 |
User manual for the Gefen EXT-UHDKA-LANS-RX 4K HDMI KVM over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description Provided by third party: Gefen's AV over IP solutions continue the tradition of providing high performance, scalable, expandable, and secure AV routing and distribution over a standard Gigabit local area network.
The Receiver features a built-in scaler to help optimize the image for a variety of displays and different viewing environments. It also includes a powerful video wall controller that accommodates any screen configuration up to 16x16 and provides great flexibility in sizing and manipulating live and signage content in demanding installations. Digital and analog audio break-out de-embeds audio from the video and sends it to a separate audio system, enhancing the impact of presentations. The Receiver's integrated USB hub with two USB 2.0 and two USB 1.1 ports accommodates touch panels, keyboard and mouse, and a variety of supported devices. This feature, along with analog audio inputs and outputs, make these products perfect to use in collaborative and interactive installations. To ensure maximum versatility and compatibility, the audio outputs on the Receiver units are compatible with both headphones and line level devices such as powered speakers.
- Key Features
-

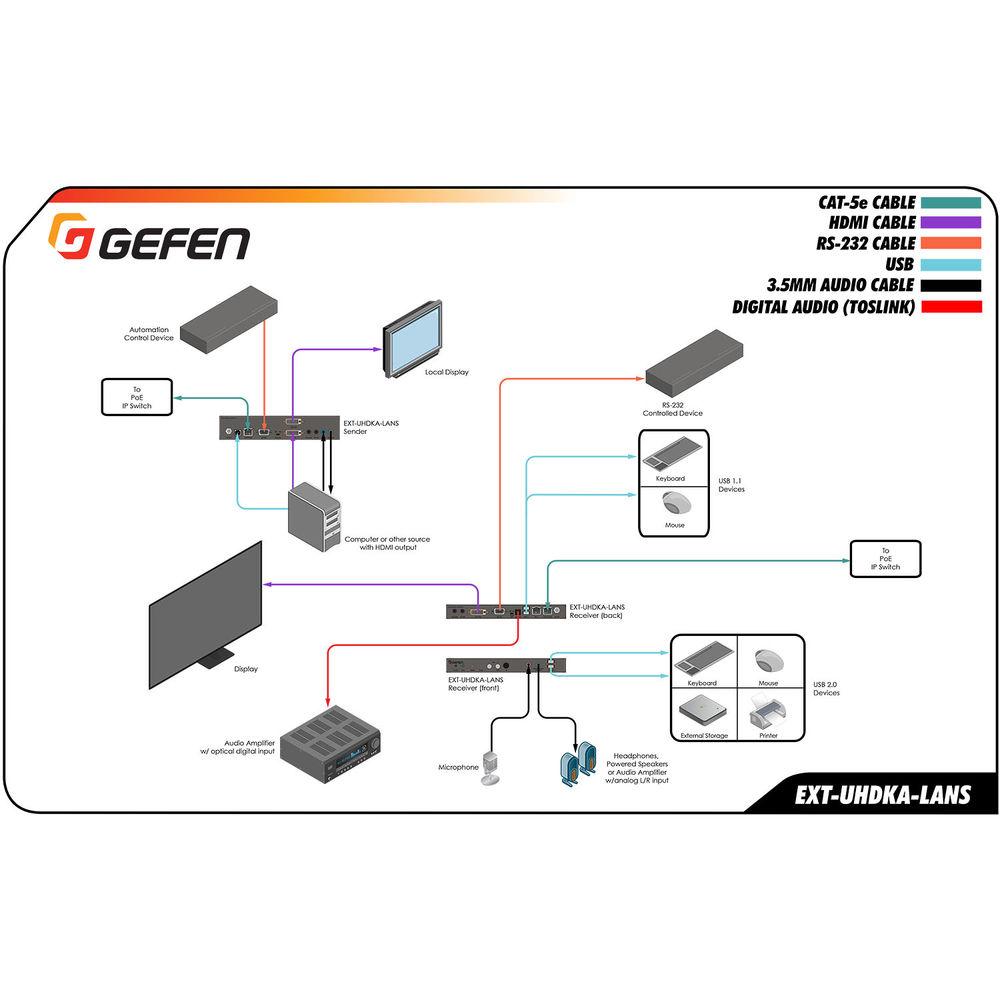

- Extends HDMI, USB, RS-232, 2-way analog audio, and IR, using a Gigabit Local Area Network
- Independent video, USB, RS-232, IR, and audio routing
- Backward-compatible with first generation Gefen AV over IP products
- Integrated scaler ensures maximum compatibility and best possible viewing experience with different contents and displays
- Enhanced API for added functionality with third-party control systems
- Built-in web interface, Telnet, and UDP
- Two-port Gigabit Ethernet switch built into the Receiver unit
- Mode switch on Sender for sharpness or motion-optimization of image
- Field-updatable firmware via EXT-CU-LAN controller or the built-in web server interface
- Locking power supply connectors
UPC: 888814999730 Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen EXT-UHDKA-LANS-RX 4K HDMI KVM over IP Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-UHDKA-LANS-RX Specs | | | Device Type | Video/audio/infrared/serial extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Data Link Protocol | HDMI | | Max Resolution | 2160p @ 60 Hz | | Max Video Bandwidth | 165 MHz | | Max Transfer Distance | 328 ft | | Features | LPCM 7.1 support, Dolby TrueHD support, DTS-HD Master Audio support, built-in audio de-embedder, Dolby Atmos support, DTS:X support, HD (HBR) audio | | Compliant Standards | HDCP 1.4, HDCP 2.2 | | | | Interfaces | 1 x HDMI (output) - 19 pin HDMI Type A
1 x IrDA (input) - mini jack
1 x IrDA (output) - mini jack
1 x microphone - mini jack
1 x headphones - mini jack
2 x USB 2.0 - Type A
1 x RS-232 - DB-9
1 x network (PoE) - RJ-45
1 x network - RJ-45
2 x USB - Type A
1 x TOSLINK | | | | Included Accessories | 4 self-adhesive rubber feet, mounting brackets | | MTBF | 50,000 hours | | | | Power Device | External power adapter | | Power Consumption Operational | 22 Watt | | | | Width | 8.4 in | | Depth | 5.9 in | | Height | 1 in | | Weight | 31.74 oz | | | | Service & Support | Limited warranty - 3 years | | | | Min Operating Temperature | 32
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
