User Manual for Gefen EXT-USB-400FON USB 2.0 Extender Click to enlarge the picture
Contents of the user manual for the Gefen EXT-USB-400FON USB 2.0 Extender
- Product category: USB Extenders Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen USB Extenders
 |
User manual for the Gefen EXT-USB-400FON USB 2.0 Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description The Gefen EXT-USB-400FON USB 2.0 Extender provides extension capabilities for any device or USB application that requires a peripheral connection over a distance, such as a USB camera, USB hard drive, keyboard or mouse. Supporting all USB 2.0 devices, it extends up to 1640' (500m) using fiber optic cables, allowing you to place a remote USB sensor at a great distance from the sender unit. The unit is housed in a metal box to provide better RF shielding. With an EMI-free solution, the extender can enable the use of USB devices for applications at remote locations where conditions prohibit or restrict access by people e.g. harsh environments, medical facilities, and oilrigs. The receiver end of the extender is a USB 2.0 4-port hub. The sender unit is connected to the source using the supplied USB short cable, and USB peripherals are connected to the receiver unit at the remote end. Two LC-terminated multimode fiber optic cables are used to link the sender to the receiver. The receiver unit can be powered by a 5V DC power supply whereas the sender unit can be powered by the USB bus. The USB 2.0 extender is fully backward compliant with compatibility for USB 1.1 and USB 2.0 specifications as certified by the USB Implementer's Forum. It provides optical isolation from over-voltage and static electricity, and supports both low-speed and high-speed USB devices. While the extender supports express devices with a speed of up to 480mb/s, it is also compatible with other USB peripherals used in devices like PlayStation and WII and supports USB using all operating systems including Windows, Mac OS, and Linux. - Provides extension capabilities for any device or USB application that requires a connection over a long distance, such as a USB camera, USB hard drive, keyboard, or mouse
- Optical technology is used to extend the range of USB 2.0 devices up to 1640' (500m) using fiber-optic cables

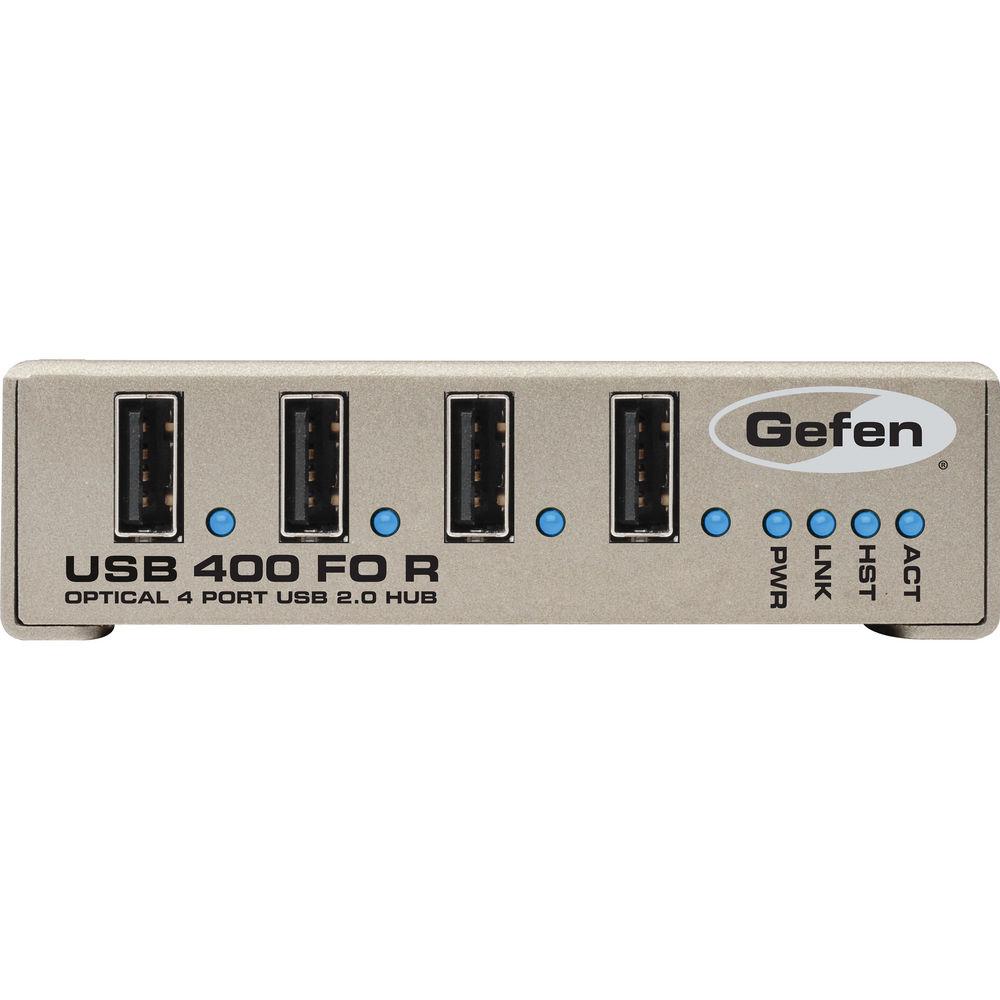

- Receiver unit is also a USB 2.0 4-port hub
- Housed in a metal case for better RF shielding
- EMI-free solution for using USB at remote locations
- Can be used in situations where control of devices via USB is necessary in restricted areas
- Fully backward compliant with compatibility for USB 1.1 and USB 2.0 devices
- Provides optical isolation from over-voltage and static electricity
- Supports both low-speed as well as high-speed USB devices
- Supports express devices with a speed of up to 480mb/s
- Compatible with USB peripherals used in devices like PlayStation and WII
- Supports USB under all operating systems including Windows, Mac OS, and Linux

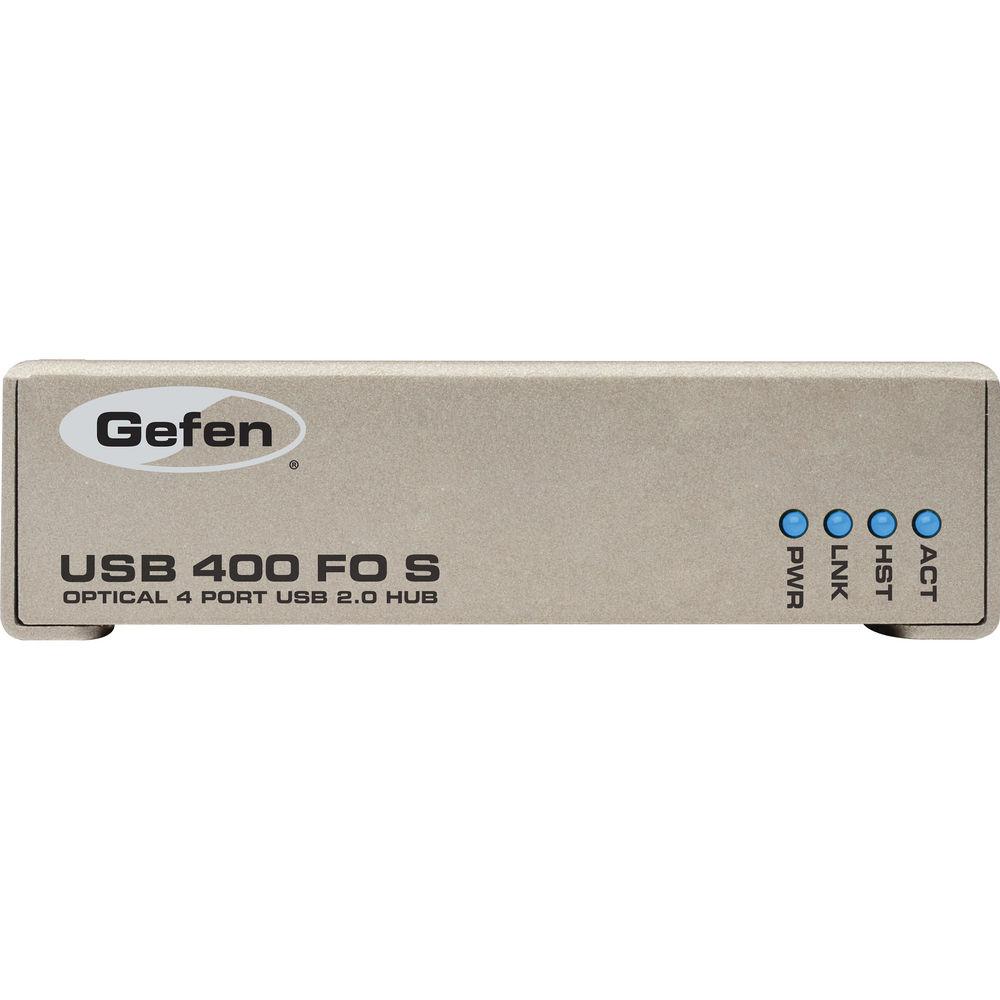

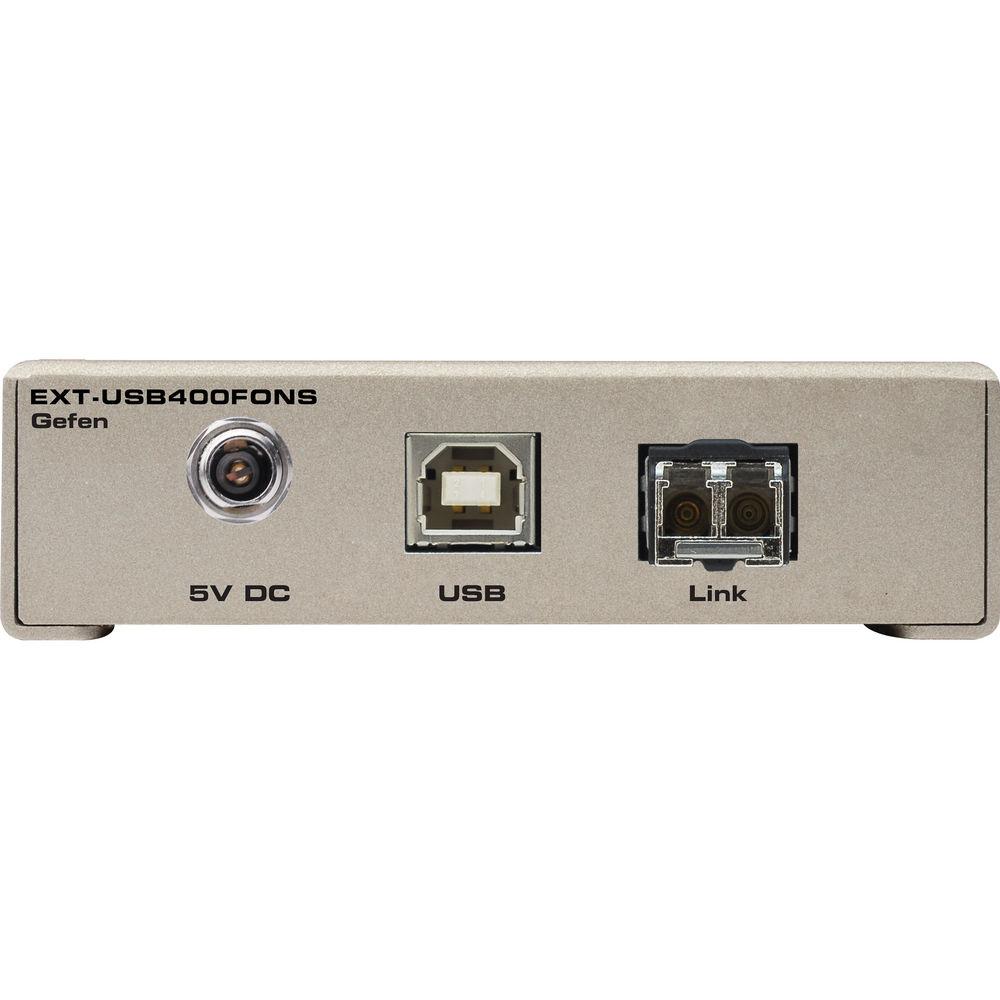

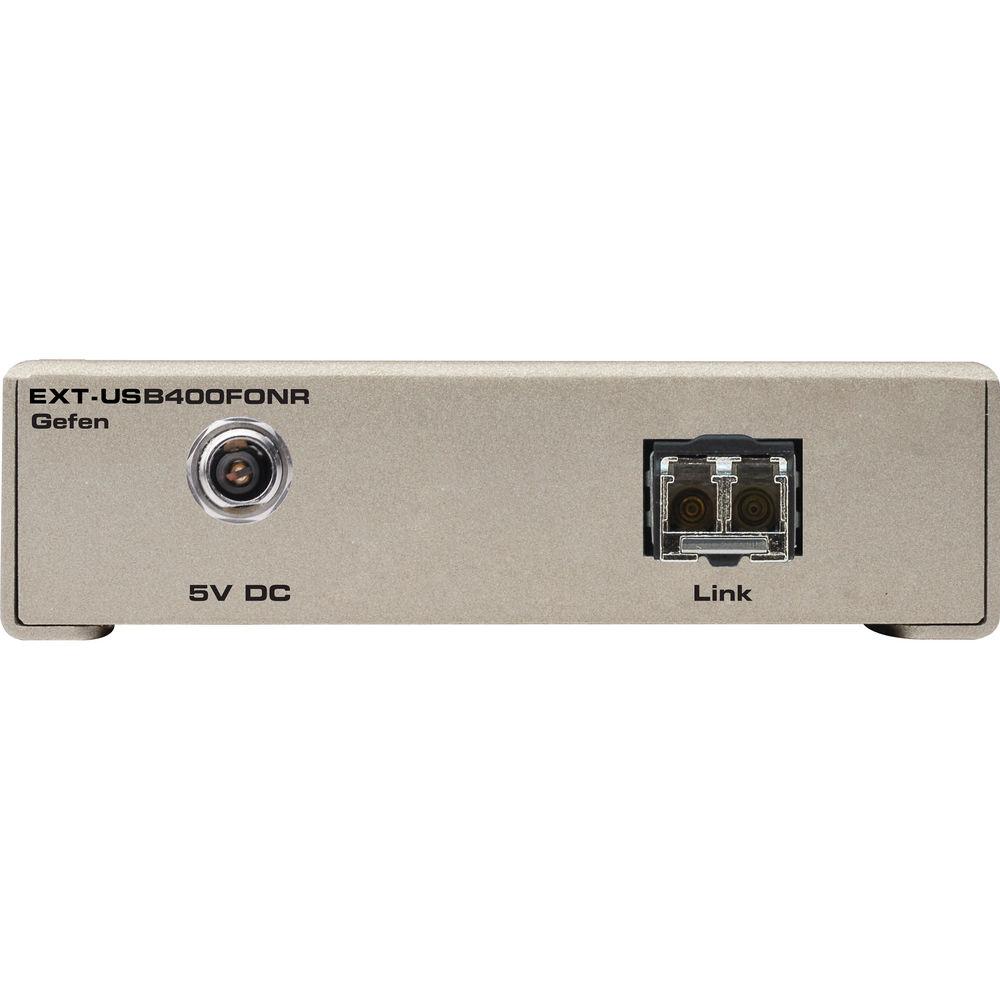

UPC: 845344097602 In the Box Gefen EXT-USB-400FON USB 2.0 Extender USB 400FOS Sender Unit USB 400FOR Receiver Unit 6' A to B USB Cable 5VDC Power Supply User's Manual 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen EXT-USB-400FON USB 2.0 Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-USB-400FON Specs | USB | Speed: 480Mbps
Input: type B
Output: type A | | Link | Link Connector: (2) LC | | Range | 1640' (500m) over 50/125μm Multi-Mode fiber optic cable | | Power Requirements | 5VDC (power adapter supplied) | | Operating Temperature | 32 - 122°F (0 - 50°C) | | Dimensions (WxDxH) | (Sender)
4 x 3 x 1.3" (102 x 76 x 33mm)
(Receiver)
4 x 3 x 1.3" (102 x 76 x 33mm) | | Shipping Weight | 2 lbs (0.9kg) | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 13.7 x 6.3 x 4.1" |
