User Manual for Gefen EXT-USB-MINI2N Mini USB-2 Extender Click to enlarge the picture
Contents of the user manual for the Gefen EXT-USB-MINI2N Mini USB-2 Extender
- Product category: USB Extenders Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen USB Extenders
 |
User manual for the Gefen EXT-USB-MINI2N Mini USB-2 Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|

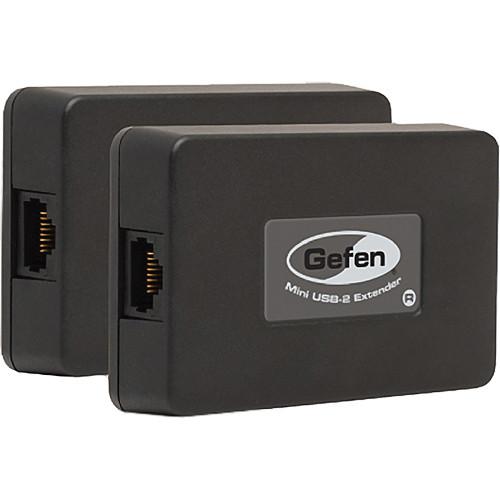

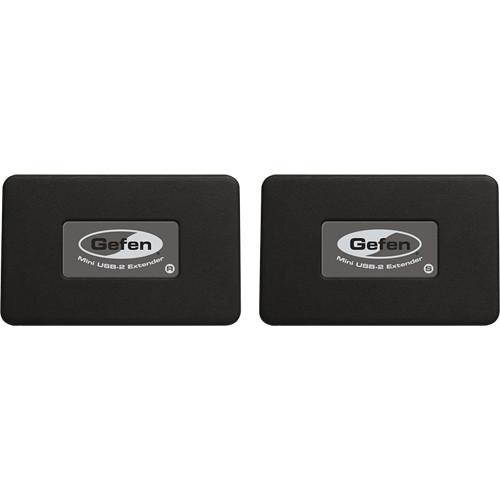

Product description The Gefen EXT-USB-MINI2N Mini USB-2 Extender allows you to extend any USB 1.1 signal up to 150' (45m). This extender comes with an EXT-USB-MINI2NS Mini USB-2 Extender (Sender Unit), an EXT-USB-MINI2NR Mini USB-2 Extender (Receiver Unit), and a CAB-USB-6-O 6’ (1.83m) USB Cable (A-B).The receiver of this extender comes with a 2-port USB hub. This extender exceeds the 16' (4.8m) distance limitation of USB extension by using the Extreme USB technology to extend the USB up to 150' (45.7m) away from the computer. The EXT-USB-MINI2N Mini USB-2 Extender is suitable for applications where remote operation of 2 USB devices, such as a keyboard and mouse is required. In addition, this extender is also useful with most other USB-based devices. - Extends any USB 1.1 device up to 150' (45.7m) using a CAT-5e cable
- Provides support for any full-speed 12 Mb/s or low-speed 1.5 Mb/s USB device
- Supports Windows XP, Windows Vista, Windows 7, Linux, and Mac OSX operating systems
- Requires no external power adapter; powered by the USB bus
UPC: 845344034393 In the Box Gefen EXT-USB-MINI2N Mini USB-2 Extender Mini USB-2 Extender (Sender Unit) (EXT-USB-MINI2NS) Mini USB-2 Extender (Receiver Unit) (EXT-USB-MINI2NR) 6.00' (1.83m) USB Cable (A-B) (CAB-USB-6-O) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen EXT-USB-MINI2N Mini USB-2 Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

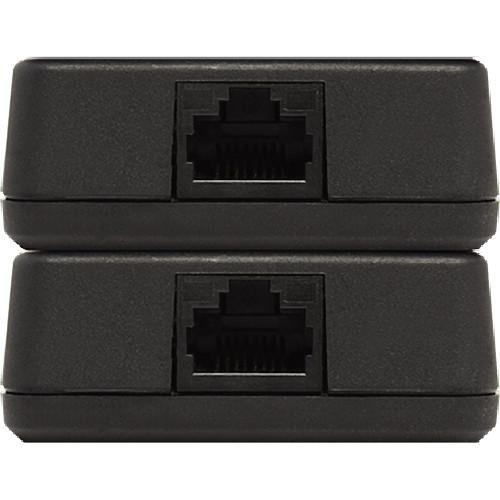

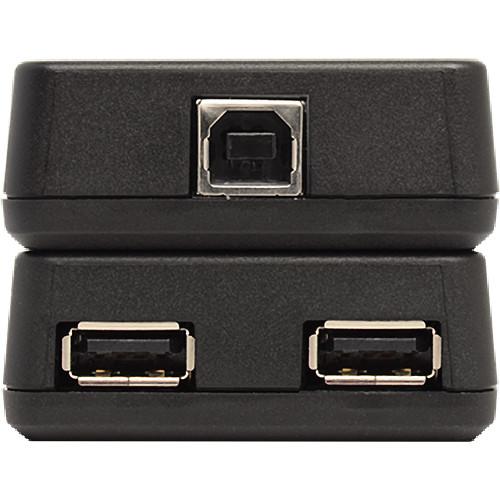

Technical parametersGefen EXT-USB-MINI2N Specs | Connector | 1 x USB type B, female (sender)
2 x USB type A, female (receiver) | | Link Connectors (Sender/Receiver) | RJ-45 | | Current Output | Up to 400 mA per USB device (as long as the host can provide 800 mA or more) | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Dimensions (W x H x D) | Sender/Receiver: 3.5 x 0.9 x 2.2" (88.9 x 22.8 x 55.8 mm) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 6.2 x 5.1 x 2.3" |
