User Manual for Gefen EXT-USB2.0-LR Cat5 USB 2.0 Extender Click to enlarge the picture
Contents of the user manual for the Gefen EXT-USB2.0-LR Cat5 USB 2.0 Extender
- Product category: USB Extenders Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen USB Extenders
 |
User manual for the Gefen EXT-USB2.0-LR Cat5 USB 2.0 Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|

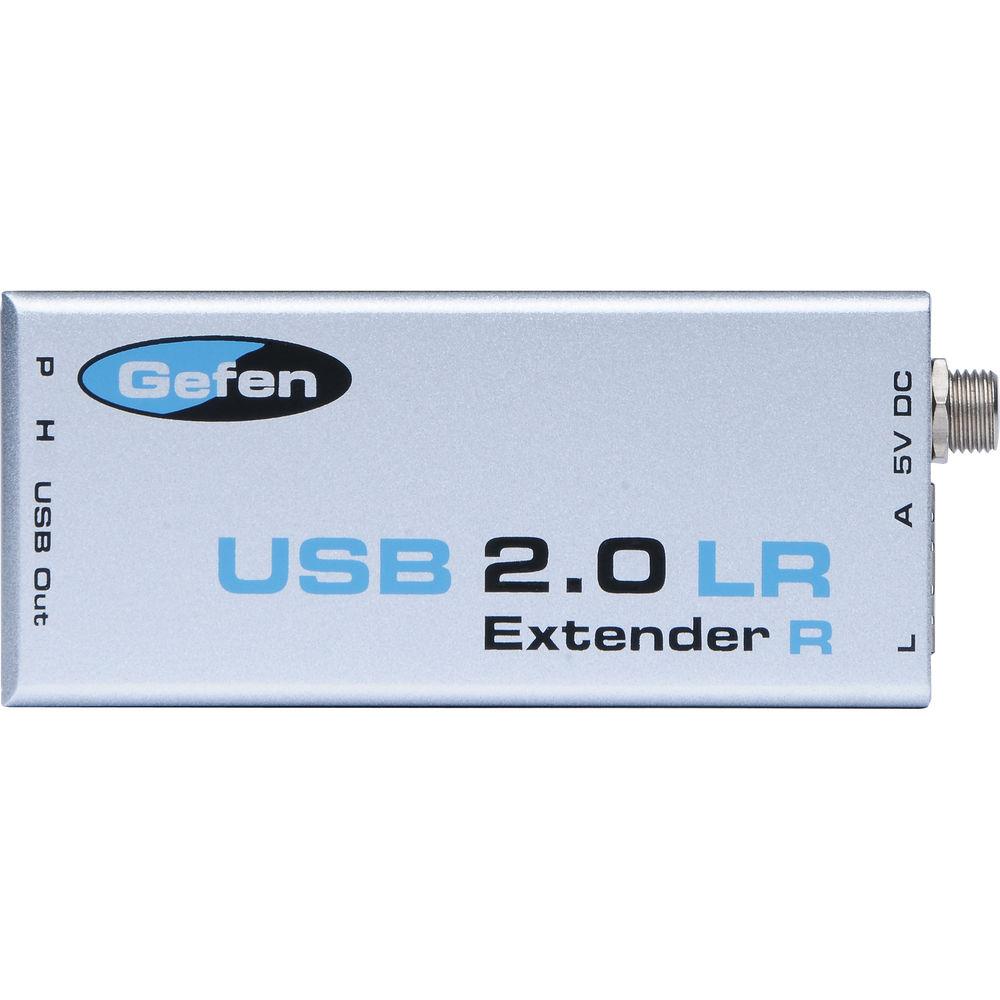

Product description The Gefen EXT-USB2.0-LR Cat5 USB 2.0 Extender is a transmitter and receiver designed to extend the effective range of connecting USB 2.0 devices to a computer or device. The user connects a USB 2.0 compatible unit into the EXT-USB2.0-LR transmitter which then carries the signal over Cat5 (Ethernet) cable to the EXT-USB2.0-LR receiver, which connects it directly to the controller, whether it's a PC, Mac or other capable peripheral. The maximum range of the extender is 330' (100 m), making it incredibly useful for remote access. - Operate USB 2.0 peripherals up to 330' (100 m) from a computer.
- Supports low (1.1) and high-speed (2.0) USB.
- Uses industry-standard CAT5, CAT5e, or CAT6 cable.
- Supports all major operating systems; Windows, Mac OSX and Linux.
- True plug-and-play, 100% hardware solution with no drivers required.
- Operates at full 480 Mbps speed when running in USB 2.0 mode.
- Receiver supports up to (2) USB powered connections at 500mA each.
UPC: 845344094328 In the Box Gefen EXT-USB2.0-LR Cat5 USB 2.0 Extender USB 2.0 Extender Cat5 LR Sender Unit USB 2.0 Extender Cat5 LR Receiver Unit 5VDC Power Supply 6' (1.8m) USB Cable User's Manual International Plugs 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen EXT-USB2.0-LR Cat5 USB 2.0 Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

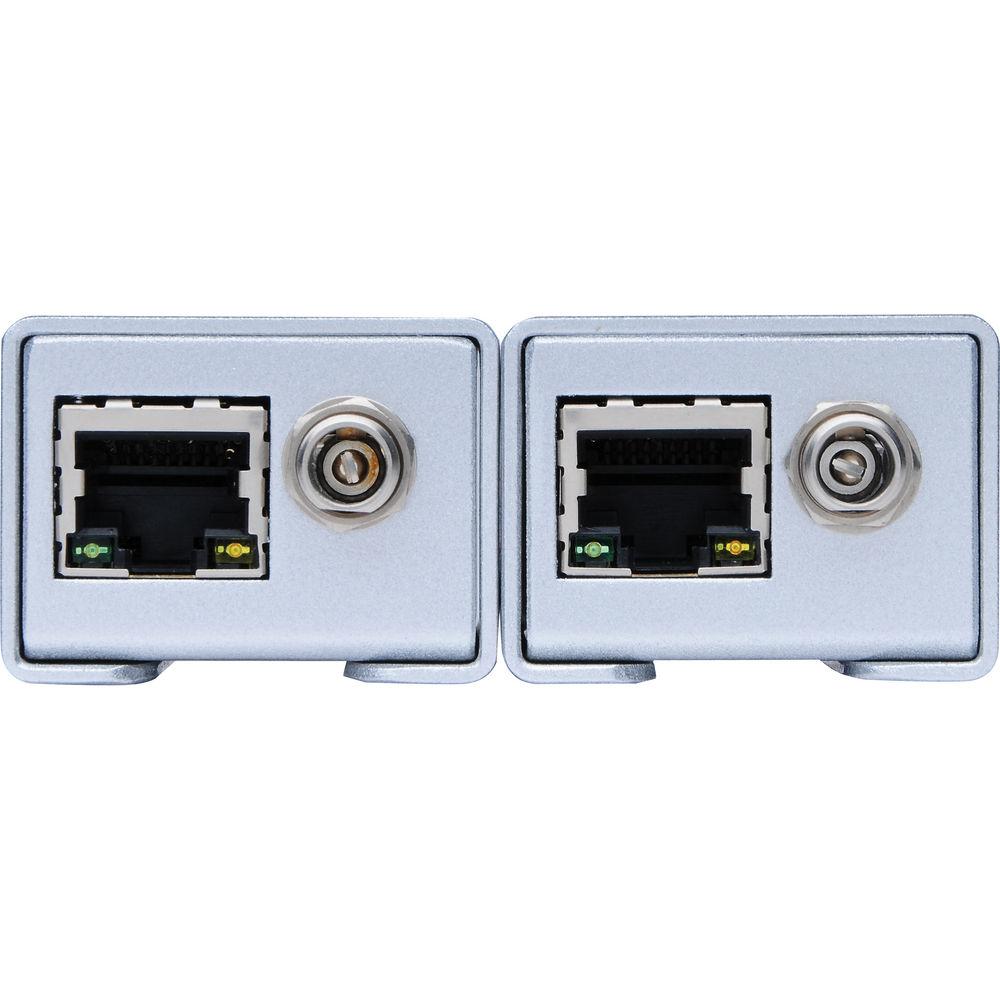

Technical parametersGefen EXT-USB2.0-LR Specs | Range | 330' (100 m) | | Inputs/Outputs | Transmitter
USB Type B (x1)
Ethernet: RJ-45 (x1)
USB Type A (x2)
Ethernet: RJ-45 (x1) | | Operating Temperature | 32-158°F (0-70°C) | | Power Requirements | 5VDC | | Power Consumption | 10W | | Dimensions (WxHxD) | Transmitter
1.5 x 1.2 x 3.3" (3.8 x 3 x 8.4cm)
Receiver
3.4 x 1.1 x 1.3" (8.6 x 2.8 x 3.3cm) | | Weight | Not Specified By Manufacturer | | | | Package Weight | 1.785 lb | | Box Dimensions (LxWxH) | 9.55 x 6.25 x 3.1" |
