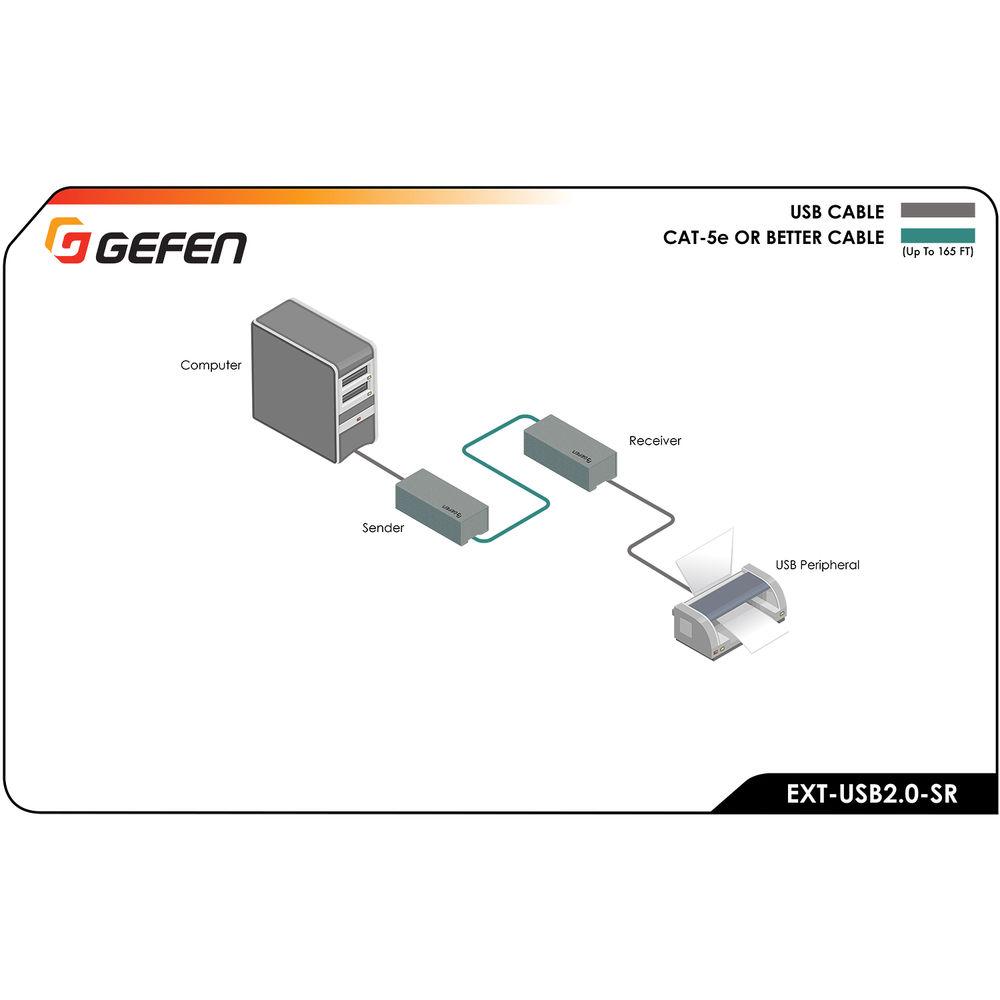

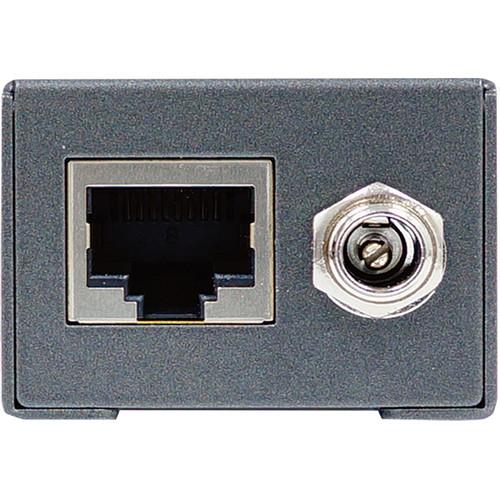

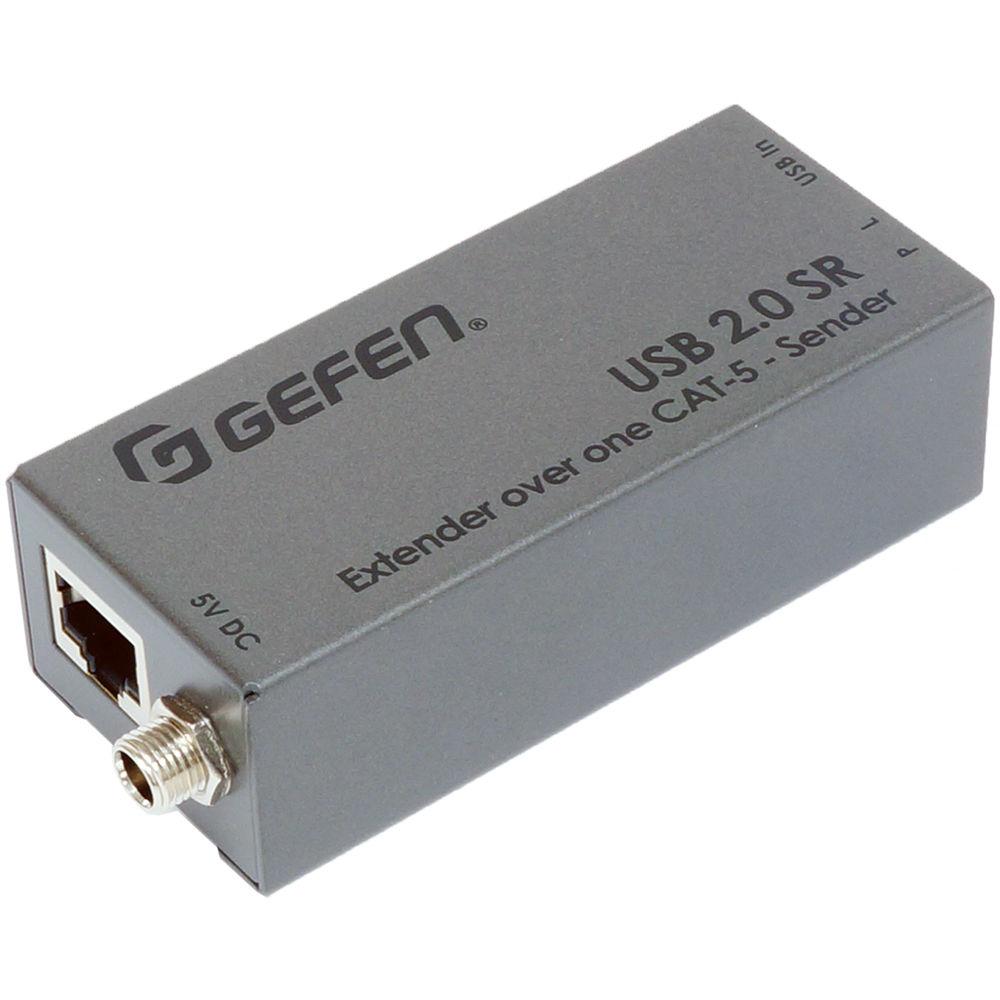

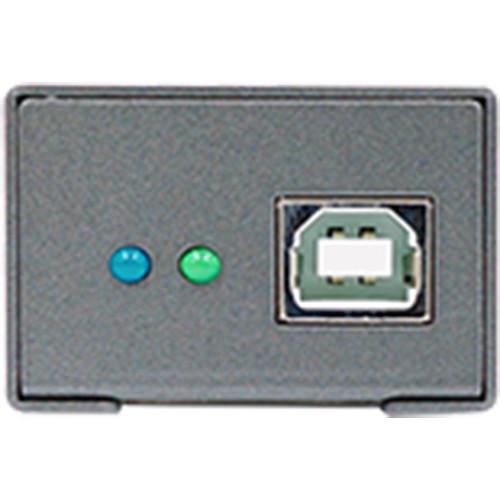

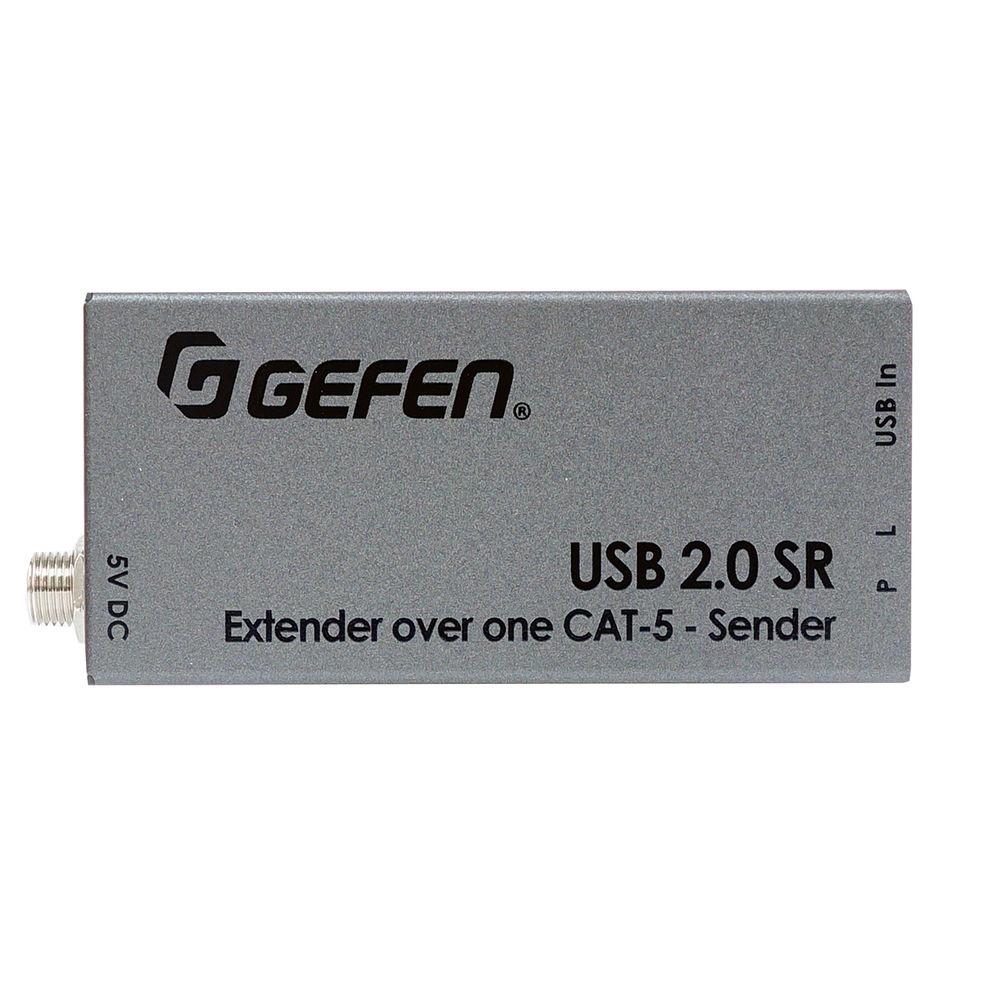

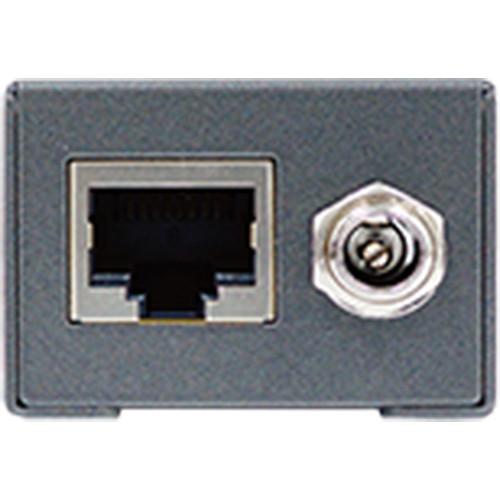

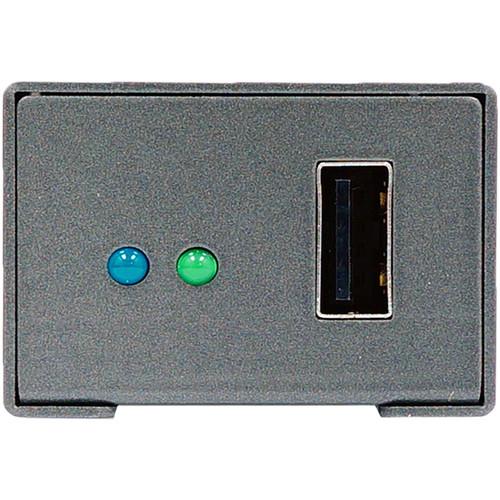

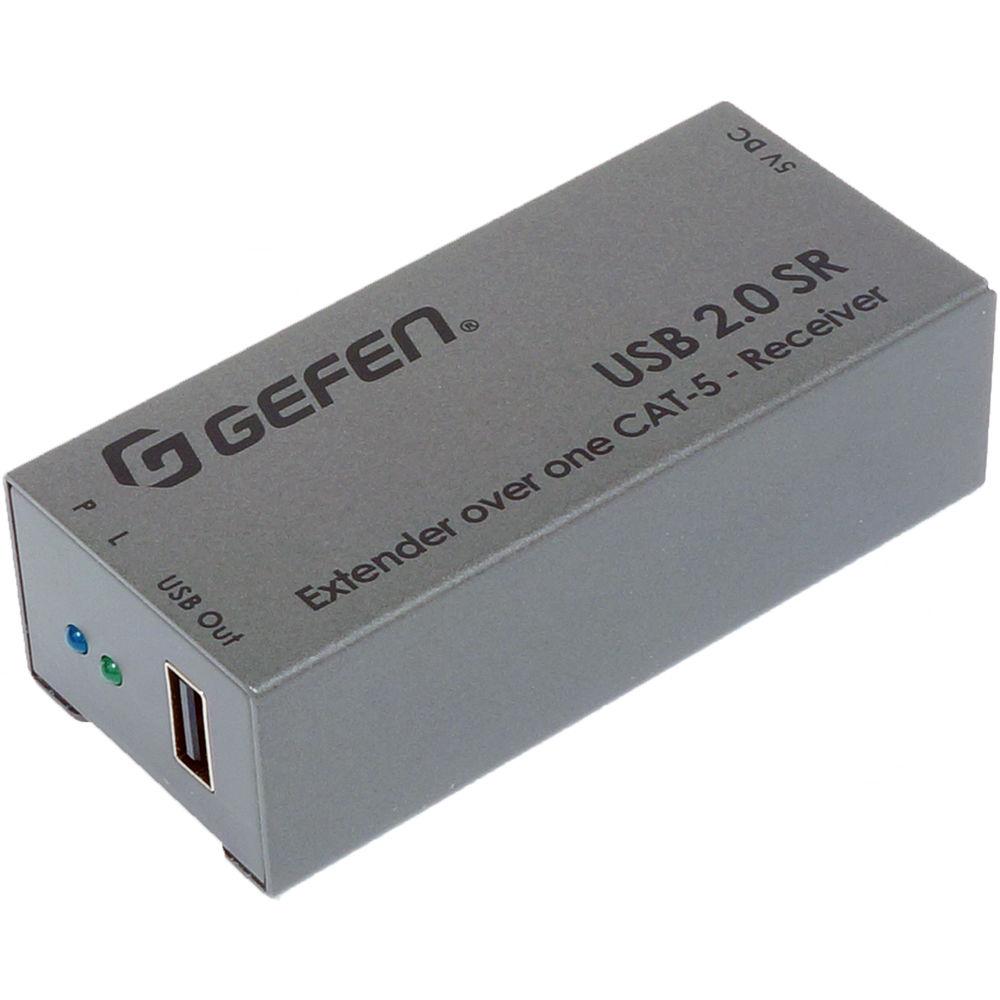

Product description The EXT-USB2.0-SR USB 2.0 Extender from Gefen lets you extend USB 2.0 devices up to 165' from your computer over a Cat 5e or better cable. The sender unit comes with a USB Type-B port, while the receiver unit has a USB Type-A port. Each unit has an RJ45 link connector. Compatible with Windows, macOS, and Linux systems, the plug-and-play USB 2.0 extender is ideal for remotely accessing laser printers, scanners, external hard drives, optical disc burners, flash drives, webcams, and other USB 2.0 peripherals. - Supports USB 1.1 and 2.0.
- Supports the full 480 Mb/s speed of USB 2.0.
- The USB Type-A connector on the receiver can supply up to 2A / 5V of power.
- Sturdy metal enclosures help to protect against electromagnetic interference (EMI) and radio frequency interference (RFI) from other nearby devices.
- Compact enclosures are easy to install and can be hidden away.
- No drivers required thanks to the plug-and-play nature of USB.
- A powered USB hub may be connected to the receiver to allow for the connection of additional USB devices. Using a USB hub reduces the extension range to approximately 132'. The exact range reduction depends on the USB hub design. Some hubs may perform better than others.
- Applications such as remote desktop (keyboard/mouse/touchscreen), security, industrial control, digital signage control, and scientific data acquisition are possible thanks to the extender's universal implementation of USB standards.
UPC: 888814999969 In the Box Gefen EXT-USB2.0-SR USB 2.0 Extender USB Type-A to USB Type-B Cable (6') 2 x 5 VDC Locking Power Supplies Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen EXT-USB2.0-SR USB 2.0 Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-USB2.0-SR Specs | USB 2.0 Speed | Up to 480 Mb/s | | Link Connectors | RJ45 (Shielded) | | USB Ports | Sender: 1 x USB Type-B
Receiver: 1 x USB Type-A | | Current Output | 2 A, 5 VDC (USB Receiver Port) | | LED Indicators | Link: Green
Power: Blue | | Power Supply Connector | Locking-Type, 5.5 mm Barrel / 2.5 mm Pin | | Power Supply Voltage | 5 VDC | | Maximum Power Consumption | 0.65 W (Sender)
0.8 W (Receiver) | | Enclosure Material | Metal | | Operating Temperature | 32-122°F / 0-50°C | | Storage Temperature | -4-158°F / -20-70°C | | Operating Humidity (Relative) | 5-90% (Non-Condensing) | | Storage Humidity (Relative) | 0-95% (Non-Condensing) | | MTBF | 50,000 h | | Dimensions | 3.4 x 1.1 x 1.5" / 85 x 28 x 38 mm | | Weight | 0.3 lb / 0.13 kg | | | | Package Weight | 2.195 lb | | Box Dimensions (LxWxH) | 12.0 x 7.5 x 2.6" |
