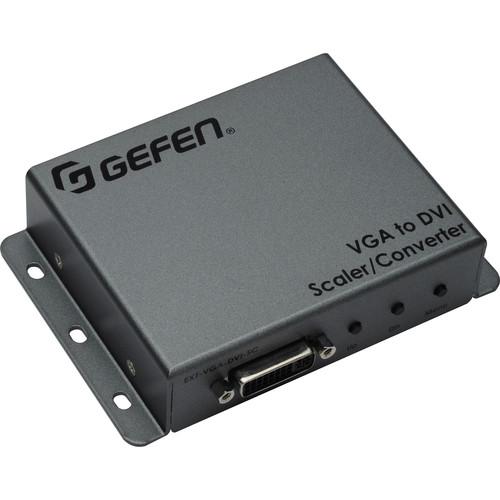

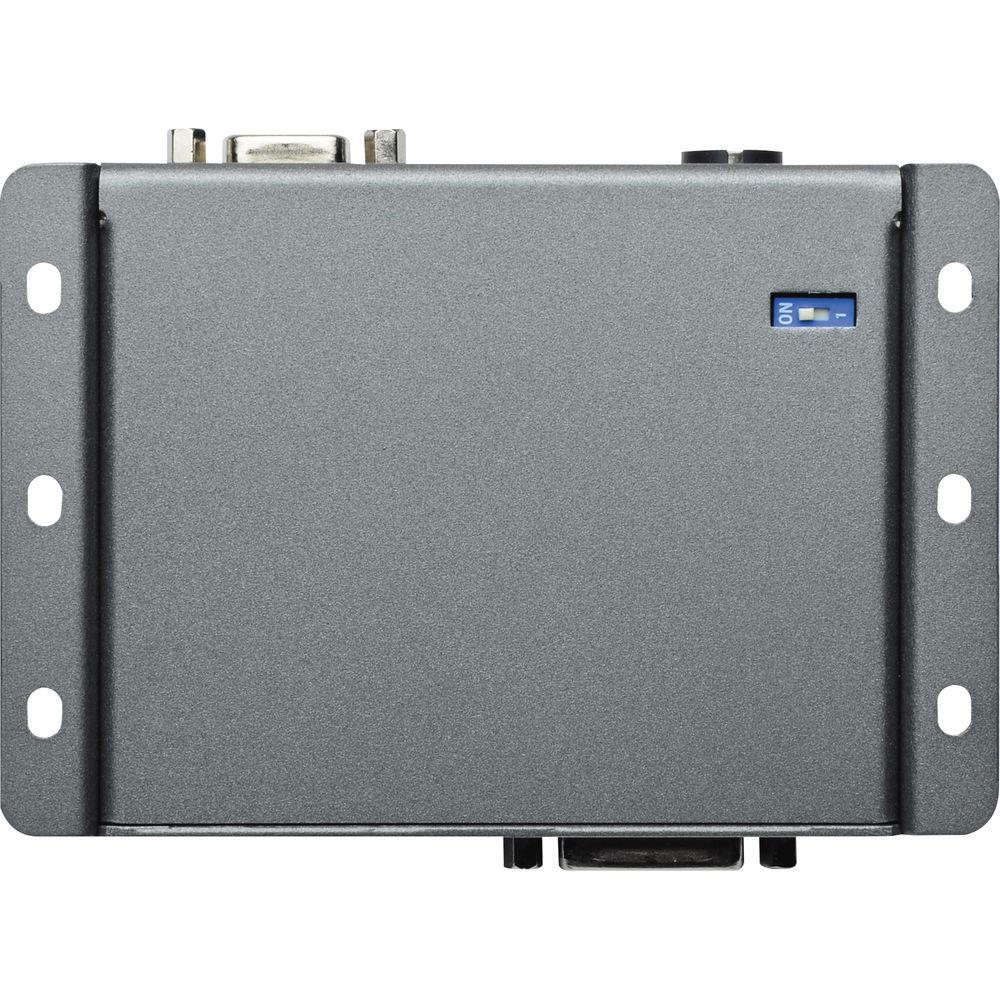

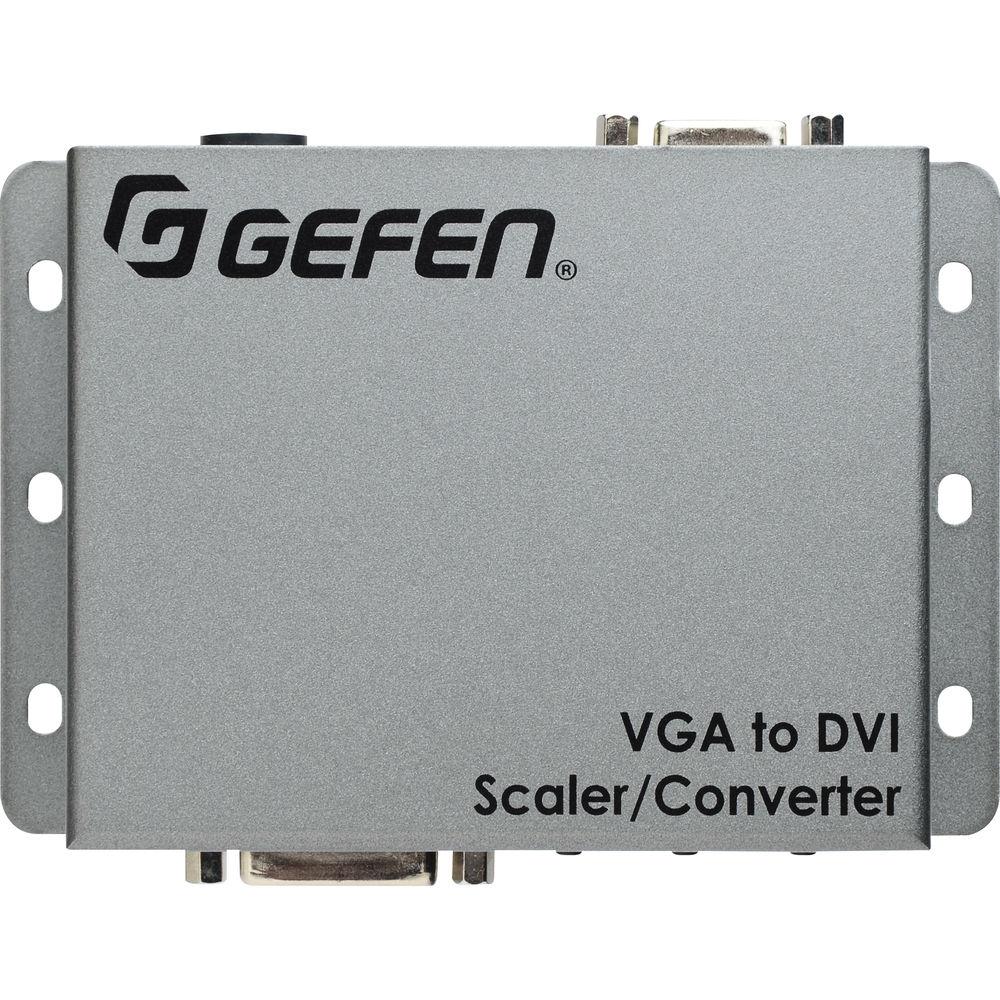

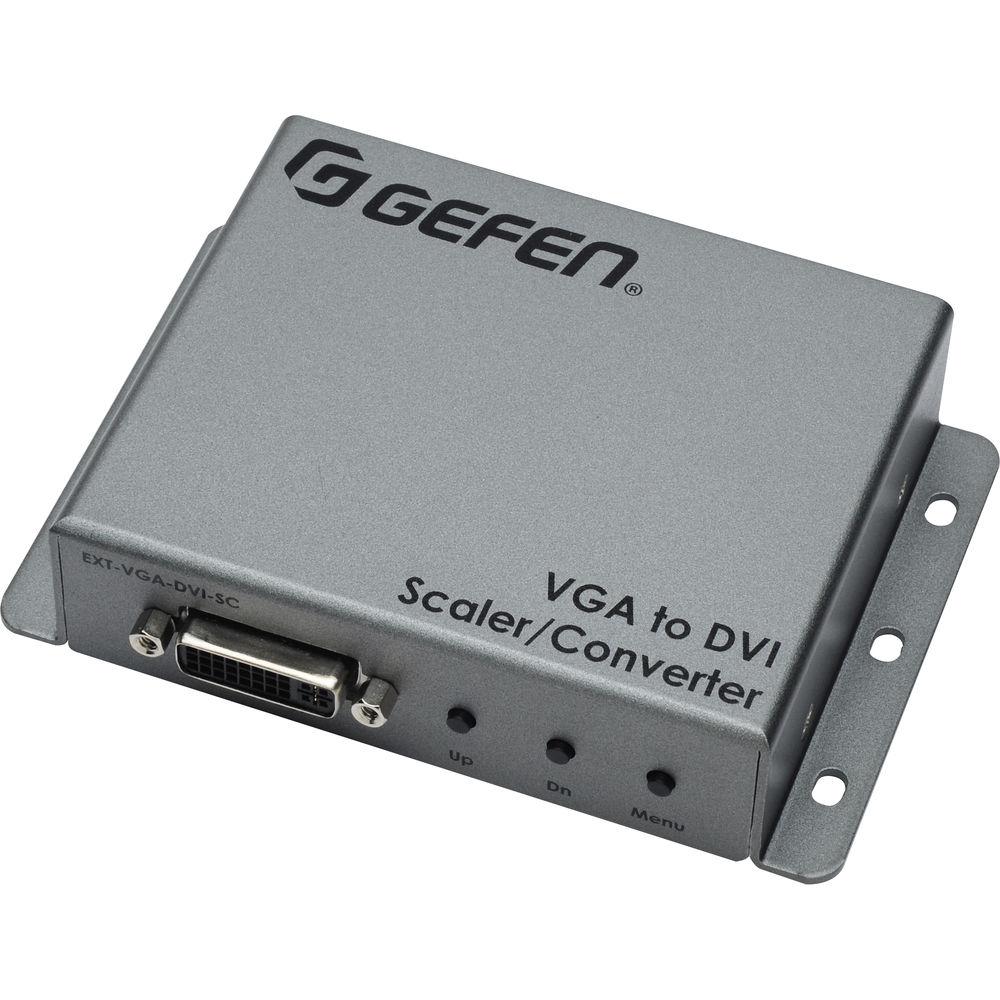

Product description Connect legacy analog VGA equipment to DVI displays or projectors with the Gefen EXT-VGA-DVI-SC VGA to DVI Scaler/Converter. Using the internal scaling hardware, the EXT-VGA-DVI-SC can correctly match your source's output resolution with the display's resolution, up to WUXGA (1920x1200). All functionality of this unit, including scaling and aspect ratio controls, can be accessed using the OSD menu or using Gefen's free Syner-G software. To aid in installation, the enclosure is surface mountable. A VGA cable is included with the unit so you can plug it into a source straight out of the box. - Converts and scales VGA to DVI
- On-screen display (OSD) menu allows easy set-up and control
- Aspect Ratio Control: Full Screen, Panoramic, Letter/Pillar-box, Extract/Crop
- Test Pattern Generator for quick system configuration
- USB connection to Gefen Syner-G simplifies in-field firmware updates and advanced EDID management including custom input timings
- Locking power supply connector
UPC: 888814071825 In the Box Gefen EXT-VGA-DVI-SC VGA to DVI Scaler/Converter 6' VGA Cable 12 VDC Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen EXT-VGA-DVI-SC VGA to DVI Scaler Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-VGA-DVI-SC Specs | Maximum Resolution | Input: WUXGA (1920 x 1200)
Output: WUXGA | | Clock Speed | Max Pixel Clock: 165 MHz

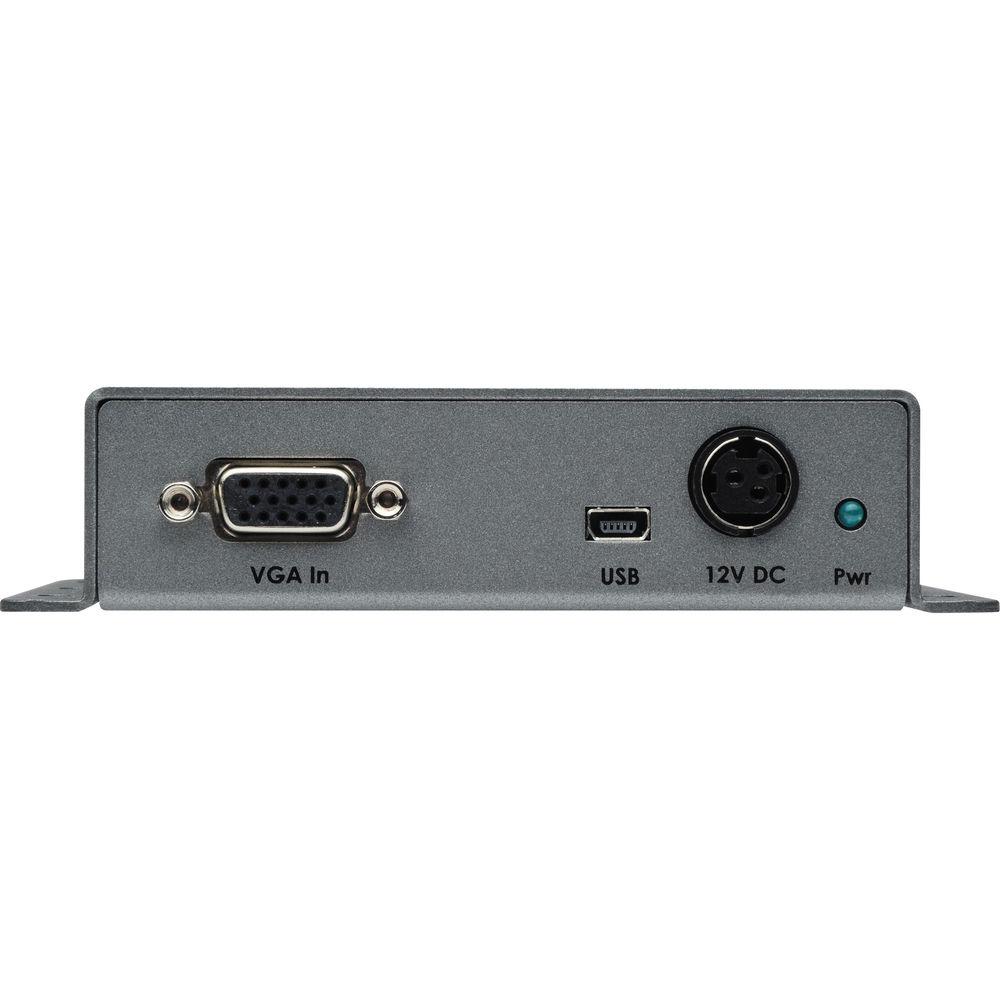

Max TMDS Clock: 165 MHz | | I/O Connections | 1 x VGA female input
1 x DVI female output
1 x USB mini-B
1 x 3-pin locking power supply connection | | LED Indicators | 1 x Blue LED power indicator | | Power Supply | 12 VDC nominal (6 to 24 VDC operating range) | | Power Consumption | 2 W maximum | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Operating Humidity | 5 to 90% RH (non-condensing) | | Storage Humidity | 0 to 95% RH (non-condensing) | | Dimensions | 4.9 x 1 x 3.2" / 123 x 26 x 82 mm | | Weight | 0.4 lb / 200 g | | | | Package Weight | 2.115 lb | | Box Dimensions (LxWxH) | 10.5 x 7.1 x 3.85" |
