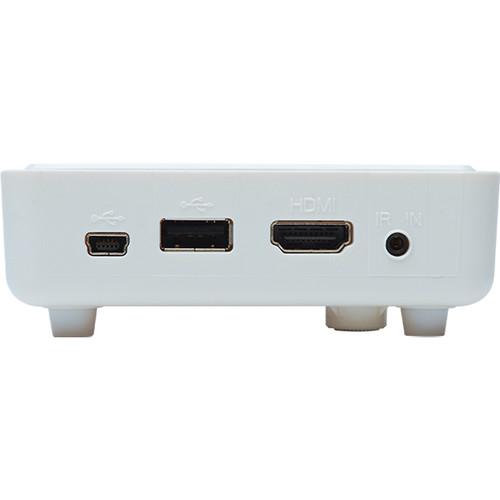

User Manual for Gefen EXT-WHD-1080P-SR-TX Wireless HDMI Transmitter Click to enlarge the picture
Contents of the user manual for the Gefen EXT-WHD-1080P-SR-TX Wireless HDMI Transmitter
- Product category: HDMI Signal Extenders Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen HDMI Signal Extenders
 |
User manual for the Gefen EXT-WHD-1080P-SR-TX Wireless HDMI Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description - Wireless Extender for HDMI 5GHz Long Range
Connect an additional source to your EXT-WHD-1080P-SR system with the Gefen EXT-WHD-1080P-SR-TX Wireless HDMI Transmitter. It connects to the HDMI output of your source device and sends the uncompressed audio/video signal wirelessly to your compatible receiver up to 33' away over a 5 GHz connection with AES encryption. - Wireless extension of HDMI via 5 GHz up to 33'
- Supports resolutions up to Full HD 1080p, up to 7.1 channels of LPCM digital audio, and up to 5.1 channels of Dolby and DTS formats
- Line-of-sight with receiver not required
- Supports uncompressed HD A/V, 3D pass-through, HDCP pass-through, and Lip Sync
- Compatible with DVI displays
- Connects directly to your source's HDMI port
- Powered by USB or with the included power supply
- Suitable for temporary connection of mobile devices, laptops, cameras, etc.
- Firmware update via mini-USB port using Gefen Syner-G software
UPC: 888814401318 In the Box Gefen EXT-WHD-1080P-SR-TX Wireless HDMI Transmitter (33') 5' USB to Mini-USB Cable 1.5' Angled USB to Mini-USB Cable 5 VDC Power Supply with US/EU/UK/AU Connectors Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen EXT-WHD-1080P-SR-TX Wireless HDMI Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-WHD-1080P-SR-TX Specs | Transmission Range | Up to 33' / 10 m | | Max Supported Resolution | Full HD 1080p | | Channels | 5.19, 5.23, 5.755, and 5.795 GHz | | Encryption | AES 128 | | Input | 1 x HDMI Type-A Male | | Other Connectors | 1 x Mini-USB Type-B (Power) | | Latency | <1 Frame | | Compliance | WHDI 1.0, FCC Part 15, and ETSI | | Operating Conditions | 32 to 104°F / 0 to 40°C, 10 to 85% Humidity, Non-Condensing | | Storage Conditions | 14 to 140°F / -10 to 60°C, 5 to 90% Humidity, Non-Condensing | | Power Requirements | 5 VDC / 2 A | | Maximum Power Consumption | 3 W | | Dimensions (W x H x D) | 1.2 x 0.65 x 3.2" / 30 x 16 x 80 mm Including HDMI Connector | | Weight (Approximate) | 1 oz / 30 g | | | | Package Weight | 0.635 lb | | Box Dimensions (LxWxH) | 6.6 x 3.7 x 2.95" |
