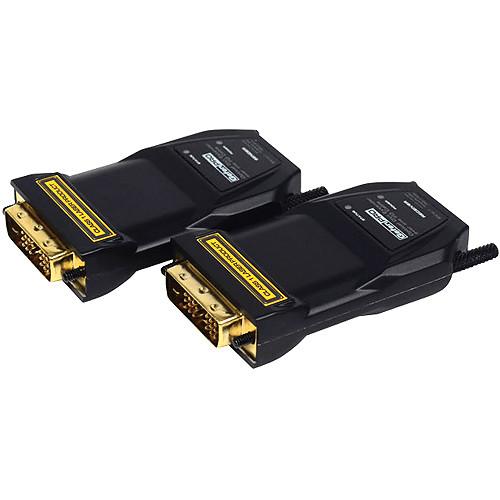

User Manual for Gefen GEF-DVI-FM1500 Optical DVI Extender with Recordable EDID Click to enlarge the picture
Contents of the user manual for the Gefen GEF-DVI-FM1500 Optical DVI Extender with
- Product category: KVM Extenders Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen KVM Extenders
|
User manual for the Gefen GEF-DVI-FM1500 Optical DVI Extender with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description The GefenPRO GEF-DVI-FM1500 Optical DVI Extender with Recordable EDID extends a DVI source up to 3,280’ (1,000 m) using a single-mode (50 µ) fiber optic cable. Virtual EDID programming provides fast integration and compatibility with the input video source and the display. Resolutions up to 1920 x 1200 (WUXGA) at 60 Hz are also supported. You can connect the sender unit to the DVI source and the receiver unit to the DVI display. Use a single strand of the SC fiber optic cable to connect the sender unit to the receiver unit. Connect the included 5 VDC power supply to the sender unit and the power adapter to an available electrical outlet. Note: When using a multimode fiber optic cable, the DVI source can be extended to up to 1,640' (500 m). - Extends DVI source to up to 3,280' (1,000 m) using a single-mode fiber optic cable
- Extends DVI source to up to 1,640' (500 m) using a multimode fiber optic cable
- Supports resolutions up to 1920 x 1200 (WUXGA)
- Optical signal transmission provides good immunity to electromagnetic interference
- Virtual EDID programming feature provides quick installation and compatibility between source and display
- Uses 1 strand of single-mode or multimode SC-terminated fiber optic cable
- Fully supports DVI 1.0 specifications and DDC2B via virtual DDC
- Sender module does not require power if the DVI source provides sufficient power on pin 14 of the DVI connector (most sources do)
UPC: 845344098456 In the Box Gefen GEF-DVI-FM1500 Optical DVI Extender with Recordable EDID 1x DVI FM1500 Optical DVI Extender with Recordable EDID - Sender Unit 1x DVI FM1500 Optical DVI Extender with Recordable EDID - Receiver Unit 1x 5 VDC Power Supply (EXT-PS52AIP-1.3) 1x User Manual Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen GEF-DVI-FM1500 Optical DVI Extender with Recordable EDID in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen DVI-FM1500 Specs | Maximum Pixel Clock | 165 MHz | | Wavelength | Optical: 1310 / 1550 nm (typical) | | Video Input | Sender: DVI-D, 19-pin, male | | Video Output | Receiver: DVI-D, 19-pin, male | | Fiber Optic Connector | Sender / Receiver Connectors: 1x SC type | | Power Supply | Sender / Receiver: 5 VDC | | Power Consumption | Sender / Receiver: 250 mA (maximum) / 190 mA (maximum) | | Dimensions (W x H x D) | 1.96 x 0.59 x 2.98" (49.78 x 14.98 x 75.69 mm) |
