User Manual for Gefen GEF-DVI-FM2000 Dual Link Fiber Optic Modular Extender Click to enlarge the picture
Contents of the user manual for the Gefen GEF-DVI-FM2000 Dual Link Fiber Optic
- Product category: KVM Extenders Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen KVM Extenders
 |
User manual for the Gefen GEF-DVI-FM2000 Dual Link Fiber Optic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|

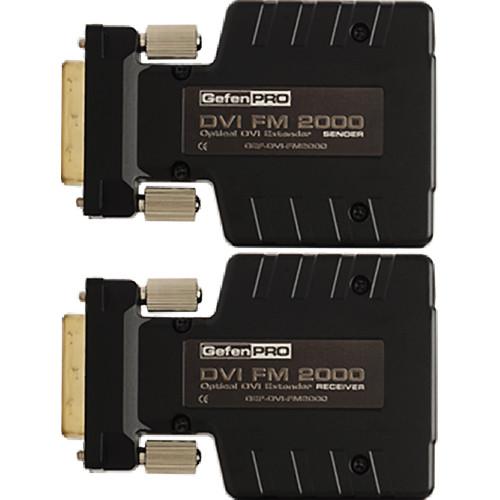

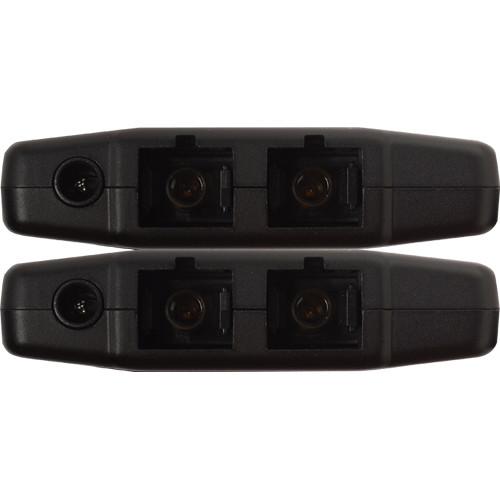

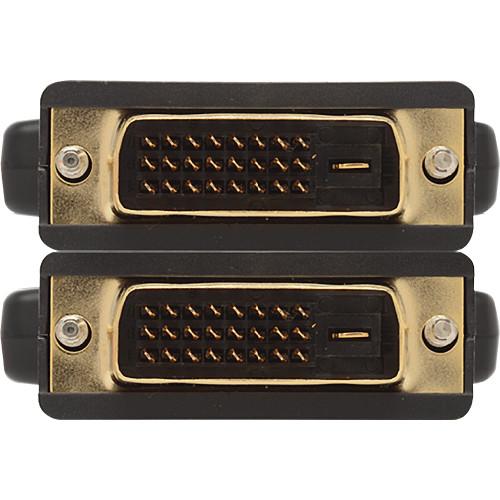

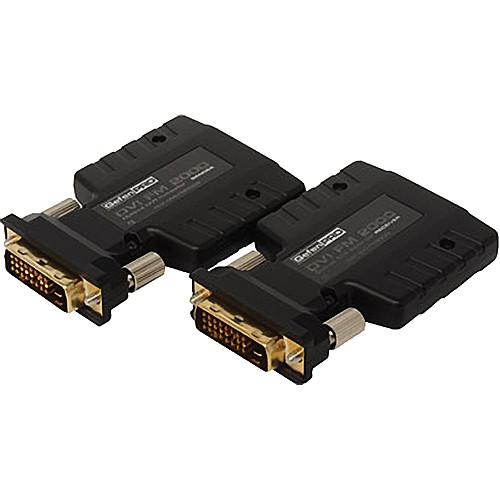

Product description The Gefen GEF-DVI-FM2000 Dual Link Fiber Optic Modular Extender extends a dual link DVI display up to 1000’ (304.8m) away from the source, using 2 strands of SC multi-mode fiber optic cables (sold separately). This extender supports both single and dual link DVI resolutions up to 3840 x 2400. Its fiber optic signal transmission provides protection from electromagnetic interference (EMI). Both the extender modules fit neatly behind the DVI connector for a clean and well-organized installation.The DVI FM 2000 sender module is connected to the DVI source, while the DVI FM 2000 receiver module is connected to the dual link DVI display. The 2-strand multi-mode SC fiber optic cables are used for connecting the DVI Sender and Receiver modules. The included 5VDC power supply is used for powering both the Sender and Receiver modules. Note: If the DVI source provides ample power on pin 14 of the DVI connector, the sender module need not be powered.The DVI Dual Link Fiber Extender only uses multi-mode SC fiber cables.The included power supply is required for the Receiver unit. However, if the source does not supply enough power to the Sender unit, then an optional power supply (Gefen part no.EXT-PS52AIP-1.3) must be used. In most situations, powering the Sender unit will not be necessary. - Extends dual link DVI source up to 1000' (304.8m) using multi-mode (50 or 62.5 micron) fiber optic cable (sold separately)
- Supports HD resolutions up to 1080p Full HD
- Supports VESA resolutions up to 1920 x 1200 (WUXGA) and 3840 x 2400 (WQUXGA)
- Optical signal transmission provides improved immunity from electromagnetic interference (EMI)
- Supports HDCP pass-through
- Compact Sender and Receiver modules provide a clean and easy installation
UPC: 845344015514 In the Box Gefen GEF-DVI-FM2000 Dual Link Fiber Optic Modular Extender DVI Dual Link Fiber Extender - Sender Unit DVI Dual Link Fiber Extender - Receiver Unit 5VDC / 2A Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen GEF-DVI-FM2000 Dual Link Fiber Optic Modular Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen GEF-DVI-FM2000 Specs | Maximum Pixel Clock | 2 x 165 MHz | | Input Video Signal | 1.2 Vpp | | Input DDC Signal | 5 Vpp (TTL) | | Connector | DVI-D, 19-pin, male (DVI connector (Sender / Receiver)) | | Fiber Optic Connector | SC type (Sender / Receiver) | | Power Supply (Sender / Receiver) | 5 VDC | | Power Consumption | Sender: 250 mA (maximum)Receiver: 190 mA (maximum) | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Relative Humidity | 10 to 80% | | Dimensions (W x H x D) | 1.97 x 0.59 x 2.98" (5.00 x 1.49 x 7.57 cm) | | Weight | 1 lb (0.45 kg) |
