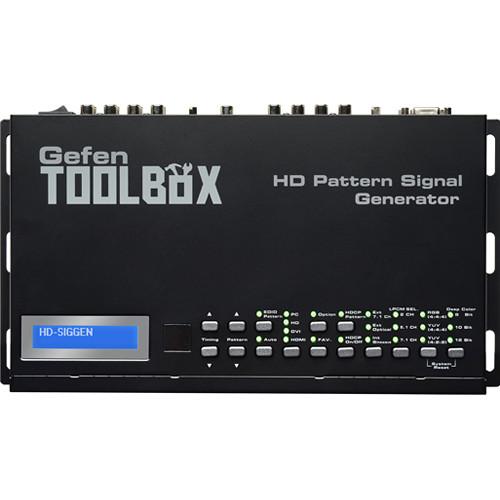

User Manual for Gefen GefenToolBox HD Pattern Signal Generator Click to enlarge the picture
Contents of the user manual for the Gefen GefenToolBox HD Pattern Signal Generator
- Product category: Video & Audio Signal Generators Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Video & Audio Signal Generators
|
User manual for the Gefen GefenToolBox HD Pattern Signal Generator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description The GefenToolBox HD Pattern Signal Generator is a testing device for your audio and video equipment which contains 39 built-in timings, 41 patterns, and 4 data analysis patterns that provide over a thousand testing combinations for both analog and digital devices.
The front panel LCD screen provides easy viewing of functions and features for each timing / pattern. This device can be conveniently controlled via the front panel buttons, the IR remote, or the downloadable software from the Gefen website. In addition to its portability, this signal generator is wall mountable and field upgradeable. - Multi-format video output for SD and HD video up to 1080p
- PC / HD resolutions up to UXGA / WUXGA (1920 x 1200)
- Thirty-nine timings, forty-one patterns, and 4 data analysis patterns
- Supports RGB 4:4:4, YCbCr 4:4:4, and YCbCr 4:4:2 color spaces
- Supports NTSC and PAL frame rates
- 2, 5.1, and 7.1-channel LPCM internal sine wave generator
- RS-232 control via the downloadable software from the Gefen web site (sold separately)
- Small form factor; easy to transport
- Supports HD timings for VGA output
- Supports reading and copying EDID functionality
- User-friendly Interface - LCD display, LED indicators, and software
- Deep color support up to 12-bit
- HDMI 1.3 and DVI 1.0 compliant
UPC: 845344005102 In the Box Gefen GefenToolBox HD Pattern Signal Generator Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen GefenToolBox HD Pattern Signal Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen GTB-HD-SIGGEN Specs | Maximum Pixel Clock | 225 MHz | | Input Video Signal | 1.2 Vpp | | Input DDC Signal | 5 Vpp (TTL) | | Video Input | 1 x HDMI type-A 19-pin, female | | Analog Video Output | 1 x HD-15, female VGA/PC/HD (supports component video with VGA adapter) | | Digital Video Output | 1 x HDMI type-A 19-pin, female (supports DVI with HDMI-to-DVI adapter) | | Analog Audio Input | FL, FR, C, LFE, SL, SR, SSL, SSR (RCA type) | | Analog Audio Output | FL, FR, C, LFE, SL, SR, SSL, SSR (RCA type) | | Digital Audio Input | 1 x TOSLINK | | Digital Audio Output | 1 x TOSLINK, 1 x S/PDIF | | Input Impedance | Analog Audio: 10 kΩ | | Frequency Response | 20 Hz to 20 kHz (0.5 dB) | | SNR | >90 dB | | THD | <0.001% at 1 kHz (2 Vrms) | | Crosstalk | >90 dB | | RS-232 | Port: DB-9, female | | Power Supply | 5 VDC | | Power Consumption | 13 W (maximum) | | Dimensions (W x H x D) | 11.00 x 6.50 x 1.75" (279.40 x 165.10 x 44.45 mm) | | Weight | 6.00 lb (2.72 kg) | | | | Package Weight | 5.45 lb | | Box Dimensions (LxWxH) | 13.2 x 8.1 x 3.6" |
