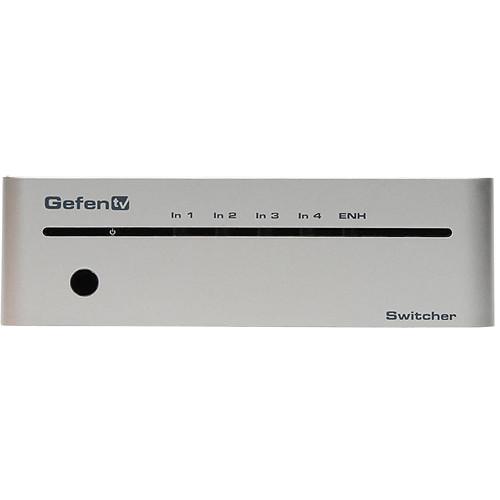

User Manual for Gefen GTV-HDMI1.3-441N 4x1 Switcher for HDMI Click to enlarge the picture
Contents of the user manual for the Gefen GTV-HDMI1.3-441N 4x1 Switcher for HDMI
- Product category: Routers & Switchers Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Routers & Switchers
|
User manual for the Gefen GTV-HDMI1.3-441N 4x1 Switcher for HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description The Gefen GTV-HDMI1.3-441N 4x1 Switcher for HDMI, with RS-232 control, can switch between any of the 4 HDMI inputs to 1 HDMI output. Resolutions up to 1080p Full HD/1920x1200 with multichannel digital audio are supported. It has an auto-switching feature, which will automatically switch to the new source that is connected and revert to the previous input once the current device is turned off or disconnected.
Any of the 4 HD sources can be selected via push-button, IR remote control, or the RS-232 control. The switcher supports DVI Sources/DVI Displays with an HDMI-to-DVI adapter, and is Energy Star / HDCP Compliant. It also features LPCM 7.1 Audio, Dolby Digital Plus, Dolby TrueHD, and DTS-HD Master Audio and supports 3DTV Pass-through. - Switches between any of the 4 HDMI inputs to 1 HDMI output
- Offers resolution up to 1080p Full HD/1920x1200 with multichannel digital audio
- Auto-switching - automatically switch to the new source that is connected and revert to the previous input once the current device is turned off or disconnected
- Selection of any of the 4 HD sources via push-button, IR remote control, or the RS-232 control
- Supports DVI Sources/DVI Displays with an HDMI-to-DVI adapter
- Energy Star / HDCP Compliant
- Features LPCM 7.1 Audio, Dolby Digital Plus, Dolby TrueHD, and DTS-HD Master Audio
- Supports 3DTV Pass-through
UPC: 845344002491 In the Box Gefen GTV-HDMI1.3-441N 4x1 Switcher for HDMI 4 x 6' (1.82m) HDMI Cables (M-M) 6' (1.82m) Serial DB9 Cable (M-F) IR Remote Control 5V DC Power Supply User Manual 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen GTV-HDMI1.3-441N 4x1 Switcher for HDMI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen GTV-HDMI1.3-441N Specs | Maximum Pixel Clock | 225 MHz | | Input Video Signal | 1.2 Volts p-p | | Input DDC Signal | 5 Volts p-p (TTL) | | HDMI Input Connectors | (4) Type A, 19-pin female | | HDMI Output Connector | Type A, 19-pin female | | RS-232 connector | DB-9 female | | Power Supply | 5V DC | | Power Consumption | 10 Watts (max) | | Operating Temperature | 32-104°F (0-40°C) | | Dimensions (W x H x D) | 6.9 x 2.1 x 6.9" (17.52 x 5.33 x 17.52cm) | | Shipping Weight | 5 lb (2.26kg) | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 11.0 x 9.4 x 5.5" |
Rating66% users recommend this product to others. And what about you?
This product has already been rated by 85 owners. Add your rating and experience with the product.
