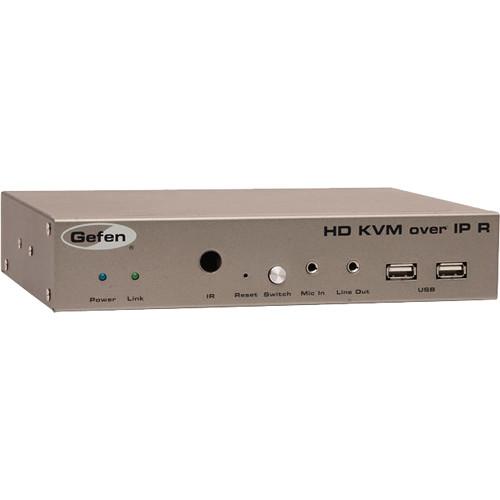

Product description The HD KVM Over IP Receiver with HDMI port, from Gefen, is designed for large scale remote workstation access and digital signage applications. The HD KVM Over IP extends HDMI, USB, two-way analog audio, RS-232, and IR over a Gigabit Local Area Network. Resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA) are supported. The Receiver can be automatically or manually configured to unique IP addresses to allow the connection of multiple units to the same network. Multiple receiver units can simultaneously connect to any sender unit within the network, regardless of video type, to create a virtual cross-point matrix of 256 senders and up to 65,000 units total.When using HDCP-encrypted content, only HDMI senders and receiver units can accept and display the content. Each receiver unit has a built-in Ethernet switch and two additional RJ-45 Ethernet ports to allow for the connection of computers and other IP-enabled devices. The connection is made using Cat5e or better cables. Each cable run can be up to 330 feet in length. USB 2.0 data rates of up to 480 Mbps are supported, in addition to USB 1.1 backward compatibility. Each receiver unit provides two USB ports with up to 500mAh current draw per connector, providing access to keyboard, mouse, and other compatible devices. Bi-directional analog audio capability allows the sound to be transported between the sender and receiver units. The built-in mic pre-amp on the receiver unit ensures compatibility with a variety of microphones. IR commands from the receiver side can be extended to sources connected to any of the sender units. The RS-232 serial control can also be extended between each sender and receiver. The built-in web server interface is designed for easy configuration, set-up, and operation. Note: For multicast mode a gigabit switch is required. The gigabit switch must support 8k jumbo frame packets in order for multicast mode to operate. If your LAN is not dedicated to Gefen KVM-LAN products exclusively, then a managed switch is highly recommended. - Extends HDMI, USB, RS-232, bi-directional stereo analog audio, and IR over IP, using a Gigabit Local Area Network
- Supports resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA)
- Supported HDMI features: HDCP, Deep Color, LPCM 7.1 audio, Dolby TrueHD, and DTS-HD Master Audio, and lip-sync pass-through
- Supports 256 senders and a total of just over 65,000 units, depending on the network bandwidth and number of ports on your network
- USB 2.0 data rates up to 480 Mbps and backward-compatibility with USB 1.1
- Three-port gigabit Ethernet switch
- Field-upgradeable firmware via web server interface
- Locking power supply connectors
- 1 RU tall, half-rack width enclosures are rack-mountable using an adapter (# GEEXTRACK1U)
- Surface mounting brackets included
UPC: 845344092195 In the Box Gefen HD KVM Over IP Receiver (HDMI) L-Shaped Mounting Bracket with Screws 5 VDC Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen HD KVM Over IP Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-HDKVM-LAN-RX Specs | Maximum Pixel Clock | 165 MHz | | Video Output Connector | 1x HDMI type A, 19-pin, female, locking | | Mic Input | 3.5 mm mini-stereo jack | | Line Output | 3.5 mm mini-stereo jack | | USB Connectors | 2 x USB Type A, female | | RS-232 Connector | DB-9, male | | IR Extender | 3.5 mm mini-stereo jack | | Ethernet Connectors (Sender/Receiver) | 3 x RJ-45, shielded | | Switch Type | Tact-type | | Reset Button | Tact-type, recessed | | Indicators | Link: LED, green
Power: LED, blue | | Power Supply | 5 VDC, locking | | Power Consumption | 10 W max. | | Dimensions (W x H x D) | 8.4 x 1.7 x 4.5" (21.3 x 4.3 x 11.3 cm) | | Weight | 4.6 lb (2 kg) | | | | Package Weight | 3.4 lb | | Box Dimensions (LxWxH) | 13.3 x 8.3 x 3.7" |
