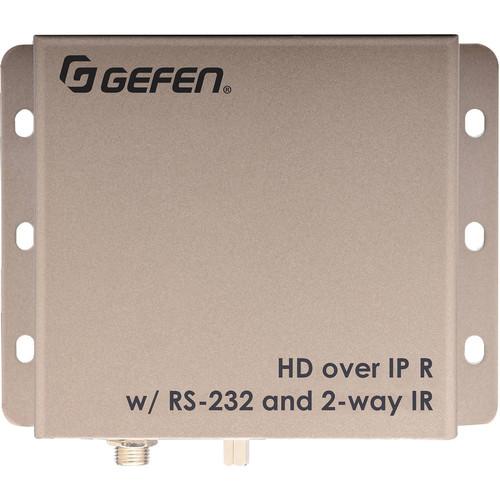

Product description The HD Over IP with RS-232 and 2-Way IR Receiver Unit from Gefen is a receiver which is designed to work with the EXT-HD2IRS-LAN-TX Sender (sold separately). The unit receives HDMI, RS-232, and bi-directional IR over a Gigabit Local Area Network and supports resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA), HDCP, Deep Color, 7.1 channel High Bit Rate digital audio, and lip-sync pass-through. A Cat 5e or higher cable is used for interconnecting the extender units; the cable run may be up to 330' long. To allow the connection of multiple senders and receivers to the same network, unique IP addresses can be automatically or manually configured. Multiple receiver units can simultaneously connect to any sender unit within the network including the Gefen KVM over LAN products with HDMI, DVI, or VGA video, to create a virtual cross-point matrix of just over 65,000 sender and receiver units, depending on the network bandwidth and number of ports on the network switch (sold separately).
IR control can be extended from sender to receiver and from receiver to sender, allowing the control of source units and displays remotely. The IR input ports on sender and receiver units can accommodate both the Gefen powered IR extender EXT-RMT-EXTIRN and electrical IR from automation control devices. RS-232 serial control can also be extended between each sender and receiver unit. The built-in web server interface makes control, set-up, and configuration simple and intuitive. When using multiple senders and receivers as a "virtual matrix," you can connect to any of the senders within the network by accessing the web interface of each receiver unit via a web browser on a mobile device or computer, or by using the Gefen KVM/Video over IP Keyboard Switching Controller software (available for download at Gefen site). This receiver and the EXT-HD2IRS-LAN-TX sender combine to create an HD over IP extender for large scale remote HD content access and digital signage applications.
For one sender to multiple receiver configurations, a Gigabit switch is required. The Gigabit switch must support 8k jumbo frame packets in order for multicast mode to operate; if your LAN is not dedicated to Gefen KVM-LAN products exclusively, then a managed switch is highly recommended. When using HDCP-encrypted content, only HDMI sender and receiver units can accept and display the content. - Receives HDMI, RS-232, and bi-directional IR from an EXT-HD2IRS-LAN-TX sender (sold separately) over IP, using a Gigabit Local Area Network
- Supports resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA)
- Supports HDCP, Deep Color, LPCM 7.1 audio, Dolby TrueHD & DTS-HD master audio, lip-sync pass-through
- Built-in web interface facilitates intuitive set up and operation
- Mode selector function in web interface for sharpness or motion optimization of image
- Versatile IR In/Ext ports work with powered Gefen IR extenders and electrical IR from automation control devices
- Field-upgradable firmware via web server interface
- RS-232 to DB-9 adapter included
- A network can be configured with a total of just over 65,000 sender and receiver units, depending on the bandwidth and number of ports on your switch
- Any of the senders within a network can be accessed by any receiver unit via a web browser on a mobile device or computer, or by using the Gefen KVM/Video over IP Keyboard Switching Controller software (available for download at the Gefen site)
UPC: 845344070810 In the Box Gefen HD Over IP with RS-232 and 2-Way IR Receiver Unit IR Extender Module Mini Phone to DB9 Adapter, Male to Male 5 VDC Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen HD Over IP with RS-232 and 2-Way IR Receiver Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-HD2IRS-LAN-RX Specs | Transmission Range | 330' (100 m) max. over Cat 5e or higher | | Resolution | Up to 1080p Full HD and 1920 x 1200 (WUXGA) | | Maximum Pixel Clock | 165 MHz | | TMDS Clock Frequency | 225 MHz | | Connectors | 1 x 19-pin HDMI Type A female locking, video output
1 x 3.5 mm mini-stereo jack, RS-232 (DB-9 adapter included)
1 x 3.5 mm mini-mono jack, IR emitter
1 x 3.5 mm mini-stereo jack, IR extender
1 x RJ-45 shielded, Ethernet
1 x 5 VDC locking, power | | Control | 1 x Reset button, tact-type recessed | | Indicators | 1 x LED amber, link
1 x LED green, power | | Power Supply | 5 VDC locking | | Power Consumption | 4 W maximum | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Operating Humidity | 10 to 90% RH, non-condensing | | Storage Temperature & Humidity | -4 to 185°F (-20 to 85°C)
0 to 95% RH, non-condensing | | MTBF | 50,000 hours | | Dimensions | 4.3 x 1.0 x 3.2" (110 x 26 x 80 mm) | | Weight | 0.4 lb (0.2 kg) | | | | Package Weight | 1.52 lb | | Box Dimensions (LxWxH) | 11.85 x 6.1 x 4.2" |
