User Manual for Gefen HD Video Wall Controller Click to enlarge the picture
Contents of the user manual for the Gefen HD Video Wall Controller
- Product category: Multiviewer Processors Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Multiviewer Processors
 |
User manual for the Gefen HD Video Wall Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|

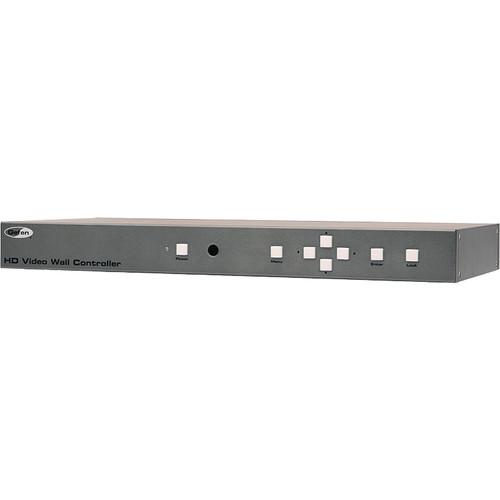

Product description The HD Video Wall Controller from Gefen takes a single HDMI source at up to 1080p resolution and splits it into four quadrants, thus providing a simple way for you to create a 2 x 2 video wall without investing in special video wall-capable displays. There are four HDMI outputs, with each output assigned to one of the four displays in the group. Because the resolution of the incoming signal is effectively quartered, the HD Video Wall Controller can also scale each of the outputs back up to 1080p so that the displays will receive a signal in their native resolution. HDCP is supported, meaning you can even pass copy-protected sources such as Blu-ray DVDs. Video walls are suitable for a host of applications that require an outsized display where using a projector isn't an option, including entertainment, digital signage, retail outlets, clubs, trade shows, control centers, building lobbies, and more.

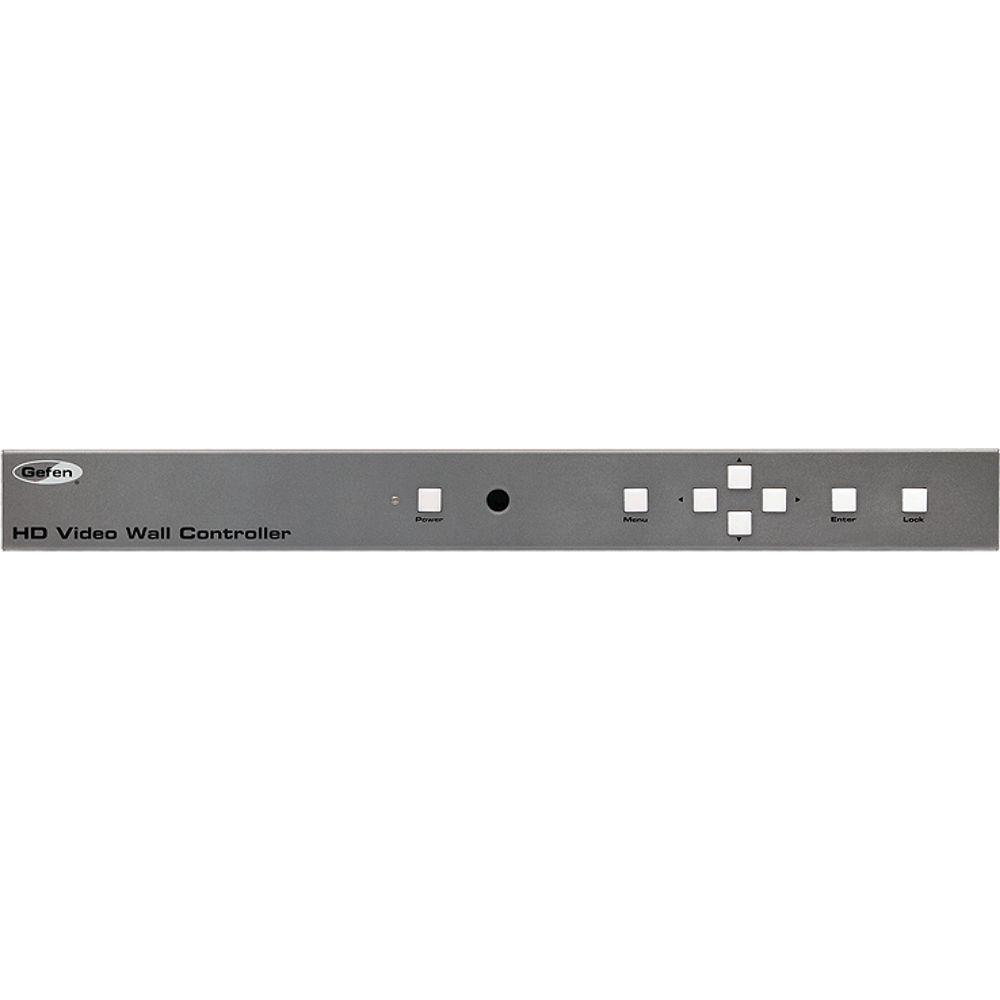

Both local and remote control is possible with the HD Video Wall Controller. Front panel buttons and an on screen display allow settings to be changed locally at the device. Where line-of-sight communication is possible, there is an IR remote included. An IR extender port means you can even extend the IR signal over wire for non-line-of-sight scenarios by employing an IR extender kit sold separately. For remote and offsite management there is RS-232 and an Ethernet port. The device features a built-in Web server with Telnet and UDP support for control across and IP network or even the Internet. - Create a 2x2 video wall from any HDMI source, using four HDTV displays
- Supports input and Output resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA)
- Advanced Bezel Compensation feature provides compatibility with virtually any screen frame width, and allows for accurate display of the image
- Field-upgradeable firmware via web server interface
- USB port (reserved for future product enhancements)
- Locking HDMI and power supply connectors
- 1RU rackmountable form factor with rack ears included
UPC: 845344042329 In the Box Gefen HD Video Wall Controller 6' Locking HDMI Cable (CAB-HD-LCK-06MM) DB-9 Serial Cable (M-F, 6') fbtuwddryreabu IR Extender Module IR Remote Control (RMT-HD-VWC-144) 12V DC Power Supply (EXT-PS12U3AIP-LP) Rack Ears (EXT-RACK-19-GRY) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen HD Video Wall Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

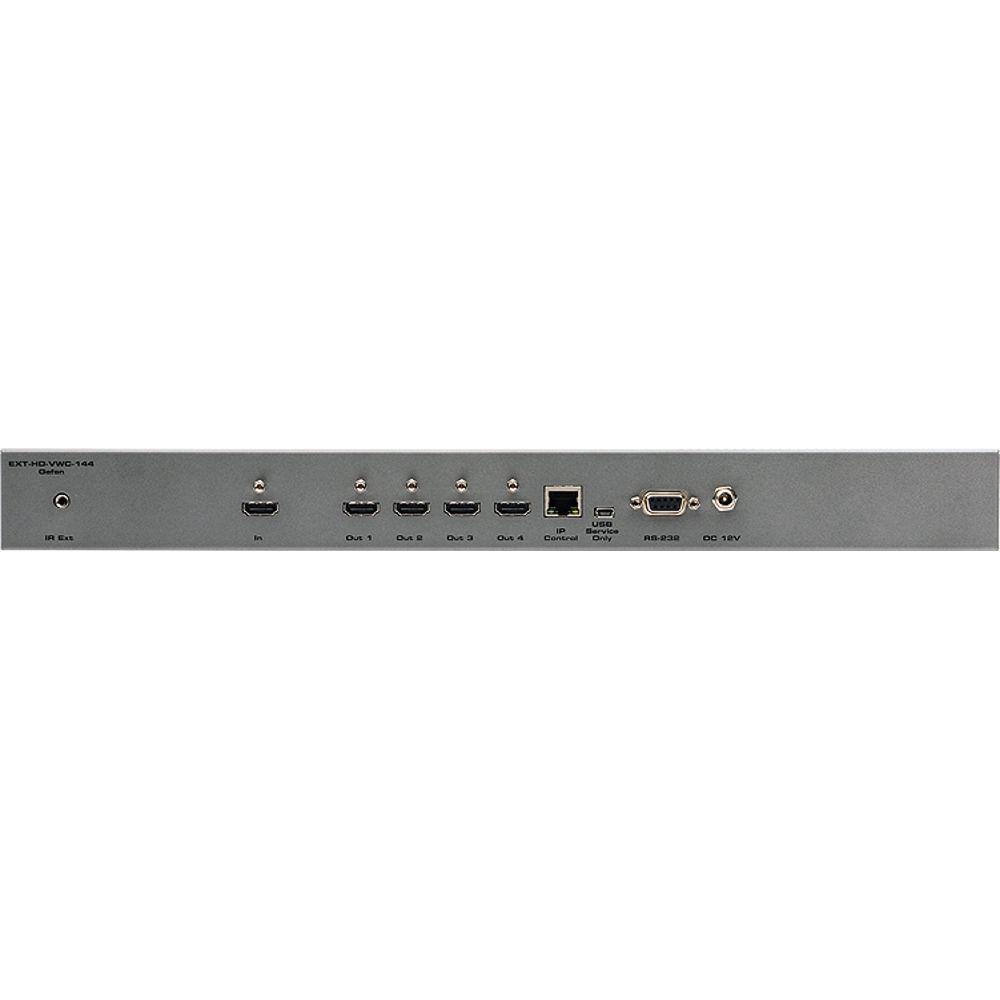

Technical parametersGefen EXT-HD-VWC-144 Specs | Input | 1 x HDMI (locking) | | Output | 4 x HDMI (locking) | | HDCP Compliant | Yes | | Control | 1 x RS-232 on DB-9 female
1 x Ethernet on RF-45 (Web server, Telnet, UDP)
1 x IR extender port
IR remote
Front panel buttons for local control | | USB | 1 x USB mini type B (for future product enhancements) | | LED Indicator | 1 x Red LED | | Power Requirements | 12 VDC (locking connector) | | Power Consumption | Maximum: 24 W | | Dimensions | 16.9 x 1.7 x 7.9" / 430 x 42 x 200 mm | | Weight | 7 lb / 3.2 kg | | | | Package Weight | 8.35 lb | | Box Dimensions (LxWxH) | 20.0 x 12.362 x 4.724" |
