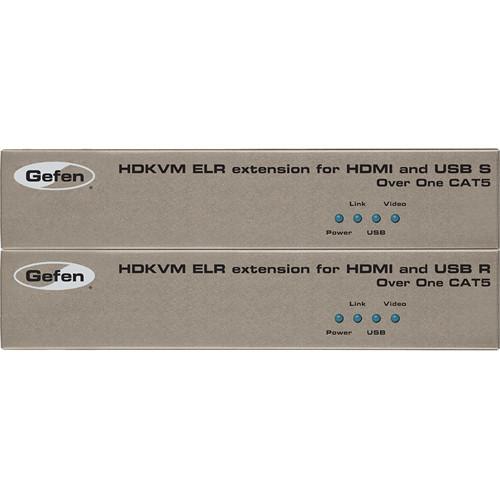

Product description The Gefen HDKVM ELR Extender for HDMI and USB over one CAT-5 extends HDMI, KVM (keyboard, video, and mouse), and USB over a distance up to 330’ (100m) using one CAT-5e cable. Hi-definition resolutions up to 1920 x 1200 and USB 2.0 are supported. The Receiver unit connects to an HDTV display using HDMI and also allows the connection of up to 3 USB devices, providing access to printers, scanners, cameras, external storage media, digital Signage, and automated control systems.This Extender uses Gefen ELR (Extra Long Range) Technology based on HDBaseT, allowing HDMI and USB signals to travel along the same CAT-5e cable, reducing cabling costs in addition to providing an easy and reliable installation. Note: This product is Ultra HD 4K x 2K compliant. - Extends HDMI and USB up to 330' (100m) over one CAT-5 cable
- Supports resolutions up to Ultra HD 4K x 2K and 1080p Full HD
- Supports 100 Mb/s using USB 2.0
- Backward-compatible with USB 1.1
- EDID management for rapid integration of source and display devices
- Field-upgradeable via mini-USB port
- Supports any Operating System (OS)
UPC: 845344056319 In the Box Gefen HDKVM ELR Extender for HDMI and USB over One CAT-5 HDMI Copper Cable - Mono-LOK (6') USB Cable A to B (6') 2 x 5VDC Locking Power Supply 2 x AC Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen HDKVM ELR Extender for HDMI and USB over One CAT-5 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

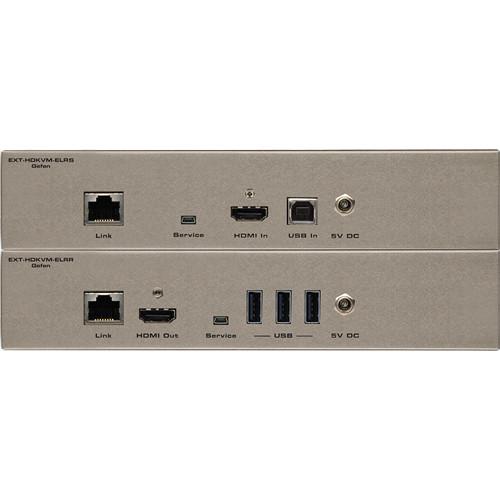

Technical parametersGefen EXT-HDKVM-ELR Specs | Maximum Pixel Clock | 300 MHz | | Video Input Connector | Sender: HDMI Type A, 19-pin, female, locking | | Video Output Connector | Receiver: HDMI Type A, 19-pin, female, locking | | USB Connector | Sender: Type B, femaleReceiver: 3 x Type A, female | | Link Connector | Sender / Receiver: RJ-45, shielded | | Other Connectors | Service Connector for Field Upgrades (Sender / Receiver): USB mini-B | | Power Supply | Sender / Receiver: 5 VDC, locking | | Power Consumption | Sender / Receiver: 10 W (maximum) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions (W x H x D) | 8.50 x 1.75 x 4.50" (21.59 x 4.45 x 11.43 cm) | | | | Package Weight | 5.4 lb | | Box Dimensions (LxWxH) | 19.3 x 12.3 x 4.7" |
