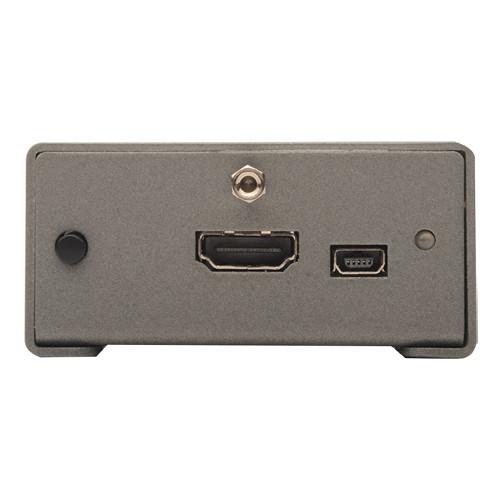

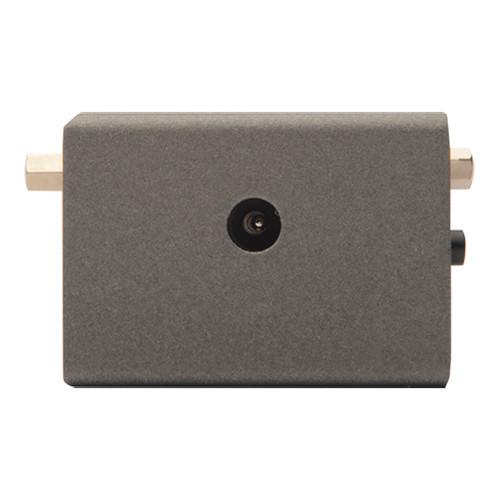

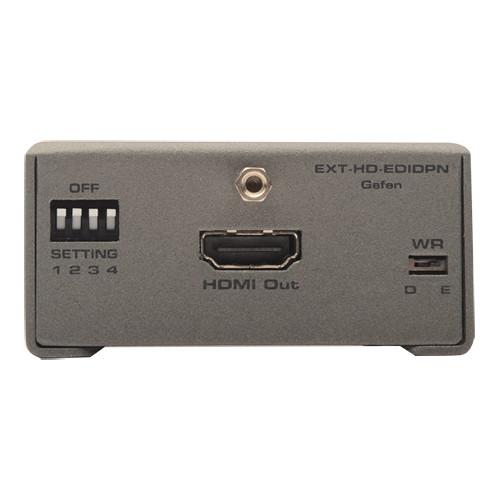

Product description The HDMI EDID Detective Plus from Gefen keeps HDMI sources and displays in sync. This device has been designed specifically to ensure that a connected high-definition source sends compatible audio and video signals without losing the EDID (Extended Display Identification Data). This is done by recording the HDMI display EDID and making it available to the high definition source reliably and on a continuous basis. With DDC re-clocking technology, the reliability of HDCP handshaking is improved, ensuring that the high definition source always receives the correct EDID. Using the Gefen EDID Tool+ PC software or terminal emulation via USB, the installer can also manipulate/modify the EDID data to meet installation-specific requirements and resolve system-specific compatibility issues. The device has been designed for quick and easy programming and installation. UPC: 845344099118 In the Box Gefen HDMI EDID Detective Plus 1.0' (30.4cm) Locking HDMI Cable 6.0' (182.8cm) Mini USB to USB Cable 5 VDC Power Supply Limited 2-Year Warranty Brochure PDF 323.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen HDMI EDID Detective Plus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-HD-EDIDPN Specs | Maximum Pixel/TMDS Clock | Up to 225 MHz Pass-through. Actual performance depends on cable length and quality | | EDID Memory Size | 256 bytes | | Resolution Support | 1080p Full HD
1920 x 1200 (WUXGA) | | Port Connectivity | Video Connector
Input: 1 x HDMI Type A 19-pin, female, locking
Output: 1 x HDMI Type A 19-pin, female, locking
USB Connector
1 x Mini-B USB | | | | EDID Write-Protect Switch | 1 x Slide type | | EDID Program Button | 1 x Tact type | | EDID Programming Switches | 3 x DIP type | | HDCP Pass-through/Block Switch | 1 x DIP type | | | | Power Supply | 5 VDC | | Power Consumption | Maximum: 5 W | | | | Dimensions (W x H x D) | 2.7 x 1.3 x 1.8" (68.5 x 160.0 x 45.7 mm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 1.09 lb | | Box Dimensions (LxWxH) | 9.55 x 6.25 x 2.9" |
