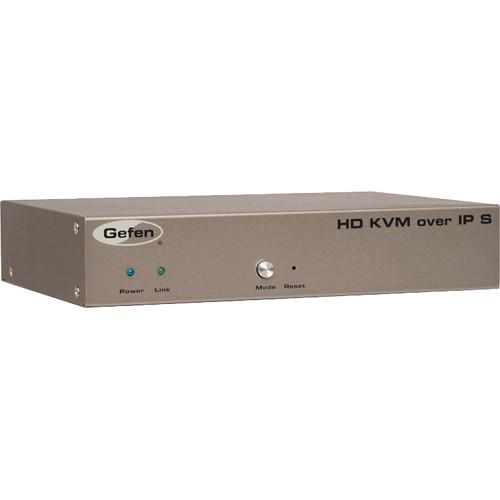

User Manual for Gefen HDMI KVM over IP Transmitter Click to enlarge the picture
Contents of the user manual for the Gefen HDMI KVM over IP Transmitter
- Product category: Video Extenders & Repeaters Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Video Extenders & Repeaters
|
User manual for the Gefen HDMI KVM over IP Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description The Gefen HDMI KVM over IP Transmitter transmits an HDMI signal, along with USB, RS-232, and two-way audio, 328 ft over CAT5/6 to any Gefen KVM Receiver, sold separately. It supports input/output resolutions up to 1080p and 1920 x 1200 WUXGA. Using an optional Gigabit switch, you can configure a multipoint matrix of up to 256 transmitters and 65,000 transmitter/receiver units in total. The Gigabit switch must support 8k jumbo frame packets in order to support multipoint configurations. A free web server interface is available on the Gefen website for quick system set-ups and firmware upgrades.
Two-way audio consists of a 3.5mm line in and line out. The transmitter automatically blocks the HDMI embedded audio when separate audio is connected to the line in. The line out is for outputting and recording a mic input coming back from the receiving end. An IR port is available for optional IR control. 6 ft HDMI, USB A to B, and DB-9 RS-232 cables, an L-shaped mounting bracket, and a locking power supply are included. - Key Features
-
- Transmits HDMI, USB, RS-232, and two-way audio 328 ft over CAT5/6
- Supports resolutions up to 1080p and 1920 x 1200
- Supports Gigabit switches for up to a 65,000 unit transmitter/receiver matrix
- 3.5mm audio line in for connecting independent audio
- 3.5mm audio line out for recording mic inputs
- RS-232 port for optional serial control
- IR port for optional IR control
- Tact-type Mode button for image sharpness and motion optimization
- Rotary-type ID Selector switch
- Includes HDMI, USB, and DB-9 cables
- Includes L-shaped mounting bracket and locking power supply
- 1RU, half-rack wide, rack-mountable using an optional Gefen EXT-RACK-1U tray
UPC: 845344088778 In the Box Gefen HDMI KVM over IP Transmitter 5V DC Locking Power Supply Locking HDMI Cable Male/Male (6 ft / 1.8 m) USB Cable Type A to B (6 ft / 1.8 m) DB-9 Cable (6 ft / 1.8 m) L-Shaped Mounting Bracket with Screws Quick-Start Guide 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen HDMI KVM over IP Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-HDKVM-LAN-TX Specs | Maximum Pixel Clock | 165 MHz | | Input | 1x HDMI Type A 19-pin, female, locking
1x 3.5 mm mini-stereo audio line in
1x RS-232 DB-9, female | | Output | 1x RJ-45, shielded
1x 3.5 mm mini-stereo audio line out
1x 3.5 mm mini-mono for optional IR control | | USB Host Interface | 1x USB Type B, female, 500 mA | | Resolutions Supported | Up to 1080p and 1920 x 1200 | | Transmission Distance | 328 ft (100 m) by CAT5/6 | | Power Supply | 5 VDC, locking (included) | | Power Consumption | 10 W (max) | | Dimensions | 8.4 x 1.7 x 4.5" (21.3 x 4.3 x 11.3 cm) | | Weight | Approx. 2 lb (.9 kg) | | | | Package Weight | 4.345 lb | | Box Dimensions (LxWxH) | 14.3 x 11.85 x 3.8" |
