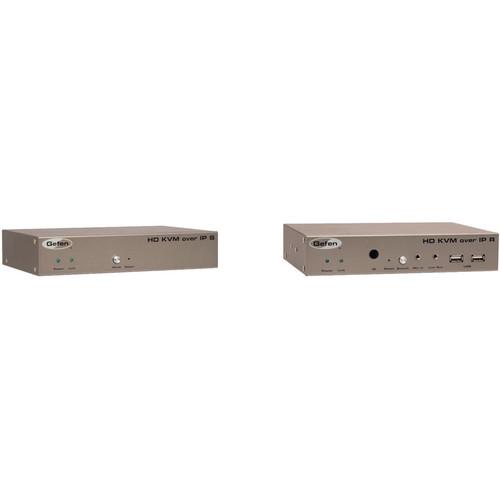

Product description The Gefen HDMI KVM over IP Transmitter & Receiver Kit allows you to extend an HDMI signal, along with USB, RS-232, and two-way audio, up to 328 ft over a single Cat5e or better cable, in resolutions up to 1080p and 1920 x 1200 WUXGA. Two-way audio will allow you to send an audio signal to the receiver and mic signal back to the transmitter. Using an optional Gigabit switch, you can configure a multipoint matrix of up to 256 transmitters and 65,000 transmitter/receiver units in total. (The Gigabit switch must support 8K jumbo frame packets in order to support multipoint configurations.) - Gefen HDMI KVM over IP Transmitter The Gefen HDMI KVM over IP Transmitter transmits an HDMI signal, along with USB, RS-232, and two-way audio, 328 ft over CAT5/6 to any Gefen KVM Receiver, sold separately. It supports input/output resolutions up to 1080p and 1920 x 1200 WUXGA. Using an optional Gigabit switch, you can configure a multipoint matrix of up to 256 transmitters and 65,000 transmitter/receiver units in total. The Gigabit switch must support 8k jumbo frame packets in order to support multipoint configurations. A free web server interface is available on the Gefen website for quick system set-ups and firmware upgrades.
Two-way audio consists of a 3.5mm line in and line out. The transmitter automatically blocks the HDMI embedded audio when separate audio is connected to the line in. The line out is for outputting and recording a mic input coming back from the receiving end. An IR port is available for optional IR control. 6 ft HDMI, USB A to B, and DB-9 RS-232 cables, an L-shaped mounting bracket, and a locking power supply are included. - Key Features
-
- Transmits HDMI, USB, RS-232, and two-way audio 328 ft over CAT5/6
- Supports resolutions up to 1080p and 1920 x 1200
- Supports Gigabit switches for up to a 65,000 unit transmitter/receiver matrix
- 3.5mm audio line in for connecting independent audio
- 3.5mm audio line out for recording mic inputs
- RS-232 port for optional serial control
- IR port for optional IR control
- Tact-type Mode button for image sharpness and motion optimization
- Rotary-type ID Selector switch
- Includes HDMI, USB, and DB-9 cables
- Includes L-shaped mounting bracket and locking power supply
- 1RU, half-rack wide, rack-mountable using an optional Gefen EXT-RACK-1U tray
UPC: 845344088778 Gefen HD KVM Over IP Receiver (HDMI) The HD KVM Over IP Receiver with HDMI port, from Gefen, is designed for large scale remote workstation access and digital signage applications. The HD KVM Over IP extends HDMI, USB, two-way analog audio, RS-232, and IR over a Gigabit Local Area Network. Resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA) are supported. The Receiver can be automatically or manually configured to unique IP addresses to allow the connection of multiple units to the same network. Multiple receiver units can simultaneously connect to any sender unit within the network, regardless of video type, to create a virtual cross-point matrix of 256 senders and up to 65,000 units total.When using HDCP-encrypted content, only HDMI senders and receiver units can accept and display the content. Each receiver unit has a built-in Ethernet switch and two additional RJ-45 Ethernet ports to allow for the connection of computers and other IP-enabled devices. The connection is made using Cat5e or better cables. Each cable run can be up to 330 feet in length. USB 2.0 data rates of up to 480 Mbps are supported, in addition to USB 1.1 backward compatibility. Each receiver unit provides two USB ports with up to 500mAh current draw per connector, providing access to keyboard, mouse, and other compatible devices. Bi-directional analog audio capability allows the sound to be transported between the sender and receiver units. The built-in mic pre-amp on the receiver unit ensures compatibility with a variety of microphones. IR commands from the receiver side can be extended to sources connected to any of the sender units. The RS-232 serial control can also be extended between each sender and receiver. The built-in web server interface is designed for easy configuration, set-up, and operation. Note: For multicast mode a gigabit switch is required. The gigabit switch must support 8k jumbo frame packets in order for multicast mode to operate. If your LAN is not dedicated to Gefen KVM-LAN products exclusively, then a managed switch is highly recommended. - Extends HDMI, USB, RS-232, bi-directional stereo analog audio, and IR over IP, using a Gigabit Local Area Network
- Supports resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA)
- Supported HDMI features: HDCP, Deep Color, LPCM 7.1 audio, Dolby TrueHD, and DTS-HD Master Audio, and lip-sync pass-through
- Supports 256 senders and a total of just over 65,000 units, depending on the network bandwidth and number of ports on your network
- USB 2.0 data rates up to 480 Mbps and backward-compatibility with USB 1.1
- Three-port gigabit Ethernet switch
- Field-upgradeable firmware via web server interface
- Locking power supply connectors
- 1 RU tall, half-rack width enclosures are rack-mountable using an adapter (# GEEXTRACK1U)
- Surface mounting brackets included
UPC: 845344092195 In the Box - HDMI KVM over IP Transmitter wqdcucsuxvdvtxbuxbbzbasdcsayvc
- 5V DC Locking Power Supply
- Locking HDMI Cable Male/Male (6 ft / 1.8 m)
- USB Cable Type A to B (6 ft / 1.8 m)
- DB-9 Cable (6 ft / 1.8 m)
- L-Shaped Mounting Bracket with Screws
- Quick-Start Guide
- 2-Year Limited Warranty
- HD KVM Over IP Receiver (HDMI)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen HDMI KVM over IP Transmitter & Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Gefen HDMI KVM over IP Transmitter
| Maximum Pixel Clock | 165 MHz | | Input | 1x HDMI Type A 19-pin, female, locking
1x 3.5 mm mini-stereo audio line in
1x RS-232 DB-9, female | | Output | 1x RJ-45, shielded
1x 3.5 mm mini-stereo audio line out
1x 3.5 mm mini-mono for optional IR control | | USB Host Interface | 1x USB Type B, female, 500 mA | | Resolutions Supported | Up to 1080p and 1920 x 1200 | | Transmission Distance | 328 ft (100 m) by CAT5/6 | | Power Supply | 5 VDC, locking (included) | | Power Consumption | 10 W (max) | | Dimensions | 8.4 x 1.7 x 4.5" (21.3 x 4.3 x 11.3 cm) | | Weight | Approx. 2 lb (.9 kg) | | | | Box Dimensions (LxWxH) | 14.3 x 11.85 x 3.8" | - Gefen HD KVM Over IP Receiver (HDMI)
| Maximum Pixel Clock | 165 MHz | | Video Output Connector | 1x HDMI type A, 19-pin, female, locking | | Mic Input | 3.5 mm mini-stereo jack | | Line Output | 3.5 mm mini-stereo jack | | USB Connectors | 2 x USB Type A, female | | RS-232 Connector | DB-9, male | | IR Extender | 3.5 mm mini-stereo jack | | Ethernet Connectors (Sender/Receiver) | 3 x RJ-45, shielded | | Switch Type | Tact-type | | Reset Button | Tact-type, recessed | | Indicators | Link: LED, green
Power: LED, blue | | Power Supply | 5 VDC, locking | | Power Consumption | 10 W max. | | Dimensions (W x H x D) | 8.4 x 1.7 x 4.5" (21.3 x 4.3 x 11.3 cm) | | Weight | 4.6 lb (2 kg) | | | | Box Dimensions (LxWxH) | 13.3 x 8.3 x 3.7" |
