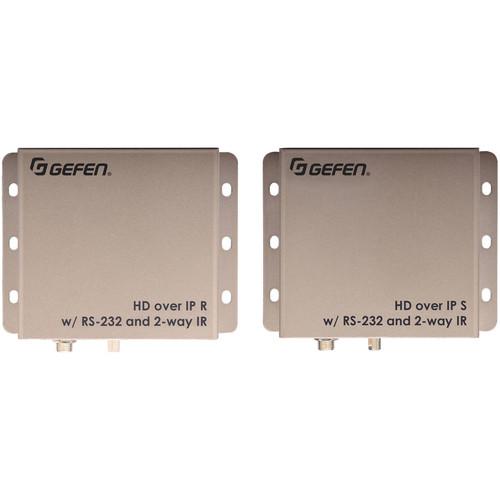

User Manual for Gefen HDMI over IP Transmitter & Receiver Kit Click to enlarge the picture
Contents of the user manual for the Gefen HDMI over IP Transmitter &
- Product category: Video Extenders & Repeaters Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Video Extenders & Repeaters
|
User manual for the Gefen HDMI over IP Transmitter & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description This B&H Kit includes an HDMI over IP Transmitter and corresponding HDMI over IP Receiver, from Gefen. It allows you to extend an HDMI signal, along with RS-232 and two-way IR, up to 328 ft over a single Cat5e or higher cable, in resolutions up to 1080p and 1920 x 1200 WUXGA. Using an optional Gigabit switch, you can configure a multipoint matrix of up to 256 transmitters and 65,000 transmitter/receiver units in total. (The Gigabit switch must support 8K jumbo frame packets in order to support multipoint configurations.) - Gefen HD Over IP with RS-232 and 2-Way IR Receiver Unit The HD Over IP with RS-232 and 2-Way IR Receiver Unit from Gefen is a receiver which is designed to work with the EXT-HD2IRS-LAN-TX Sender (sold separately). The unit receives HDMI, RS-232, and bi-directional IR over a Gigabit Local Area Network and supports resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA), HDCP, Deep Color, 7.1 channel High Bit Rate digital audio, and lip-sync pass-through. A Cat 5e or higher cable is used for interconnecting the extender units; the cable run may be up to 330' long. To allow the connection of multiple senders and receivers to the same network, unique IP addresses can be automatically or manually configured. Multiple receiver units can simultaneously connect to any sender unit within the network including the Gefen KVM over LAN products with HDMI, DVI, or VGA video, to create a virtual cross-point matrix of just over 65,000 sender and receiver units, depending on the network bandwidth and number of ports on the network switch (sold separately).
IR control can be extended from sender to receiver and from receiver to sender, allowing the control of source units and displays remotely. The IR input ports on sender and receiver units can accommodate both the Gefen powered IR extender EXT-RMT-EXTIRN and electrical IR from automation control devices. RS-232 serial control can also be extended between each sender and receiver unit. The built-in web server interface makes control, set-up, and configuration simple and intuitive. When using multiple senders and receivers as a "virtual matrix," you can connect to any of the senders within the network by accessing the web interface of each receiver unit via a web browser on a mobile device or computer, or by using the Gefen KVM/Video over IP Keyboard Switching Controller software (available for download at Gefen site). This receiver and the EXT-HD2IRS-LAN-TX sender combine to create an HD over IP extender for large scale remote HD content access and digital signage applications.
For one sender to multiple receiver configurations, a Gigabit switch is required. The Gigabit switch must support 8k jumbo frame packets in order for multicast mode to operate; if your LAN is not dedicated to Gefen KVM-LAN products exclusively, then a managed switch is highly recommended. When using HDCP-encrypted content, only HDMI sender and receiver units can accept and display the content. - Receives HDMI, RS-232, and bi-directional IR from an EXT-HD2IRS-LAN-TX sender (sold separately) over IP, using a Gigabit Local Area Network
- Supports resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA)
- Supports HDCP, Deep Color, LPCM 7.1 audio, Dolby TrueHD & DTS-HD master audio, lip-sync pass-through
- Built-in web interface facilitates intuitive set up and operation
- Mode selector function in web interface for sharpness or motion optimization of image
- Versatile IR In/Ext ports work with powered Gefen IR extenders and electrical IR from automation control devices
- Field-upgradable firmware via web server interface
- RS-232 to DB-9 adapter included
- A network can be configured with a total of just over 65,000 sender and receiver units, depending on the bandwidth and number of ports on your switch
- Any of the senders within a network can be accessed by any receiver unit via a web browser on a mobile device or computer, or by using the Gefen KVM/Video over IP Keyboard Switching Controller software (available for download at the Gefen site)
UPC: 845344070810 - Gefen HDMI Over IP with RS-232 and 2-Way IR Sender Unit The HDMI Over IP with RS-232 and 2-Way IR Sender Unit from Gefen is a sender (transmitter) which is designed to work with the EXT-HD2IRS-LAN-RX receiver (sold separately). The sender transmits HDMI, RS-232, and IR (bi-directional) over a Gigabit Local Area Network and supports resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA), HDCP, Deep Color, 7.1 channel High Bit Rate digital audio, and lip-sync pass-through. A Cat 5e or higher cable is used for interconnection and may run up to 330' long. To allow the connection of multiple senders and receivers to the same network, unique IP addresses can be automatically or manually configured. Multiple receiver units can simultaneously connect to any sender unit within the network to create a virtual cross-point matrix of just over 65,000 sender and receiver units, depending on the network bandwidth and number of ports on the network switch (sold separately).
IR control can be extended from sender to receiver and from receiver to sender, allowing the control of source units and displays remotely. The IR input ports on sender and receiver units can accommodate both the Gefen powered IR extender EXT-RMT-EXTIRN (sold separately) and electrical IR from automation control devices. RS-232 serial control can also be extended between each sender and receiver pair. The built-in web server interface makes control, set-up, and configuration simple and intuitive. When using multiple senders and receivers as a "virtual matrix," you can connect to any of the senders within the network by accessing the web interface of each receiver unit via a web browser on a mobile device or computer, or by using the Gefen KVM/Video over IP Keyboard Switching Controller software (available for download at Gefen site). This sender and the EXT-HD2IRS-LAN-RX receiver combine to create an HD over IP extender for large scale remote HD content access and digital signage applications.
For one sender to multiple receiver configurations, a Gigabit switch is required. The Gigabit switch must support 8k jumbo frame packets in order for multicast mode to operate; if your LAN is not dedicated to Gefen KVM-LAN products exclusively, then a managed switch is highly recommended. When using HDCP-encrypted content, only HDMI sender and receiver units can accept and display the content. - Transmits HDMI, RS-232, and bi-directional IR to an EXT-HD2IRS-LAN-RX receiver (sold separately) over IP, using a Gigabit Local Area Network
- Supports resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA)
- Supports HDCP, deep color, LPCM 7.1 audio, Dolby TrueHD & DTS-HD master audio, lip-sync pass-through
- Built-in web interface facilitates intuitive set up and operation
- Mode selector function in web interface for sharpness or motion optimization of image
- Versatile IR In/Ext ports work with powered Gefen IR extenders and electrical IR from automation control devices
- Field-upgradable firmware via web server interface
- RS-232 to DB-9 adapter included
- A network can be configured with a total of just over 65,000 sender and receiver units, depending on the bandwidth and number of ports on your switch
- Any of the senders within a network can be accessed by any receiver unit via a web browser on a mobile device or computer, or by using the Gefen KVM/Video over IP Keyboard Switching Controller software (available for download at the Gefen site)
UPC: 845344070322 In the Box - HD Over IP with RS-232 and 2-Way IR Receiver Unit ubdutcsbabfrycfbseustyvrsacztcyszx
- IR Extender Module
- Mini Phone to DB9 Adapter, Male to Male
- 5 VDC Power Supply
- Limited 2-Year Warranty
- HDMI Over IP with RS-232 and 2-Way IR Sender Unit
Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen HDMI over IP Transmitter & Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Gefen HD Over IP with RS-232 and 2-Way IR Receiver Unit
| Transmission Range | 330' (100 m) max. over Cat 5e or higher | | Resolution | Up to 1080p Full HD and 1920 x 1200 (WUXGA) | | Maximum Pixel Clock | 165 MHz | | TMDS Clock Frequency | 225 MHz | | Connectors | 1 x 19-pin HDMI Type A female locking, video output
1 x 3.5 mm mini-stereo jack, RS-232 (DB-9 adapter included)
1 x 3.5 mm mini-mono jack, IR emitter
1 x 3.5 mm mini-stereo jack, IR extender
1 x RJ-45 shielded, Ethernet
1 x 5 VDC locking, power | | Control | 1 x Reset button, tact-type recessed | | Indicators | 1 x LED amber, link
1 x LED green, power | | Power Supply | 5 VDC locking | | Power Consumption | 4 W maximum | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Operating Humidity | 10 to 90% RH, non-condensing | | Storage Temperature & Humidity | -4 to 185°F (-20 to 85°C)
0 to 95% RH, non-condensing | | MTBF | 50,000 hours | | Dimensions | 4.3 x 1.0 x 3.2" (110 x 26 x 80 mm) | | Weight | 0.4 lb (0.2 kg) | | | | Box Dimensions (LxWxH) | 11.85 x 6.1 x 4.2" | - Gefen HDMI Over IP with RS-232 and 2-Way IR Sender Unit
| Transmission Range | 330' (100 m) max. over Cat 5e or higher | | Resolution | Up to 1080p Full HD and 1920 x 1200 (WUXGA) | | Maximum Pixel Clock | 165 MHz | | TMDS Clock Frequency | 225 MHz | | Connectors | 1 x 19-pin HDMI Type A female locking, video input
1 x 3.5 mm mini-stereo jack, RS-232 (DB-9 adapter included)
1 x 3.5 mm mini-mono jack, IR emitter
1 x 3.5 mm mini-stereo jack, IR extender
1 x RJ-45 shielded, Ethernet | | Control | 1 x Reset button, tact-type recessed | | Indicators | 1 x LED amber, link
1 x LED green, power | | Power Supply | 5 VDC locking | | Power Consumption | 6 W maximum | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Operating Humidity | 10 to 90% RH, non-condensing | | Storage Temperature & Humidity | -4 to 185°F (-20 to 85°C)
0 to 95% RH, non-condensing | | MTBF | 50,000 hours | | Dimensions | 4.3 x 1.0 x 3.2" (110 x 26 x 80 mm) | | Weight | 0.4 lb (0.2 kg) | | | | Box Dimensions (LxWxH) | 11.8 x 6.1 x 4.2" |
